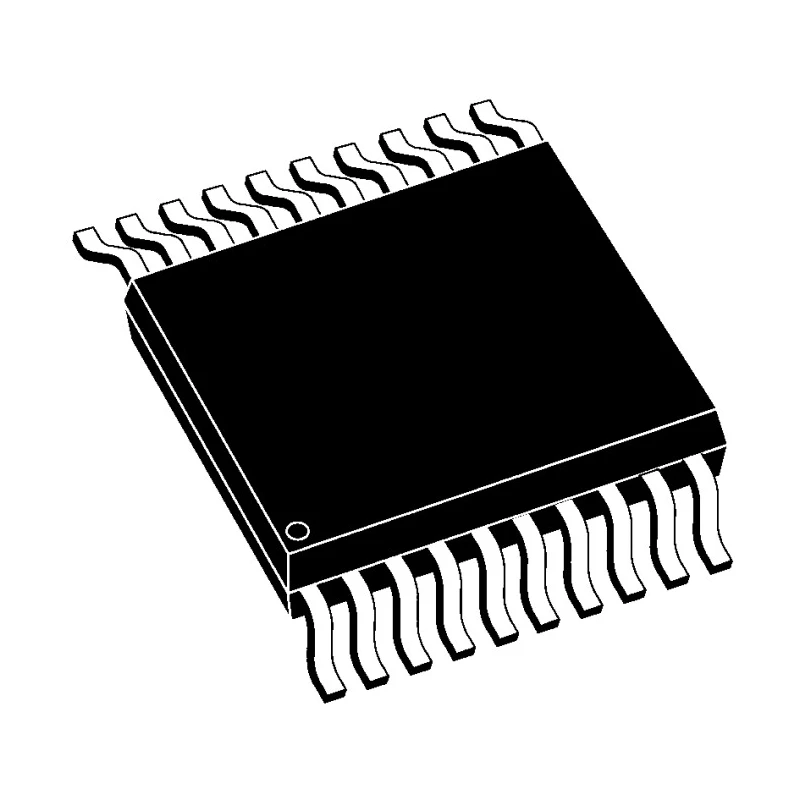

Microchip 8-Bit PIC18F Microcontroller, 48 MHz, 16 kB FLASH, 768-bit RAM, 20-Pin SSOP PIC18LF14K50-I/SS

Microchip PIC18LF14K50-I/SS is an advanced 8-bit PIC18F microcontroller designed for diverse electronic applications requiring robust and efficient microprocessor performance. Operating at a clock frequency up to 48 MHz, it offers rapid execution and improved processing power suitable for embedded systems and industrial automation.

This microcontroller integrates a substantial 16 kB of FLASH program memory combined with 768-bit RAM, providing ample space for complex program execution and fast access to data. It supports a data bus width optimized for an 8-bit PIC core and features 25 programmable input/output pins allowing flexible interface options for sensors, actuators, and communication modules.

Designed to operate at a minimum supply voltage of 1.8 V up to a maximum of 5.5 V, it provides a broad voltage range for varied power environments. The device dissipates a maximum power of 1 Watt, ensuring energy-efficient operation in embedded designs.

Functional enhancements include 11 10-bit Analog-to-Digital Converters (ADCs) enabling accurate analog input measurements, two analog comparators for evaluating signal thresholds, and four timers assisting in timing and control tasks. The microcontroller supports a RISC instruction set architecture, facilitating efficient code execution and ease of programming.

Physically, the PIC18LF14K50-I/SS is packaged in a compact 20-pin Small Shrink Outline Package (SSOP) with dimensions of 7.5 mm length, 5.6 mm width, and 1.85 mm height. This surface-mount device balances low profile and easy board-space management for modern PCB designs.

The robust operating temperature range from -40°C to 85°C ensures reliable functionality in challenging industrial and commercial environments. It complies with RoHS standards reflecting its non-toxic and environmentally friendly manufacturing processes.

Operates at a maximum clock frequency of 48 MHz for high-speed processing. Includes 16 kB program memory and 768-bit RAM for efficient data handling. Features 25 programmable I/Os for versatile interfacing capabilities. Supports a data bus width of 8 bits optimized for PIC core architecture.

Designed with low power consumption and a maximum power dissipation of 1 Watt. Equipped with 11 10-bit ADC channels for precise analog signal processing. Operating temperature range from -40°C to 85°C suitable for industrial environments.

Compact dimensions with 7.5 mm length, 5.6 mm width, and 1.85 mm height. Surface mount type SSOP package with 20 pins for space-efficient PCB design. Incorporates 2 analog comparators and 4 timers facilitating advanced control functions.

This microcontroller is ideally suited for industrial control systems, automotive electronics, consumer devices, and embedded system design requiring compact size and high functionality. Its flexible I/O capabilities and multiple timers make it an excellent choice for automation and signal-processing applications.

Explore more Microchip Microcontrollers and related electronic components on EnvMart to support your development and manufacturing needs.
