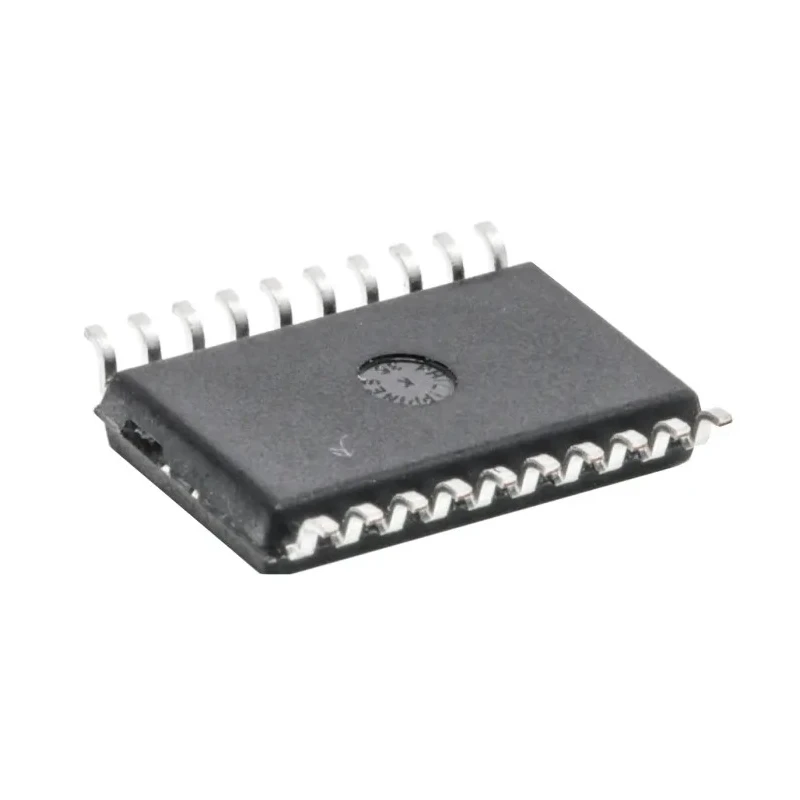

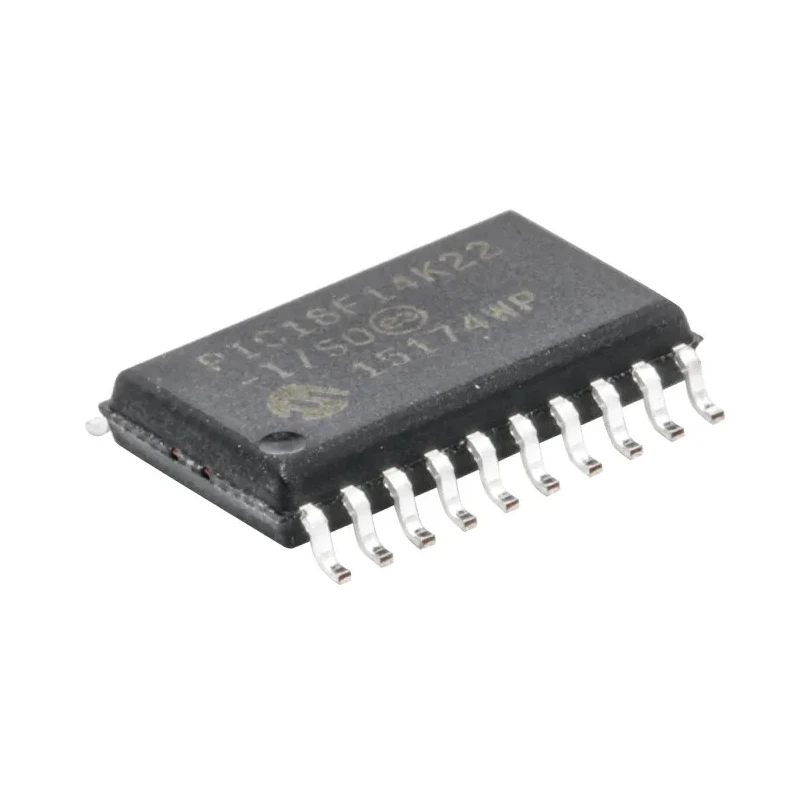

Microchip 8-bit PIC18F Microcontroller 64 MHz, 16 kB Flash, 512 bit RAM, 20-Pin SOIC PIC18F14K22-I/SO

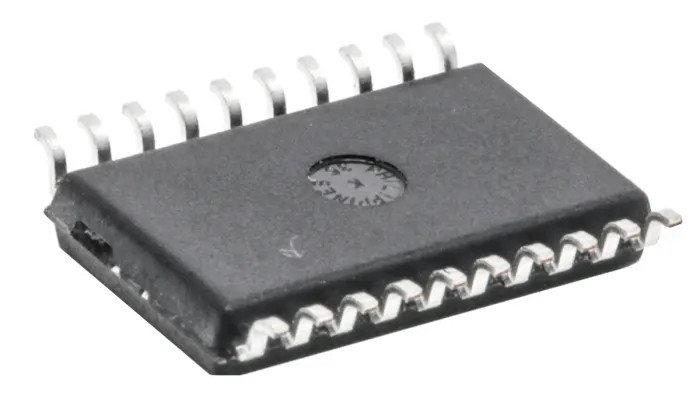

Microchip PIC18F14K22-I/SO is an 8-bit PIC microcontroller that delivers robust performance with a maximum CPU speed of 64 MHz. It comes in a compact 20-pin SOIC surface mount package suitable for embedded applications.

This microcontroller integrates 16 kB of flash program memory and 512 bit RAM, providing adequate space for code and data in control systems. It operates within a voltage range of 2 V to 5.5 V and supports a maximum power dissipation of 800 mW.

Its architecture features a 31-level hardware stack combined with 75 instructions, enhanced by an extended instruction set to improve functionality within compact footprints.

Peripheral features include twelve 10-bit analog-to-digital converter channels, two analog comparators, and multiple timers - three 16-bit and one 8-bit timers - that enable precise timing and control. Communication interfaces such as SPI and enhanced UART support serial data transmission, facilitating integration in complex systems.

The chip includes low-power modes like sleep mode with current as low as 34 nA and watchdog timer options, making it suitable for power-sensitive embedded environments. The device operates reliably across a wide industrial temperature range from -40°C to +85°C.

This device meets the requirements of a broad range of applications, including industrial control, instrumentation, and automation systems. This microcontroller features a PIC18 core with 31-level hardware stack and 75 instructions.

It includes 512 bit RAM and 16 kB Flash memory for program storage. Operates at supply voltages between 2V and 5.5V with a maximum power dissipation of 800 mW. Equipped with 12 channels of 10-bit ADC, 2 analogue comparators, and 4 timers.

Designed for low power consumption with sleep mode and watchdog timer capabilities. Operating temperature ranges from -40°C to 85°C for use in diverse environments. Includes communication interfaces such as SPI and enhanced USART for flexible connectivity.

Ideal for embedded systems requiring reliable, efficient 8-bit processing power. Explore the full range of Microchip Microcontrollers and components available at EnvMart for advanced electronic design and manufacturing.
