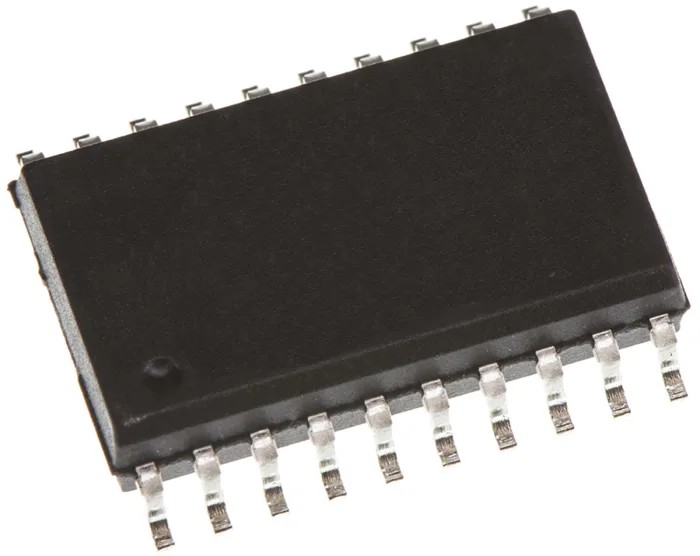

Microchip PIC24F 16 bit PIC Microcontroller 32 MHz 16kB FLASH 20-Pin SOIC PIC24F16KA101-I/SO

Microchip PIC24F16KA101-I/SO is a 16 bit PIC Microcontroller that operates at a maximum clock frequency of 32 MHz. This device integrates 16kB of FLASH program memory and 1.5kB of RAM, making it suitable for a variety of embedded processing applications.

The microcontroller features a 16-bit data bus width and offers an extensive set of peripherals including 9 channels of 10-bit ADCs, 2 analog comparators, and 3 timers, providing versatile functionalities for signal acquisition and timing control. It is housed in a compact 20-pin SOIC surface mount package with dimensions of 12.8mm length, 7.5mm width, and 2.35mm height, enabling easy integration into space-constrained designs.

Operating voltage ranges from 1.8V minimum to 3.6V maximum, complemented by a broad operating temperature range from -40°C to 85°C, which makes the device robust for industrial and commercial environment applications. The microcontroller follows the RISC instruction set architecture, optimizing performance efficiency.

This PIC microcontroller is compliant with RoHS standards, ensuring environmental safety and regulatory compliance. With 24 programmable I/O pins, it allows flexible interfacing options with other electronic components. The FLASH memory type program storage guarantees reliability and reprogrammability for development and production.

The Microchip PIC24F16KA101-I/SO is ideal for applications in embedded systems, automation, industrial control, and consumer electronics. It supports MSSP interface type for synchronous serial communication, enhancing communication capabilities with external devices.

Offers a 16-bit data bus width for efficient processing. Equipped with 1.5kB RAM for program execution. Supports a maximum clock frequency of 32 MHz for high-speed operations. Integrated 9 ADC channels with 10-bit resolution for analog signal processing.

Features 24 programmable I/O pins suitable for various interfacing applications. Operates within a voltage range of 1.8V to 3.6V ensuring power flexibility. Compact 20-pin SOIC surface mount package dimensioned at 12.8mm x 7.5mm x 2.35mm.

Includes 2 analog comparators and 3 timers for versatile timing and comparison tasks. Wide operating temperature range from -40°C to 85°C for industrial environments. Program memory implemented with FLASH technology allowing reliable code storage.
