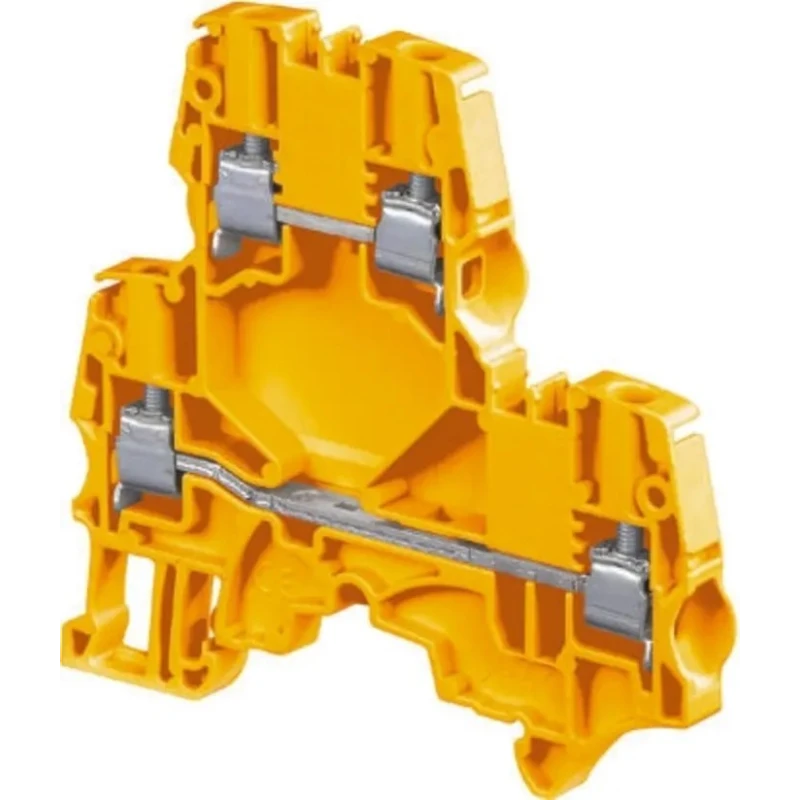

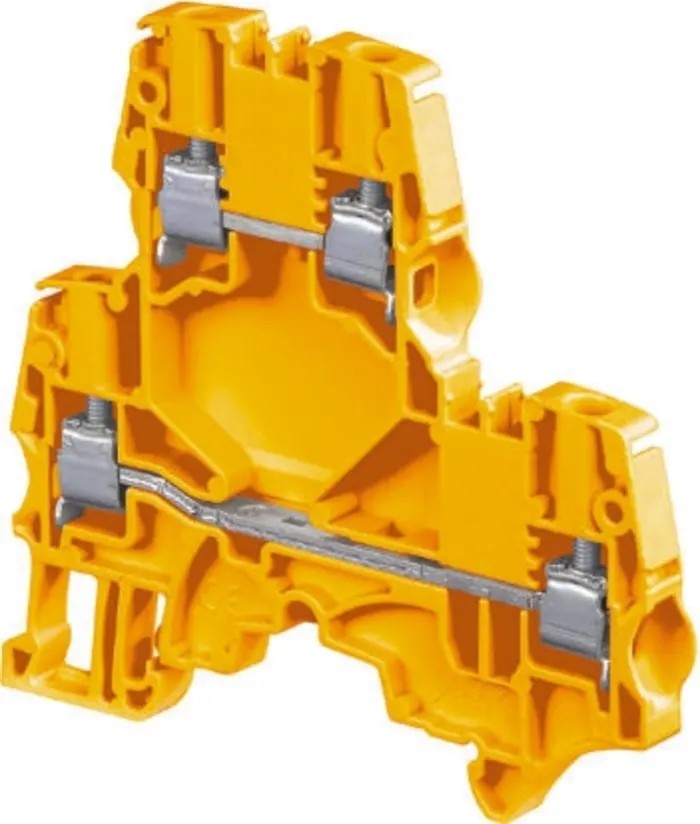

Entrelec Double Level Terminal Block ZS6-D2 Series Orange, 6mm² Cable CSA, 2-Level, Screw, ATEX 1SNK506230R0000

Free Delivery in India | Lowest Global Shipping Charges

Entrelec Double Level Terminal Block ZS6-D2 Series Orange, 6mm² Cable CSA, 2-Level, Screw, ATEX 1SNK506230R0000

Name: Entrelec Double Level Terminal Block ZS6-D2 Series Orange, 6mm² Cable CSA, 2-Level, Screw, ATEX 1SNK506230R0000
Brand: Entrelec
SKU: 125397



Category DIN Rail Terminal Blocks Brand Entrelec Condition New

Specifications

Country of Origin	France
Voltage	800V ac
Brand	Entrelec
Colour	Orange
Model	1SNK506230R0000
Series	ZS6-D2
Termination Type	Screw
Maximum Operating Temperature	40°C
Number of Levels	2
Minimum Operating Temperature	-5°C
Pitch	6mm
Hazardous Area Certification	ATEX
Standards/Approvals	ATEX, Bureau Veritas, CB, CE, CSA, cUL, DNV, RINA
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	10AWG
Cable CSA	6mm²
Terminal Block Current	40A

Key Features

The terminal block features a double level, 2-level design to maximize wiring density.
It supports a cable cross-sectional area of 6mm² with a pitch of 6mm.
The terminal offers a voltage rating of 800V AC and carries a current of 40A.
Termination is achieved by screw type, ensuring secure connections.
The product is built from flame retardant materials and is approved under ATEX for hazardous area certification.
Operating temperature ranges from -5°C to 40°C, suitable for various industrial environments.
The terminal block is finished in orange color for easy identification.
It carries international standards approvals including Bureau Veritas, CB, CE, CSA, cUL, DNV, and RINA.

Product Description

Entrelec 1SNK506230R0000 Double Level Terminal Block ZS6-D2 Series in orange offers a high-quality, compact electrical connection solution for industrial and commercial applications requiring a dense wiring configuration.

This 2-level DIN rail terminal block supports cable cross-sectional areas up to 6mm² with a 6mm pitch, enabling efficient double deck wiring with high current capacity rated at 40A and 800V AC voltage.

Constructed from rigid flame retardant materials, this terminal block ensures durability and safety in demanding environments. The screw termination guarantees secure and reliable wire connections. The asymmetrical profile design aids visual inspection from multiple directions and prevents reverse mounting, enhancing installation accuracy on 'top hat' DIN rails.

Operating temperatures range from -5°C to 40°C, making it suitable for many industrial, manufacturing, control, and electrical panels. It carries ATEX hazardous area certification along with multiple internationally recognized approvals including Bureau Veritas, CB, CE, CSA, cUL, DNV, and RINA, enabling worldwide usage.

The product is delivered in packs of 5 units and features a bright orange color for easy identification during electrical installation and maintenance. The terminal block maximizes wiring density with a double deck 2-level design.

Supports standard wire sizes from 24 AWG to 10 AWG with a cable CSA of 6mm². Screw termination type provides reliable and firm electrical connections. ATEX certification ensures safety in potentially explosive atmospheres.

Integrated international certifications enhance compliance and acceptance. Easy and error-free mounting on standard DIN rails thanks to its asymmetrical mounting profile. Durable flame retardant construction for long service life under industrial conditions.

Bright orange coloration supports quick visual identification. Suitable across industrial, electrical panel, automation, and control system applications. Packaged conveniently in sets of 5 pieces to suit installation needs.
