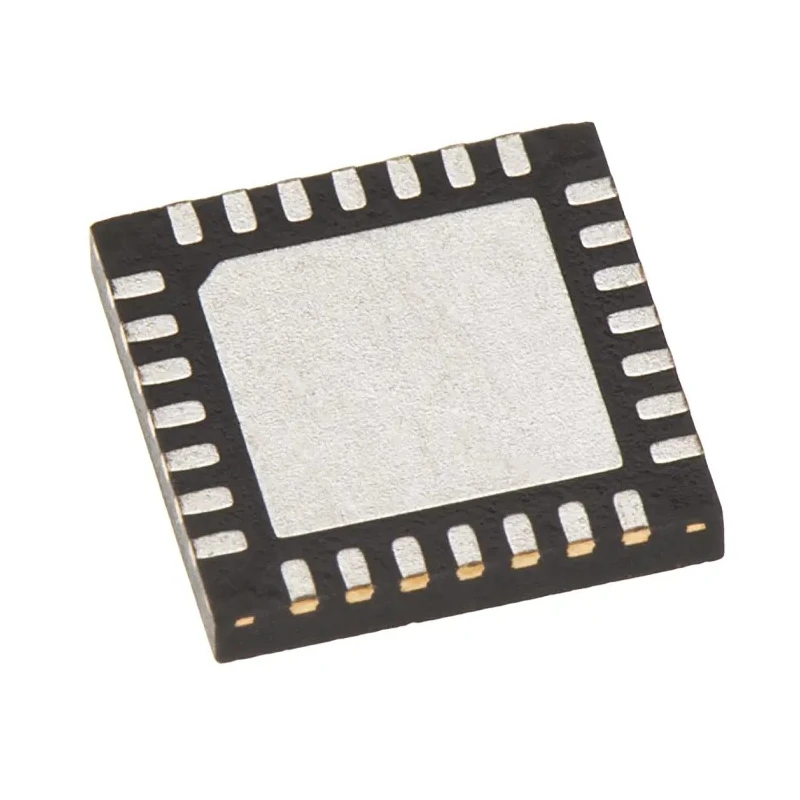

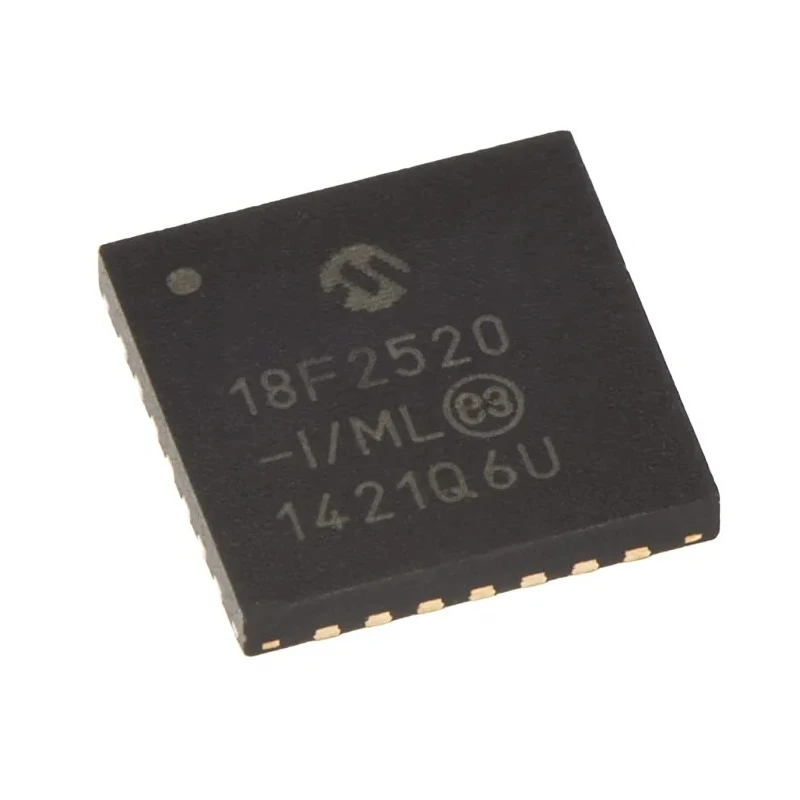

Microchip PIC18F2520-I/ML 8-bit PIC18F Microcontroller 40 MHz 32 kB FLASH 256B EEPROM 28-Pin QFN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 6mm |
| Model | PIC18F2520-I/ML |
| Width | 6mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.54kB |
| Interface Type | SPI |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 32, 256kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 33 |
| Analogue Comparators | 2 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 10 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum clock frequency of 40 MHz for efficient processing.
- 8-bit PIC18F architecture supports robust embedded applications.
- 32 kB program memory size with 256 bytes of EEPROM data memory.
- Surface mount 28-pin QFN package ensures compact and reliable installation.
- Supports SPI interface for versatile communication options.
- Features 33 programmable I/O pins for diverse device control.
- Operates within supply voltages from 1.8 V to 5.5 V ensuring wide compatibility.
- Includes 10 channels of 10-bit analog-to-digital converters for precise analog data processing.
Product Description
Microchip PIC18F2520-I/ML is a highly capable 8-bit PIC18F microcontroller designed for embedded systems demanding up to 40 MHz clock frequency and 32 kB flash memory. This microcontroller is housed in a compact 28-pin QFN package suitable for surface mounting on printed circuit boards.
Built on the RISC architecture, it features 75 instruction sets and a 31-level hardware stack that provide efficient control operations. The device core implements nanoWatt technology to enable power-conscious embedded designs, suited for portable and low-power applications.
Key peripherals include a SPI interface, 33 programmable input/output pins, 10 channels of 10-bit ADC inputs, two analog comparators, and multiple 8- and 16-bit timers, facilitating complex control and measurement functions in applications such as industrial automation, consumer electronics, and automotive control systems.
The device supports on-chip memory with 32 kB FLASH program memory, 1.54 kB RAM, and 256 bytes EEPROM, providing flexible storage for code and data. Operating voltage ranges from 1.8 V to 5.5 V with maximum power dissipation of 1 W, allowing integration into varied power environments.
Environmental tolerance from -40°C to 85°C and the availability of extended features like brown-out reset, watchdog timer, and in-circuit serial programming make it suitable for rugged and demanding operational scenarios.
Operates at 40 MHz maximum clock speed. Embedded 10-bit ADC with 10 channels for analog signal conversion. 33 programmable input/output pins for device interfacing. Low power consumption with nanoWatt technology. Multiple timers and PWM modules for precise timing control.
Support for SPI serial communication interface. Compact 28-pin QFN footprint for space-constrained designs. Wide operating voltage range of 1.8 V to 5.5 V. Robust temperature range for industrial use. Programming via in-circuit serial programming (ICSP) and debugging options.
This microcontroller is ideal for embedded development in industrial, automotive, consumer electronics, and home automation fields. Its combination of memory size, speed, peripheral set, and low power design make it a versatile solution for complex control applications.
Explore more Microchip Microcontrollers and accessories at EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz.
It features a program memory size of 32 kB.
This microcontroller has 33 programmable I/O pins for device control.
It operates within a supply voltage range of 1.8 V to 5.5 V.
This model is housed in a compact 28-pin QFN package suitable for surface mounting.
It can operate in temperatures ranging from -40°C to 85°C.
Yes, it supports the SPI interface for versatile communication options.
It includes 10 channels of 10-bit analog-to-digital converters for precise data processing.
The RAM size of this microcontroller is 1.54 kB.
This model includes 4 timers for various timing control applications.
It is built on the RISC instruction set architecture.
The maximum power dissipation for this microcontroller is 1 W.
