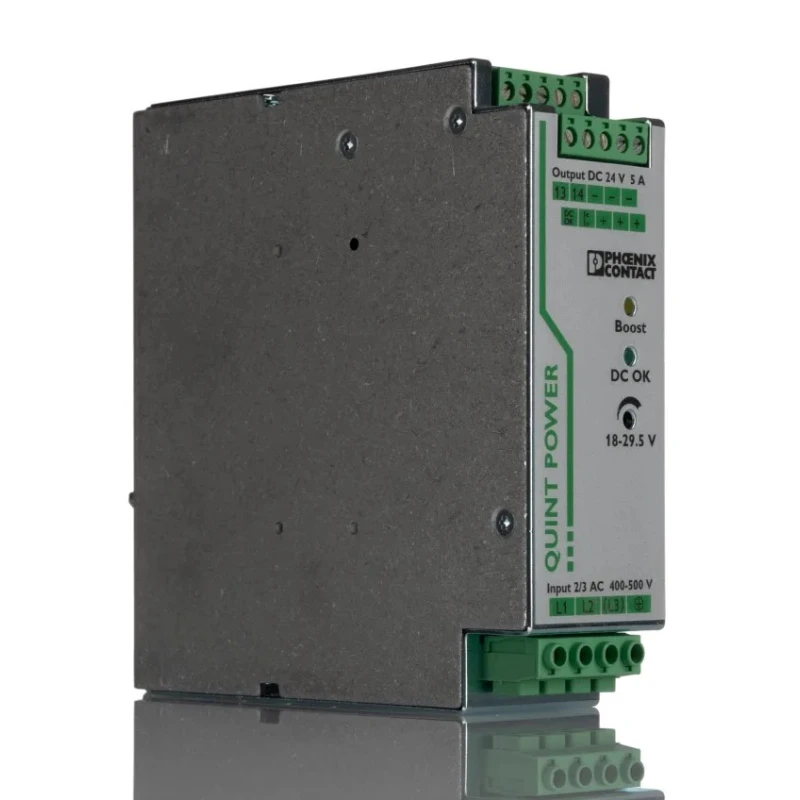

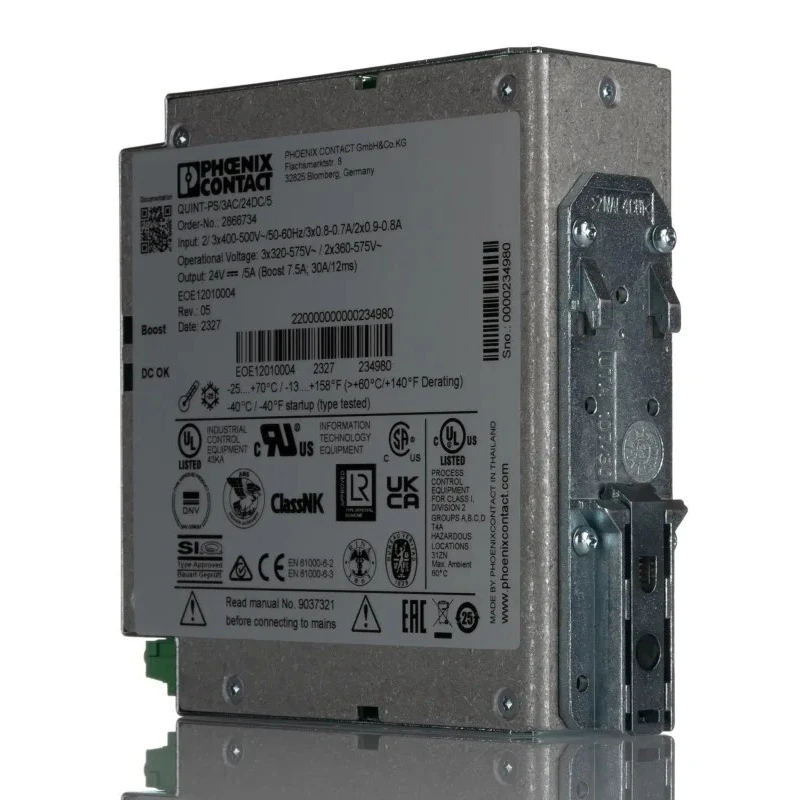

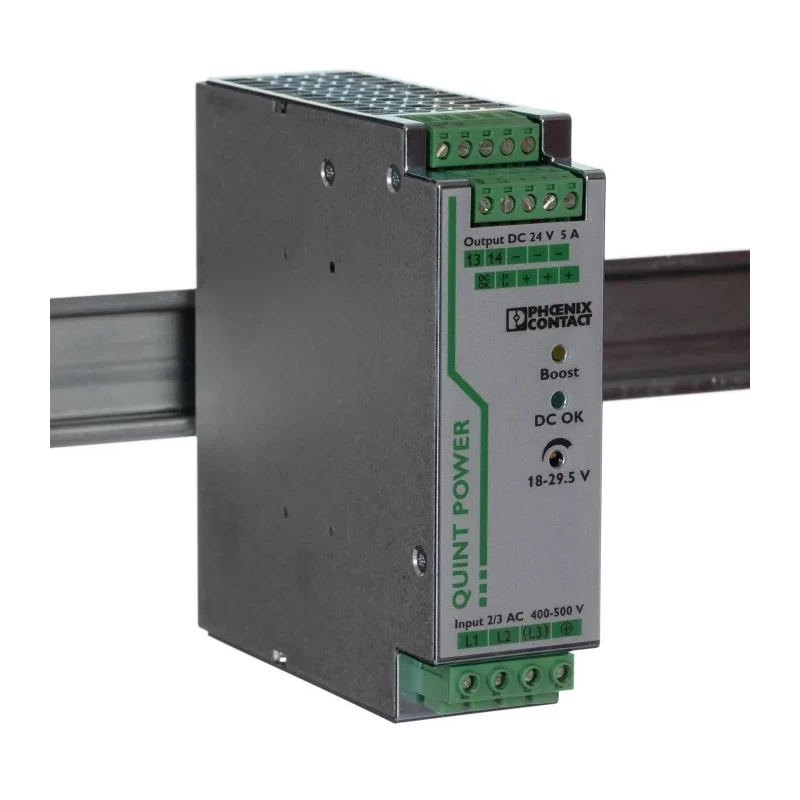

Phoenix Contact QUINT POWER Switched Mode 3-Phase DIN Rail Power Supply 120W 29.5V DC 5A Output 2866734
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Phoenix Contact |
| Power | 120W |
| Efficiency | 89% |
| Height | 130mm |
| Model | 2866734 |
| Depth | 130mm |
| IP Rating | IP20 |
| Width | 40mm |
| Series | QUINT POWER |
| Output Current | 5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 575V ac |
| Electrical Phase | 3 |
| Maximum Output Voltage | 29.5V dc |
| Minimum Input Voltage | 320V ac |
Key Features
- Supports high input voltage range from 320V AC to 575V AC and 450V DC to 800V DC.
- Three-phase electrical design ensures efficient power handling in industrial environments.
- Robust IP20 rated enclosure offers protection against solid ingress but is not water resistant.
- High efficiency of 89% reduces energy loss and limits heat generation.
- Wide operating temperature range from -25°C to +70°C enables use in diverse conditions.
- Compact dimensions of 130mm height, 40mm width, and 130mm depth for easy DIN rail installation.
- Isolation voltage of up to 4kV AC provides enhanced safety and equipment protection.
- Static power reserve feature supports startup of load-drawing equipment such as motors.
Product Description
Phoenix Contact 2866734 QUINT POWER switched mode DIN rail power supply is designed for industrial, manufacturing, and electrical panel applications requiring reliable and efficient power delivery. This three-phase power supply can accept a wide AC input voltage range between 320V and 575V, as well as DC input voltages from 450V up to 800V, providing flexibility in diverse power environments.
It outputs a nominal 29.5V DC voltage at 5A current, delivering up to 120W of power efficiently. The unit features an impressive efficiency of 89%, reducing thermal losses and minimizing the need for active cooling. Its enclosure rated at IP20 offers protection against solid dust ingress, suitable for controlled industrial settings.
Measuring 130mm by 40mm by 130mm, the power supply mounts easily on a standard 35mm DIN rail without tools, offering convenient installation and maintenance. Built-in 4kV AC isolation between input and output circuits enhances operational safety by protecting against voltage surges.
This power supply supports advanced features such as static power reserve (POWERBOOST) to help start demanding loads like motors. It has a mean time between failures (MTBF) exceeding 1,290,000 hours at 25°C, ensuring long-term reliability in continuous operation.
Its wide operating temperature range from -25°C to +70°C enables use in harsh environments and industrial automation systems. The product complies with EMC standards EN 61000-6-3, EN 61000-4-2, EN 61000-4-4, and EN 61000-4-6, guaranteeing stable operation even under electrical disturbances.
Supports wide AC/DC input voltage range for versatile use cases. Delivers a stable 29.5V DC output with adjustable voltage feature. Compact size and easy DIN rail mounting facilitate integration in panels. High efficiency reduces energy consumption and heat emission.
Static power reserve supports start-up of heavy loads such as motors. Built-in 4kV AC isolation safeguards equipment and personnel. Robust IP20 rated housing suitable for industrial control panels. Complies with stringent EMC standards for reliable operation.
Long MTBF ensures durable performance under continuous use.
This Phoenix Contact QUINT POWER DIN rail power supply is ideal for electrical panels, factory automation, manufacturing equipment, HVAC systems, and other industrial settings requiring stable and efficient power conversion. Explore more high-quality power supply options and components in the Electronics & Electricals categories at EnvMart.
Explore more products in our Power Supplies & Transformers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This unit accepts a wide AC input voltage range from 320V to 575V and DC input voltages from 450V to 800V.
The efficiency of this power supply is rated at 89%, which helps reduce energy loss and heat generation.
It has compact dimensions of 130mm in height, 40mm in width, and 130mm in depth, making it suitable for DIN rail installation.
It features an IP20 rated enclosure, providing protection against solid ingress but not against water.
It has an isolation voltage of up to 4kV AC, enhancing safety and protecting equipment from voltage surges.
It complies with EMC standards EN 61000-6-3, EN 61000-4-2, EN 61000-4-4, and EN 61000-4-6, ensuring reliable operation under electrical disturbances.
This model operates on a three-phase electrical design, which is suitable for industrial environments.
The country of origin for this power supply is Thailand.
