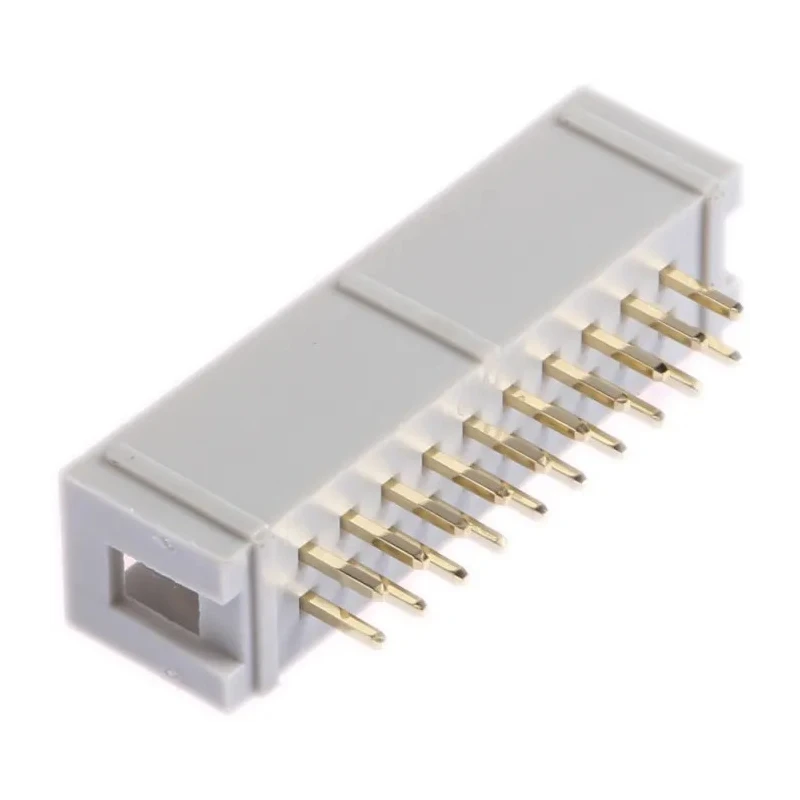

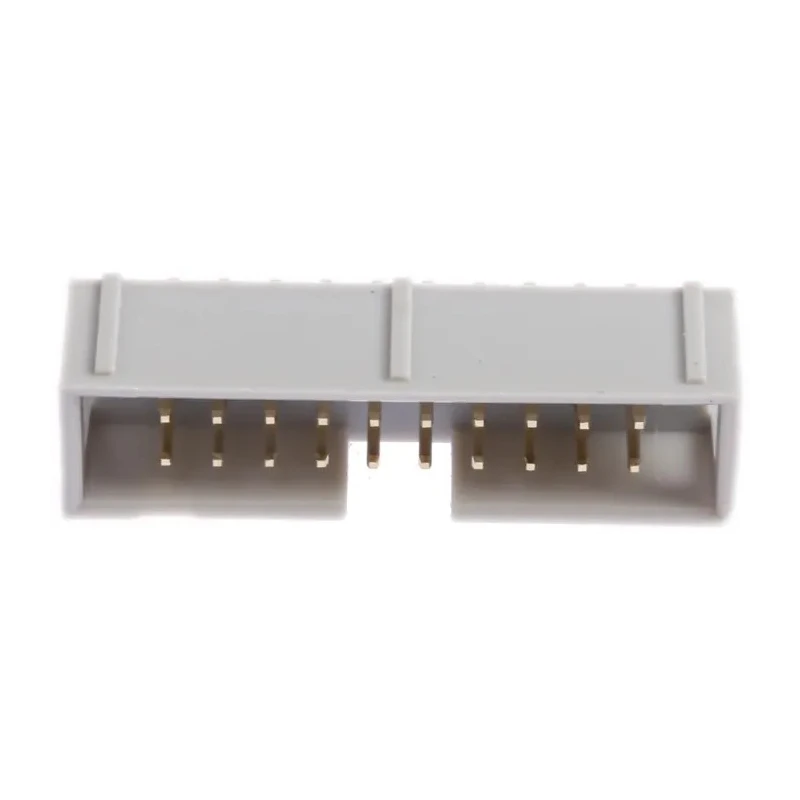

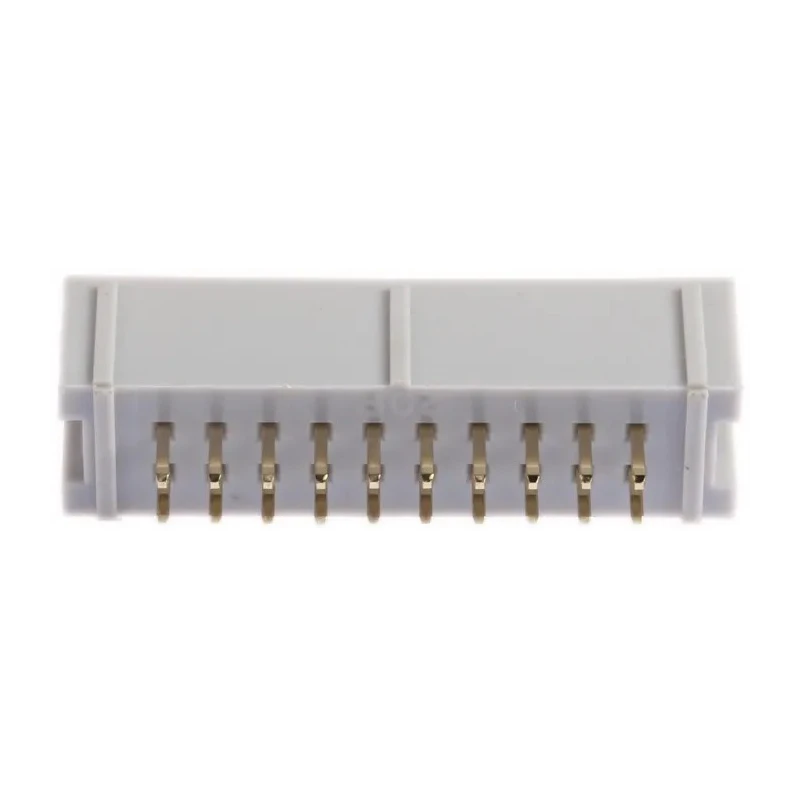

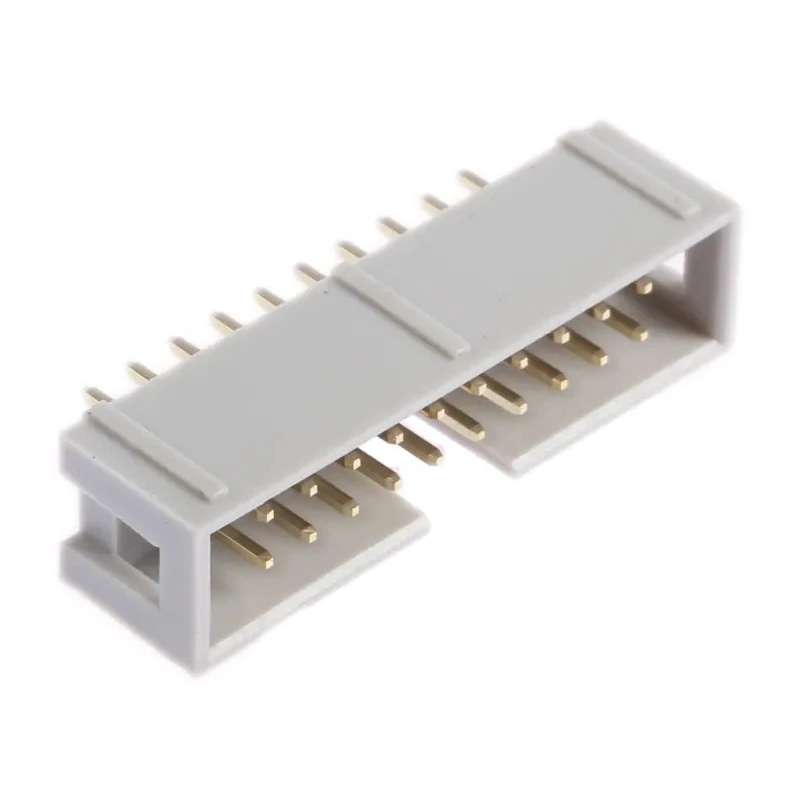

NEUTRAL Straight Through Hole PCB Header, 20 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded 625-7296

RS PRO 625-7296 is a professional-grade straight through hole PCB header designed for reliable electronic circuit connections. This 20-contact male IDC connector features a 2-row arrangement with a precise 2.54 mm pitch suitable for standard 1.6 mm thick printed circuit boards used across electronics manufacturing and prototyping.

The header's housing is constructed from 30% glass-filled polybutylene terephthalate (PBT), which provides excellent mechanical strength and electrical insulation. The connector is shrouded to protect the contacts and ensure stable mating with corresponding connectors.

Contacts are made from copper and plated with gold, which keeps contact resistance low - approximately 20 milliohms at DC 100 mA - while offering resistance to corrosion and wear. The connector supports a current rating of 1 amp and a voltage rating up to 500 volts, making it suitable for various industrial, laboratory, and electronic assembly applications.

It supports through-hole mounting and complies with the standard solder spill connection grid of 0.1 inch, facilitating easy integration into printed circuit boards. Its operational temperature range extends from -45°C to +105°C, enabling use in environments with wide temperature fluctuations.

This product meets industry electrostatic discharge standards, including ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, and complies with RoHS regulations for low hazardous substance content.

20-way male IDC connector with straight orientation for efficient PCB connections. Shrouded design ensures reliable insulation and protection of contacts. Through-hole mounting compatible with standard 1.6 mm thick printed circuit boards.

Gold-plated copper contacts provide low resistance and excellent conductivity. Housing made from durable 30% glass-filled polybutylene terephthalate (PBT) ensuring mechanical strength. Operating temperature ranges from -45°C to +105°C suitable for diverse environments.

Rated current of 1 ampere, and voltage withstand up to 500 volts. Designed for solder spill connections on a 0.1 inch grid standard. Insulation resistance at 5,000 megaohm at DC 500 V safeguards against electrical leakage.

Manufactured in Taiwan, Province of China reflecting quality production standards.

This RS PRO PCB header is ideal for engineers and manufacturers in electronics industries seeking durable and precise connectors for computing, industrial controls, instrumentation, and communication devices. Explore the full RS PRO range for reliable industrial connectors and components.
