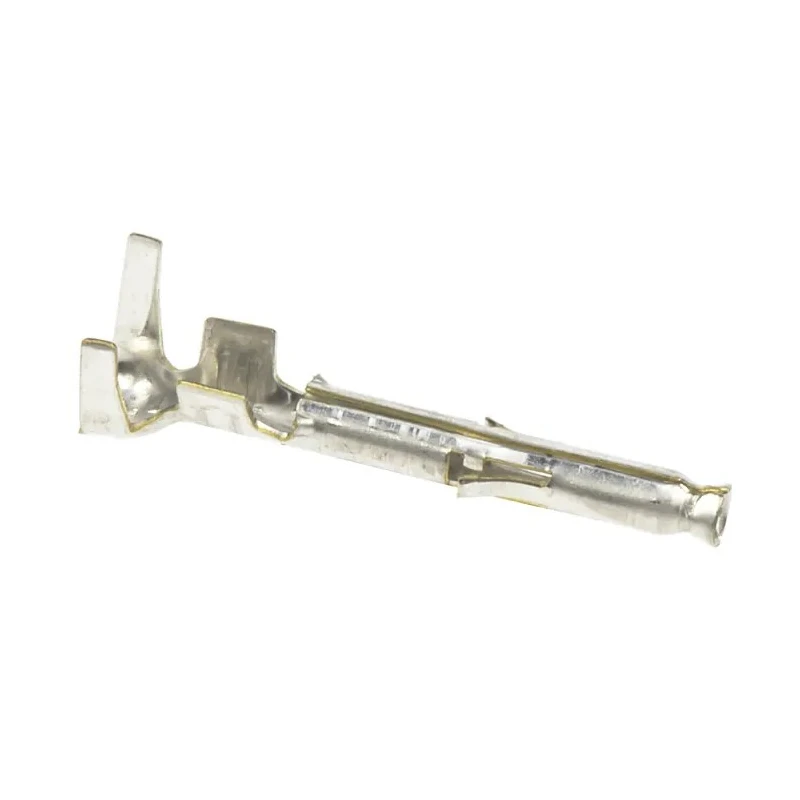

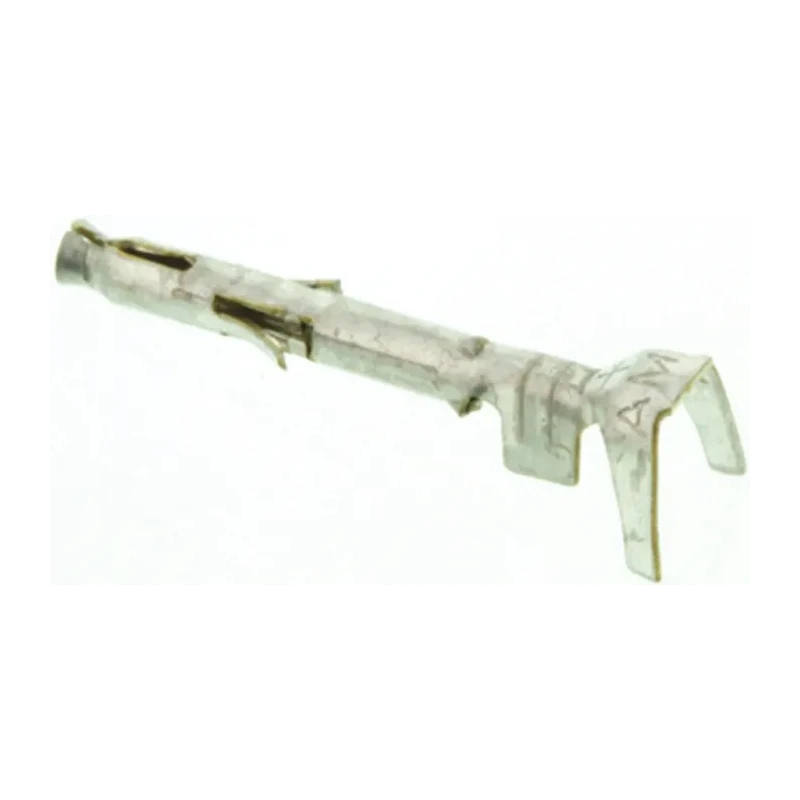

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal, 7A, Tin Plating, Brass Material, 20 AWG to 171639-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Model | 171639-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from brass with a tin-plated finish for corrosion resistance.
- Suitable for use with Mini-Universal MATE-N-LOK connector housing.
- Supports wire sizes from 0.5mm² (20 AWG) up to 1.3mm² (16 AWG).
- Offers a maximum contact resistance of 10 milliohms ensuring reliable electrical connection.
- Operates within a temperature range of -20°C to 105°C.
- Termination type is crimp, allowing for durable and secure wire connections.
- Rated for 600 Vac/dc operating voltage for versatile applications.
- Ideal for consumer electronics, commercial, HVAC, power supplies, and medical device applications.
Product Description
TE Connectivity 171639-1 Mini-Universal MATE-N-LOK Series Female Crimp Terminal is engineered for high-performance wire-to-wire connection applications. Constructed from durable brass and pre-tin plated to prevent corrosion, this female crimp terminal supports wire sizes from 20 AWG to 16 AWG (0.5mm² to 1.3mm²) and provides a rated current of 7 amps.
Designed to be used exclusively with Mini-Universal MATE-N-LOK connector housings, it ensures a reliable and secure crimped connection. The tin plating on the contact surface delivers low contact resistance of up to 10 milliohms, enhancing conductivity and overall system efficiency.
This crimp terminal operates effectively within an industrial temperature range between -20°C and 105°C, supporting a maximum voltage rating of 600 volts AC/DC, making it suitable for a wide array of electrical and electronic equipment, including consumer electronics, HVAC systems, commercial power supplies, portable devices, lighting solutions, and medical and security apparatus.
Manufactured in China, this component complies with global industry standards and certifications such as UL E28476 and CSA LR7189, ensuring product reliability and safety. Constructed from brass with tin plating for durability and corrosion resistance.
Rated for 7A current and supports a voltage of up to 600 Vac/dc. Suitable for crimp termination with wire sizes 20 AWG to 16 AWG. Low contact resistance ensures reliable electrical connections. Wide operating temperature range from -20°C to 105°C.
Compatible exclusively with Mini-Universal MATE-N-LOK connector housings. Applications include consumer electronics, commercial equipment, HVAC, power supplies, lighting, and medical devices. Meets UL and CSA industry standards for safety and performance.
This Mini-Universal MATE-N-LOK Crimp Terminal is a precise and reliable connector solution for industrial, commercial, and laboratory electrical wiring systems. Explore more TE Connectivity Connectors and components on EnvMart for complete electrical systems design and maintenance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum current of 7A.
It supports wire sizes from 20 AWG (0.5mm²) to 16 AWG (1.3mm²).
The maximum operating temperature is 105°C.
It uses a crimp termination type for secure wire connections.
The maximum contact resistance is 10 milliohms (10mΩ).
The operating temperature range of -20°C to 105°C makes it suitable for various environments, but specific outdoor suitability is not stated.
It is constructed from brass with a tin-plated finish for corrosion resistance.
This terminal is designed exclusively for use with Mini-Universal MATE-N-LOK connector housings.
It is suitable for applications in consumer electronics, HVAC systems, commercial power supplies, and medical devices.
It meets UL E28476 and CSA LR7189 industry standards for safety and performance.
This terminal is manufactured in China.
It has a voltage rating of 600 Vac/dc, making it versatile for various applications.
