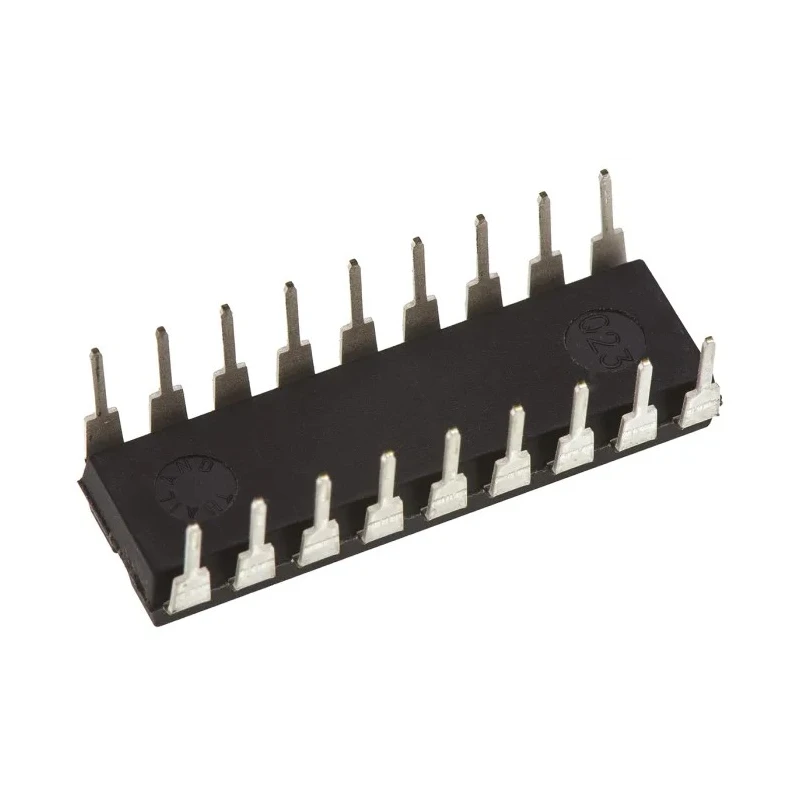

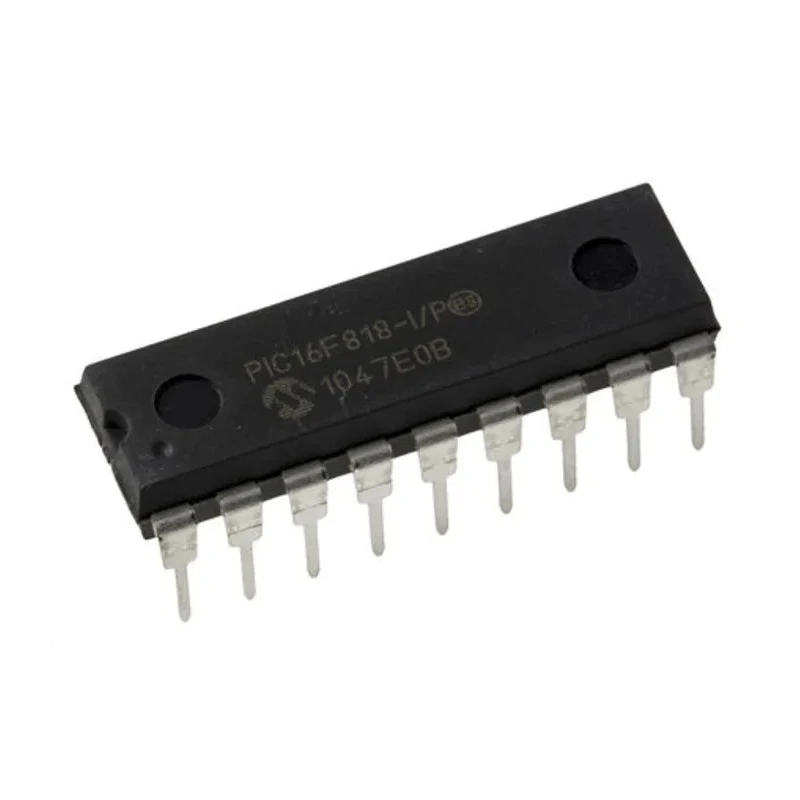

Microchip PIC16F818-I/P 8-bit PIC Microcontroller 20 MHz 1.792 kB Flash 128 B RAM 18-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 22.99mm |
| Model | PIC16F818-I/P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Interface Type | SPI |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1.792, 128kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 16 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Features an 8-bit PIC device core optimized for mid-range applications.
- Operates with 5.5 V maximum supply voltage and 1 W power dissipation.
- Includes five channels of 10-bit Analog-to-Digital Converter (ADC).
- Supports SPI synchronous serial communication interface.
- Temperature range from -40°C to 85°C suitable for industrial environments.
- Has 16 programmable input/output pins and three timers for versatile control tasks.
- Equipped with robust reset and watchdog timer functions for reliable operation.
- Comes with FLASH program memory and RAM, enabling in-circuit programming and debugging.
Product Description
Microchip PIC16F818-I/P is an 8-bit PIC microcontroller designed for embedded industrial and commercial applications, featuring a 20 MHz maximum CPU speed and 1.792 kB Flash memory. This device integrates a PIC mid-range core architecture with an 8-level hardware stack and 35 instruction sets, delivering up to 5 MIPS performance. It offers comprehensive peripherals including multiple timers, a 5-channel 10-bit ADC, capture/compare/PWM modules, and synchronous serial port with SPI and I2C support.
The device supports robust power management features such as brown-out reset (BOR), power-on reset (POR), power-up timer (PWRT), oscillator start-up timer (OST), and watchdog timer (WDT) ensuring stability in harsh environments. Operating voltage ranges from 2 V to 5.5 V making it versatile for low power embedded designs.
The 18-pin PDIP through-hole package with 16 programmable I/O pins is ideal for prototyping and small series production, enabling easy connection and debugging. Its operating temperature range from -40°C to 85°C allows usage in demanding industrial settings.
This microcontroller family emphasizes flexibility and compactness without compromising performance, supporting in-circuit serial programming (ICSP) and debugging (ICD) which simplifies firmware development and updates.
8-bit PIC mid-range core with 35 instructions and 8-level stack. Up to 20 MHz clock speed and 5 MIPS throughput. 1.792 kB Flash program memory with 128 B RAM for data processing. 5 channel 10-bit analog-to-digital converter for sensor interfacing.
Multiple timers and CCP modules for complex control applications. Various power management and reset features for reliability. Supports synchronous serial communication with SPI and I2C protocols. Through-hole PDIP package with 18 pins suitable for development boards.
The Microchip PIC16F818-I/P microcontroller is appropriate for use in industrial automation, embedded control systems, instrumentation, consumer electronics, and automotive applications. Its flexibility, moderate memory size, and peripheral integration make it a reliable choice for developers needing compact microcontroller solutions.
Explore more Microchip microcontrollers and related semiconductor products under the Microcontroller category at EnvMart to find components suited to your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
This microcontroller features 1.792 kB of Flash program memory.
It supports SPI and I2C synchronous serial communication interfaces.
This model includes 16 programmable input/output pins.
The maximum power dissipation for the PIC16F818-I/P is 1 W.
It has 128 bytes of RAM for data processing.
The microcontroller comes in an 18-pin PDIP (Plastic Dual In-line Package) configuration.
This model includes three timers for various control tasks.
The minimum supply voltage is 2 V, and the maximum supply voltage is 5.5 V.
It is equipped with a 5-channel 10-bit Analog-to-Digital Converter (ADC).
The dimensions are 3.68 mm in height, 22.99 mm in length, and 6.6 mm in width.
