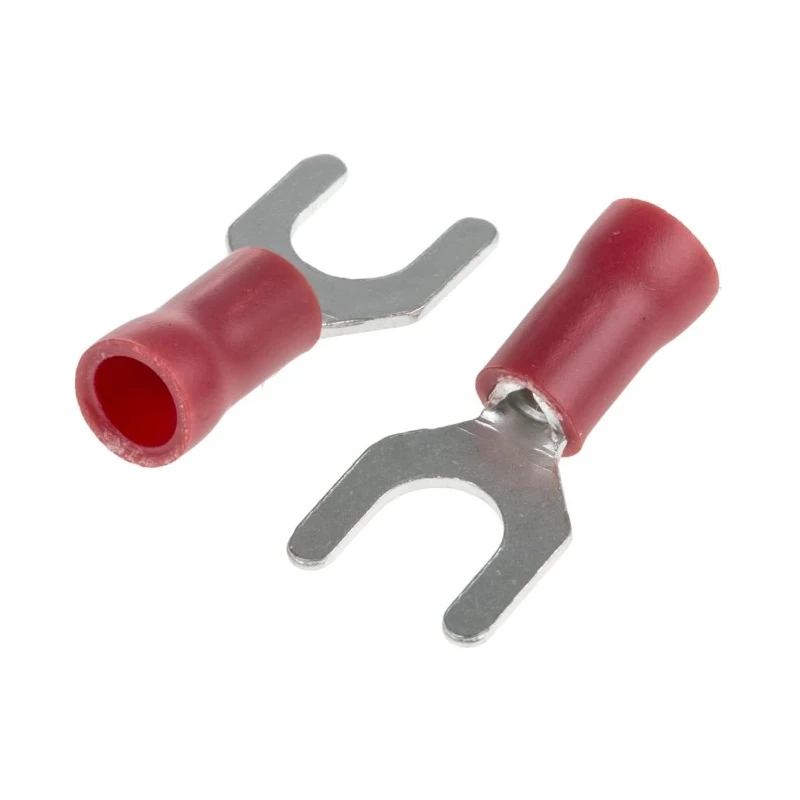

RS PRO Insulated Fork Terminal 22 AWG to 16 AWG M5 Stud Size Vinyl Red 534-250
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| THICKNESS | 0.8mm |
| Model | 534-250 |
| Width | 8.5mm |
| Insulation | Insulated |
| Overall Length | 20.5mm |
| Contact Material | Copper |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | M5 |
| CRIMP CONNS-SPADE 2BABrand | NEUTRAL |
Key Features
- Constructed with highly conductive copper contact material for reliable electrical transmission.
- Features red vinyl insulation for easy identification and safe handling.
- The tin plating on contacts enhances corrosion resistance and durability.
- Designed with a length of 20.5 mm and thickness of 0.8 mm for precise installation.
- Compatible with wires from 0.5 mm² up to 1.5 mm² cross-sectional area.
- The connector is insulated and easy to crimp, eliminating the need for soldering.
- The red insulation sleeve has a flared design to facilitate wire insertion.
- Typical applications include electrical panels, terminal blocks, and wiring harnesses in industrial electronics and telecommunications.
Product Description
RS PRO 534-250 insulated fork terminal is designed for secure electrical connections with wire sizes from 22 AWG to 16 AWG and a stud size of M5. The terminal features a red vinyl insulation sleeve that provides both safety and easy identification of circuits.
The contact material is copper, which offers excellent conductivity, and is plated with tin to protect against corrosion and enhance longevity in demanding industrial and electronic environments.
At 20.5 mm overall length and a thickness of 0.8 mm, this fork terminal allows for effortless crimping, providing a reliable mechanical and electrical connection without the need for soldering. The flared vinyl insulation sleeve simplifies wire insertion and ensures insulation integrity.
Ideal for various industrial applications including telecommunications, electronics engineering, electrical panels, terminal blocks, and wiring harness assemblies, this fork terminal meets the requirements for dependable, safe electrical jointing.
Highly conductive copper contact material. Durable tin plating for protection against corrosion. Insulated with red vinyl for easy color-coded identification. Wire size compatibility from 22 AWG (0.5 mm²) to 16 AWG (1.5 mm²).
Designed for use with M5 stud sizes. Overall length of 20.5 mm with a 0.8 mm thick connector. Easy to crimp end for secure connection without soldering. Made in Taiwan, Province of China.
This RS PRO insulated fork terminal is a reliable component for industrial, telecommunications, electronics, and electrical maintenance and assembly tasks. Its design facilitates quick, secure, and efficient wiring connections.
Explore more professional-grade wire terminals and electrical connectors at EnvMart to meet your industrial and commercial wiring needs.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated fork terminal is compatible with wire sizes from 22 AWG (0.5 mm²) to 16 AWG (1.5 mm²).
The overall length of this terminal is 20.5 mm, and it has a thickness of 0.8 mm.
The contact material is copper, which provides excellent conductivity and is plated with tin for corrosion resistance.
This terminal is designed for use with M5 stud sizes.
The insulation material is vinyl, which provides safety and easy identification.
The flared design of the red vinyl insulation sleeve simplifies wire insertion, ensuring ease of connection.
This terminal is suitable for applications in electrical panels, terminal blocks, and wiring harnesses in industrial electronics and telecommunications.
The terminal features a red color for easy identification of circuits.
This insulated fork terminal is made in Taiwan, Province of China.
No, this terminal is designed for easy crimping, eliminating the need for soldering.
The width of this terminal is 8.5 mm.
The tin plating on the contacts enhances corrosion resistance and durability, making it suitable for demanding environments.
