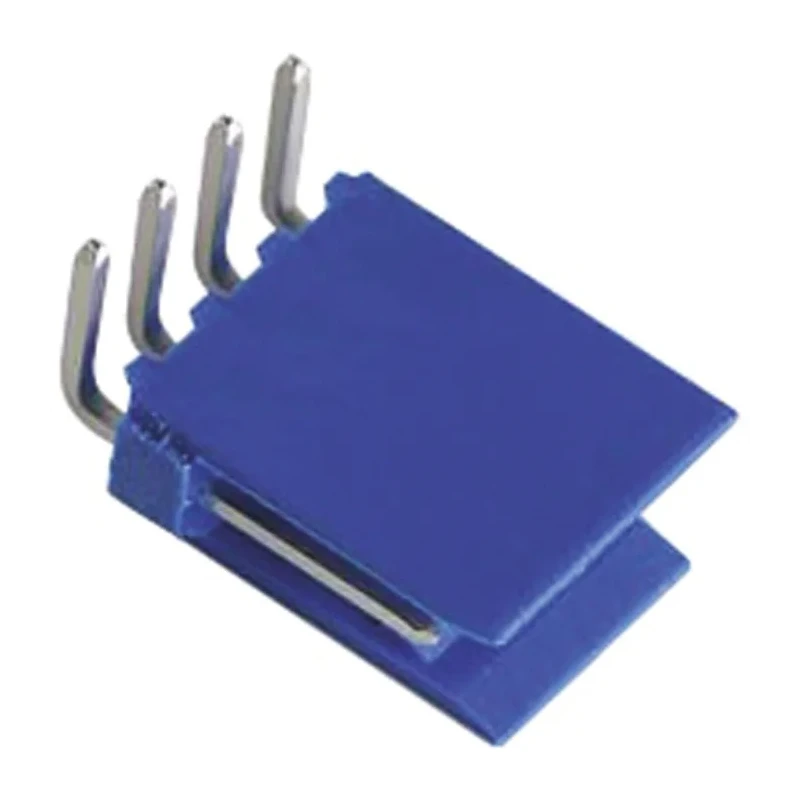

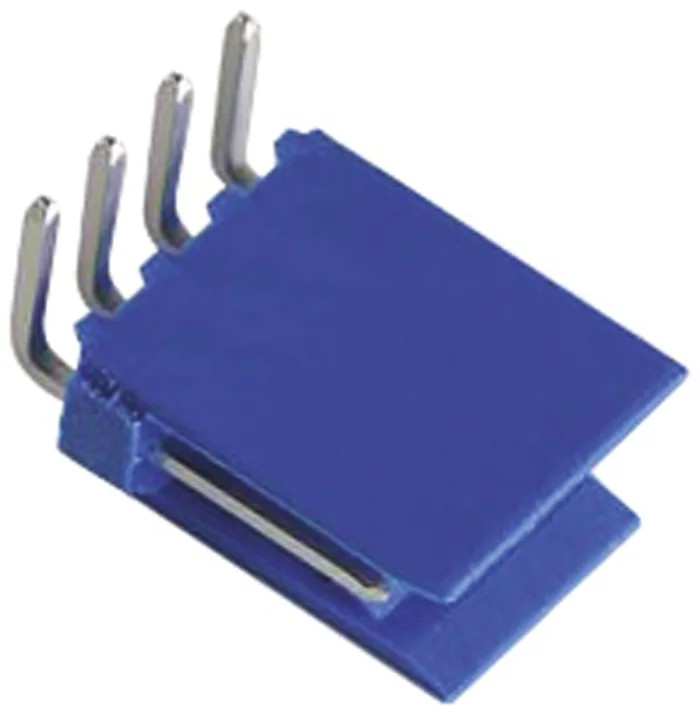

NEUTRAL AMPMODU Series Right Angle Through Hole PCB Header Shrouded 4 Contacts 2.54 mm Pitch HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | NEUTRAL |
| Orientation | Right Angle |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
| HE14 4W 1/ROW 90 HDRBrand | NEUTRAL |
Key Features
- Constructed with high temperature UL 94V-0 rated thermoplastic housing for durability.
- Shrouded design protects pins and prevents mismating.
- Integrated friction lock ensures secure mating connection.
- Phosphor bronze contacts with tin plating offer solid electrical performance.
- Rated for 3A current and 500V voltage for versatile application.
- Operates effectively within temperature range of -40°C to 105°C.
- Right angle orientation and through-hole mounting provide stable PCB connection.
- Tail pins length of 2.79 mm suitable for standard soldering processes.
Product Description
TE Connectivity HE14 model offers a high quality AMPMODU HE14 Series Right Angle Through Hole PCB Header featuring 4 contacts with 2.54 mm pitch and shrouded housing constructed from high temperature thermoplastic material rated UL 94V-0. This connector is designed for wire-to-board applications requiring reliable and secure connections.
The shrouded design protects pins from damage while the integrated friction lock prevents unintentional disconnection, ensuring a stable and safe electrical interface. The phosphor bronze contact material finished with tin plating guarantees strong conductivity and corrosion resistance.
Rated for up to 3 amps of current and 500 volts, this connector withstands industrial-grade electrical demands. It operates reliably within a wide temperature range from -40°C to 105°C, making it suitable for harsh environments.
The right angle orientation and through-hole mounting style facilitate a robust and standard PCB assembly fitment. The tail pin length of 2.79 mm supports solder termination processes commonly used in electronic manufacturing.
Applications for this PCB header include automotive control systems, telecommunications, industrial equipment, medical instruments, data storage devices, and a variety of commercial and industrial electronic assemblies.
Constructed with high temperature UL 94V-0 rated thermoplastic housing for durability. Shrouded design protects pins and prevents mismating. Integrated friction lock ensures secure mating connection. Phosphor bronze contacts with tin plating offer solid electrical performance.
Rated for 3A current and 500V voltage for versatile application. Operates within temperature range of -40°C to 105°C. Right angle orientation and through-hole mounting provide stable PCB connection. Tail pins length of 2.79 mm suitable for standard soldering processes.
TE Connectivity's AMPMODU HE14 interconnect system is widely respected for automation and control applications, delivering reliable signal connectivity in multiple industrial sectors. Discover more high-quality connectors and components in the Electronics Components category at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3A and a voltage of 500V, making it suitable for various applications.
It operates effectively within a temperature range of -40°C to 105°C, allowing it to function in harsh environments.
This unit features a through-hole mounting style, which provides a stable connection on the PCB.
The housing is made from high temperature thermoplastic rated UL 94V-0, and the contacts are made of phosphor bronze with tin plating for electrical performance.
The contacts have a pitch size of 2.54 mm, which is standard for many PCB applications.
This model features 4 contacts, providing multiple connection points for wire-to-board applications.
The tail pins have a length of 2.79 mm, suitable for standard soldering processes.
It has a right angle orientation, which can be beneficial for space-constrained applications.
This model is shrouded, which helps protect the pins and prevent mismating during connection.
It is suitable for wire-to-board applications in automotive control systems, telecommunications, industrial equipment, and medical instruments.
The contacts in this model are male, designed for connecting to female connectors in wire-to-board configurations.
This PCB header is part of the AMPMODU HE14 connector system, which is known for reliable signal connectivity in various industrial sectors.
