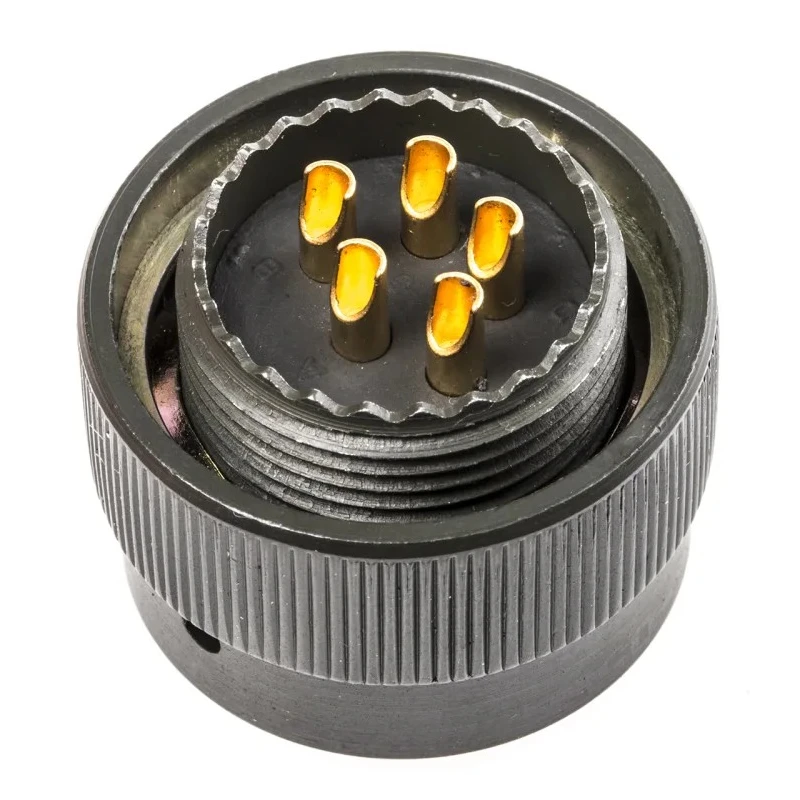

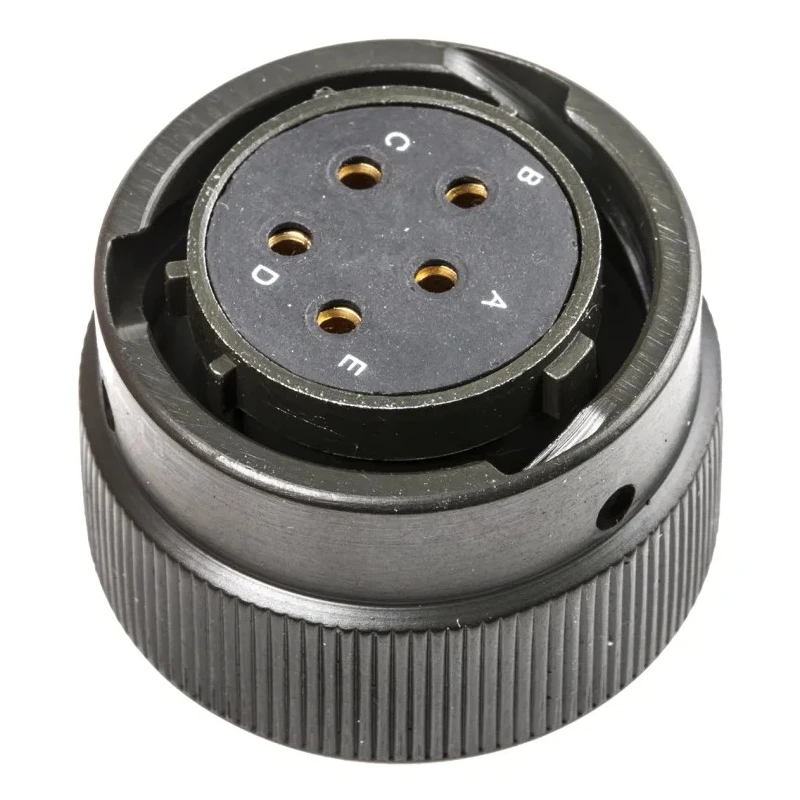

Amphenol Limited Brass Straight 5-Way Cable MIL Spec Circular Connector Male Olive, Female Contacts, Shell 62GB-56T14-05SN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1.2, 850kV dc |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Current | 13A |
| Model | 62GB-56T14-05SN |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Brass |
| Series | 62GB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 14 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shell Plating | Zinc Cobalt |
Key Features
- Features a bayonet lock mating system for secure connection.
- Constructed from durable aluminium with zinc cobalt olive drab plating for corrosion resistance.
- Includes gold plated brass female contacts for reliable conductivity.
- Rated for 13A current and voltages up to 1.2kV and 850kV dc insulation.
- Operates reliably between -55°C and 125°C temperatures.
- Meets MIL-DTL-26482 military standard with keying to prevent mismating.
- Designed with standard shell size 14 and cable mount type.
- Provides high degree of environmental protection when mated.
Product Description
Amphenol Limited 62GB-56T14-05SN brass straight 5-way cable MIL Spec circular connector is a miniature bayonet lock connector designed to meet stringent military standards (MIL-DTL-26482). This miniature circular connector offers a reliable and durable solution for harsh industrial and military environments. The connector shell is machined from aluminium alloy with a zinc cobalt olive drab plating, providing excellent corrosion resistance and durability.
Equipped with a bayonet lock mating system, this connector ensures a secure, vibration-resistant connection that prevents accidental disconnection. The standard shell size 14 provides compatibility with common industry chassis and cable plugs. The female contacts are made of brass with gold plating to ensure consistent electrical conductivity and resistance to wear.
This connector supports a current rating of 13A and withstands voltages up to 1.2 kV AC and 850 kV DC insulation, making it suitable for demanding power and signal applications. It is engineered to operate effectively over a broad temperature range from -55°C to +125°C, ensuring stable performance in extreme climates.
The 62GB series connectors incorporate keying features to avoid mismating with other connectors, enhancing system reliability in complex setups. They comply with the MIL-C-26482E specification and meet environmental sealing requirements, offering protection against dust and moisture when mated.
This MIL spec circular connector is ideal for military, aerospace, industrial, and other severe environment applications requiring rugged and dependable cable connections. The product is supplied with solder bucket gold plated contacts ready for solder termination.
Bayonet lock mating system for a secure and reliable connection. Constructed from robust aluminium alloy with zinc cobalt olive drab plating for corrosion resistance. Gold plated brass female contacts ensure excellent electrical conductivity.
Rated for high current of 13A and high voltages to 1.2kV and 850kV dc insulation. Wide operating temperature range from -55°C to 125°C. Compliant with MIL-DTL-26482 military standards for quality and durability. Features a keyway design to prevent mismating with other connectors.
Provides high environmental protection rating when mated. Suitable for use in harsh military, aerospace, and industrial environments. Ideal for robust, high-quality signal and power cable connections. Explore a broad selection of Mil Spec Circular Connectors and related components at EnvMart for your industrial and military connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 13A.
This model can withstand voltages up to 1.2kV AC and 850kV DC insulation.
It operates effectively between -55°C and +125°C.
The housing is made of aluminium, while the contacts are brass with gold plating.
The bayonet lock mating system ensures a secure, vibration-resistant connection that prevents accidental disconnection.
It has a standard shell size of 14.
Yes, it complies with the MIL-DTL-26482 military standard.
This model uses solder termination for its contacts.
The connector features male gender for the connector and female gender for the contacts.
It offers a high degree of environmental protection when mated, preventing dust and moisture ingress.
It is ideal for military, aerospace, and industrial applications that require rugged and reliable cable connections.
The country of origin for this connector is India.
