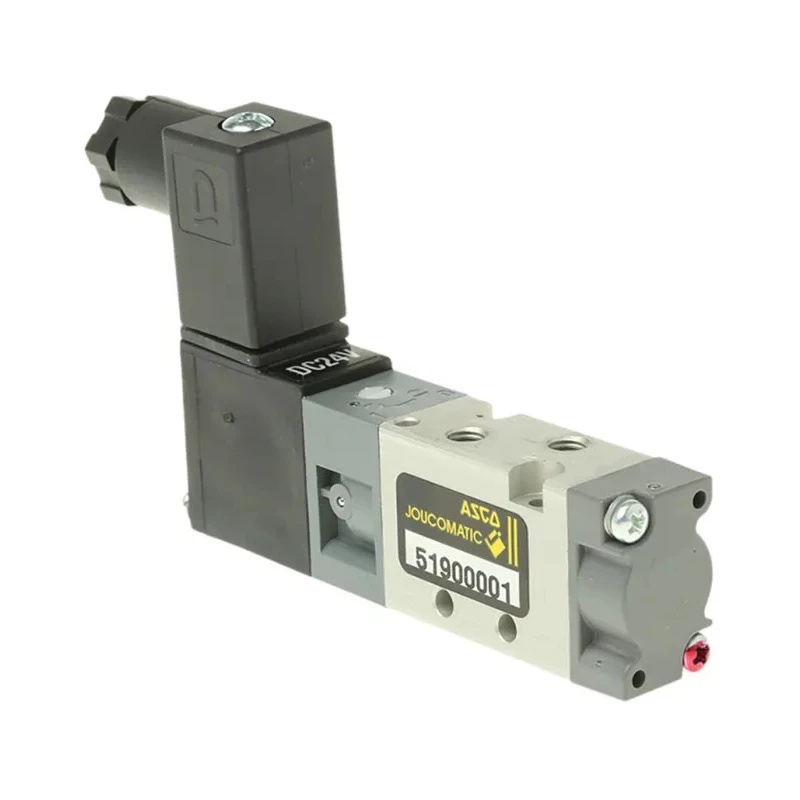

EMERSON ? ASCO EMERSON ASCO Pneumatic Solenoid Valve 5/2 Solenoid Metric Series 519 24V DC Manifold Mount 51900001
Specifications
| Country of Origin | Poland |
|---|---|
| Voltage | 24V dc |
| Brand | EMERSON ? ASCO |
| Body Material | Anodised Aluminium |
| Maximum Operating Pressure | 8 bar |
| Height | 52mm |
| Length | 97.5mm |
| Model | 51900001 |
| Width | 15mm |
| Mount Type | Manifold |
| Series | 519 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Port Type | Push-in |
| Port Size | M5 |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | 5°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 175L/min |
| Connection Thread Standard | Metric |
| Mount Pattern | DIN |
| Minimum Pilot Pressure | 1.5bar |
| Valve Function | 5/2 |
| Electrical Connection Type | Plug Connector |
| Available in 3 different sizes | M5, G1/8" or G1/4" |
| Solenoid Power Consumption | 1.6W |
Key Features
- This valve features a 5/2 valve function suitable for directing air flow efficiently.
- It uses a push-in port type with M5 port size and metric connection thread standard.
- Operates at a voltage of 24V DC with a low solenoid power consumption of 1.6W.
- Built with anodised aluminium body and nitrile rubber (NBR) seals to ensure durability and leak resistance.
- Designed for manifold mounting with a DIN mount pattern for standardized installation.
- Capable of handling maximum operating pressure of 8 bar and pilot pressure ranging from 1.5 bar to 8 bar.
- Maximum flow rate is 175 L/min, suitable for varied pneumatic systems.
- Operational temperature range from 5°C minimum up to 50°C maximum.
Product Description
EMERSON ASCO 51900001 Pneumatic Solenoid Valve 5/2 Solenoid Metric Series 519 24V DC is engineered for industrial pneumatic control with reliable solenoid actuation and manifold mounting capability. It is designed to provide precise directional control of compressed air in automated systems, making it suited for various industrial, manufacturing, and fluid power applications.
The valve features a 5/2 function allowing two output ports controlled by one or two solenoid actuators, with a push-in type M5 port size and standardized metric threads. Its anodised aluminium body offers robust mechanical performance, while nitrile rubber (NBR) seals ensure leak-tight operation and resistance to wear.
Operating at 24V DC voltage, it consumes only 1.6 watts of power, enhancing energy efficiency. The valve supports operating pressures up to 8 bar, including pilot pressures from 1.5 bar minimum to 8 bar maximum. The maximum flow rate of 175 L/min provides sufficient capacity for pneumatic actuation needs.
Its compact dimensions of 97.5 mm length, 15 mm width, and 52 mm height allow it to fit within manifolds and confined machinery spaces. The DIN mount pattern simplifies integration into standard pneumatic manifolds, while the plug connector electrical interface facilitates quick and secure connections.
This valve from the 519 series also includes different sizes available (M5, G1/8", G1/4") and multiple function configurations such as monostable, bistable, closed centre, or open centre, offering flexibility for varied applications. Manufactured in Poland, it meets high engineering and production standards.
This pneumatic solenoid valve is suitable for industrial automation, fluid control, manufacturing, HVAC, and pneumatic tool systems. Its manifold mounting design enables modular assembly and ease of installation. The anodised aluminium construction ensures durability under industrial conditions.
The valve supports controlled air flow for precise actuation in machinery and process systems. The 5-port configuration and 5/2 valve function provide effective directional control in pneumatic circuits. Explore the Pneumatic Solenoid Valve category for related components and accessories available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage of 24V DC.
The maximum operating pressure is 8 bar.
It has a maximum flow rate of 175 L/min.
The valve measures 97.5 mm in length, 15 mm in width, and 52 mm in height.
It features an anodised aluminium body and nitrile rubber (NBR) seals.
The operational temperature range is from 5°C to 50°C.
It is designed for manifold mounting with a DIN mount pattern.
It uses a push-in port type with an M5 port size.
The solenoid power consumption is 1.6W.
It supports a pilot pressure range from 1.5 bar to 8 bar.
It features a 5/2 valve function for directing air flow efficiently.
It is manufactured in Poland.
