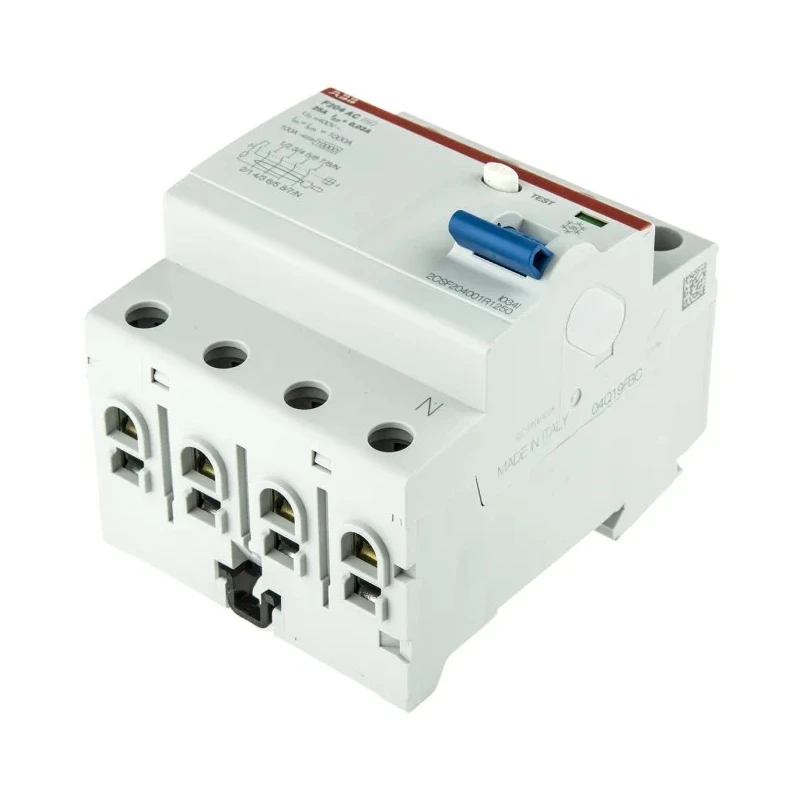

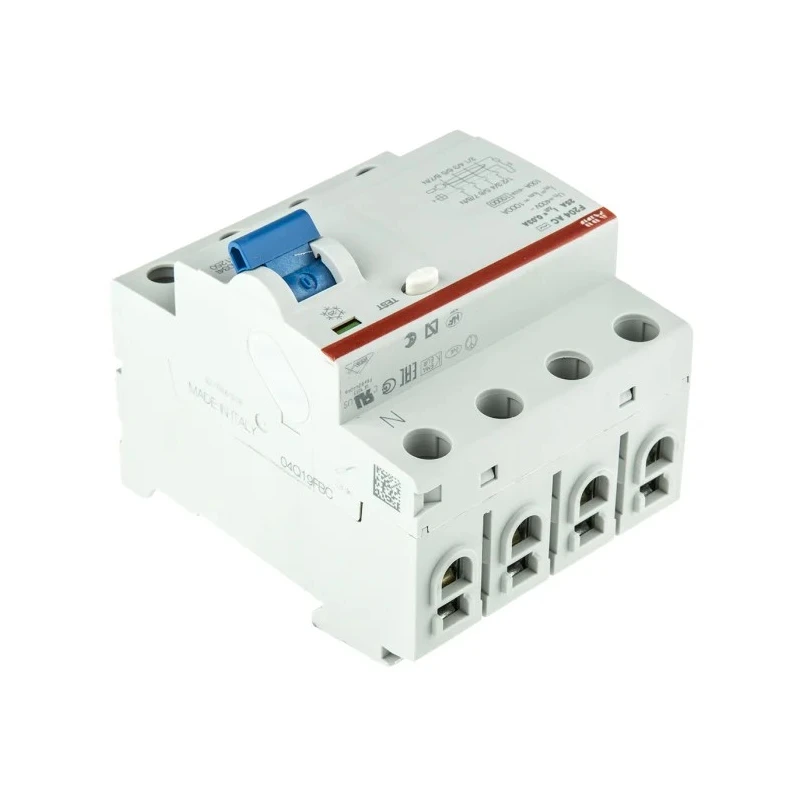

ABB F200 Series Residual Current Circuit Breaker 25A 4-Pole 30 mA Type AC 0.03 A 400V ac 2CSF204001R1250 F204 AC-25/0,03

Free Delivery in India | Lowest Global Shipping Charges

ABB F200 Series Residual Current Circuit Breaker 25A 4-Pole 30 mA Type AC 0.03 A 400V ac 2CSF204001R1250 F204 AC-25/0,03



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	India
Range	RCCBs F200
Brand	ABB
Height	85mm
Model	2CSF204001R1250 F204 AC-25/0,03
Depth	85mm
Width	70mm
Mount Type	DIN Rail
Current Rating	25A
Series	F200
Terminal type	Screw
Breaking Capacity	0.03A
Number of Poles	4
Standards/Approvals	RoHS, CE
Rated AC Voltage	400V ac
Tripping Characteristics	Type AC
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Break Time	Instantaneous
Earth Leakage Protection Type	AC
RCBO's	DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz

Key Features

Offers sensitive trip rating with 30 mA trip sensitivity for enhanced safety.
Type AC tripping characteristics suitable for AC earth leakage protection.
Compact DIN rail mount design ensures easy installation and maintenance.
Equipped with a toggle switch reset actuator for convenient operation.
Conforms to RoHS and CE standards for quality and safety compliance.
Screw type terminals provide secure and reliable electrical connections.
Rated for 400V AC voltage ensuring compatibility with standard electrical systems.
Instantaneous break time enhances quick disconnection in fault conditions.

Product Description

ABB 2CSF204001R1250 F204 AC-25/0,03 Residual Current Circuit Breaker (RCCB) is designed to provide reliable ground fault protection by detecting leakage currents and preventing electrical shocks and fire hazards.

This 25A, 4-pole RCCB from the F200 series supports a trip sensitivity of 30 mA with Type AC tripping characteristic, making it suitable for commercial and industrial applications involving alternating current earth leakage protection.

The device features a compact and robust DIN rail mounting system, facilitating easy integration into electrical control panels with precise dimensions of 85mm height, 70mm width, and 85mm depth. It operates safely within a rated AC voltage of 400V and features a toggle switch reset actuator for straightforward manual resetting after tripping.

Equipped with screw terminals, it ensures secure and durable connections, enhancing operational stability and safety. The instantaneous break time provides rapid fault disconnection, minimizing potential hazards.

The ABB F200 series RCCB complies with RoHS and CE standards, reflecting adherence to environmental and safety regulations. Provides ground fault protection with sensitive 30 mA trip sensitivity. Compact DIN rail mount suitable for industrial control panels.

Reliable Type AC tripping characteristics for AC earth leakage detection. Toggle switch reset actuator for easy operation. Screw terminal connections ensure stability and reliability. Rated for 25A current and 400V AC voltage applications.

Instantaneous break time for quick response to faults. Compliant with RoHS and CE standards.

This ABB RCCB is ideal for industrial and commercial electrical installations requiring efficient earth leakage detection and protection. For more comprehensive product options, explore the Circuit Breakers & Fuse category on EnvMart.
