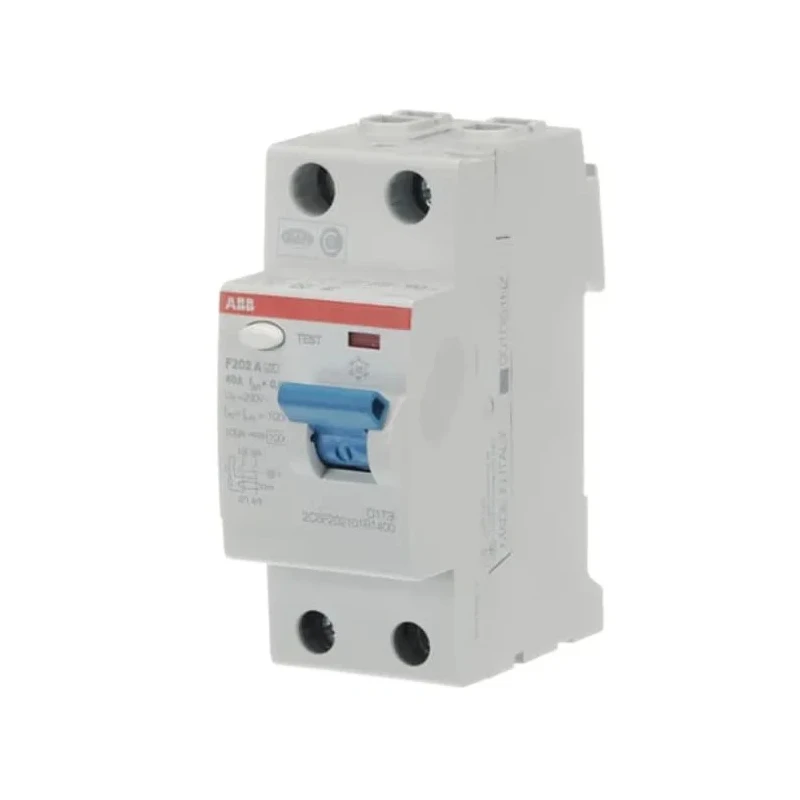

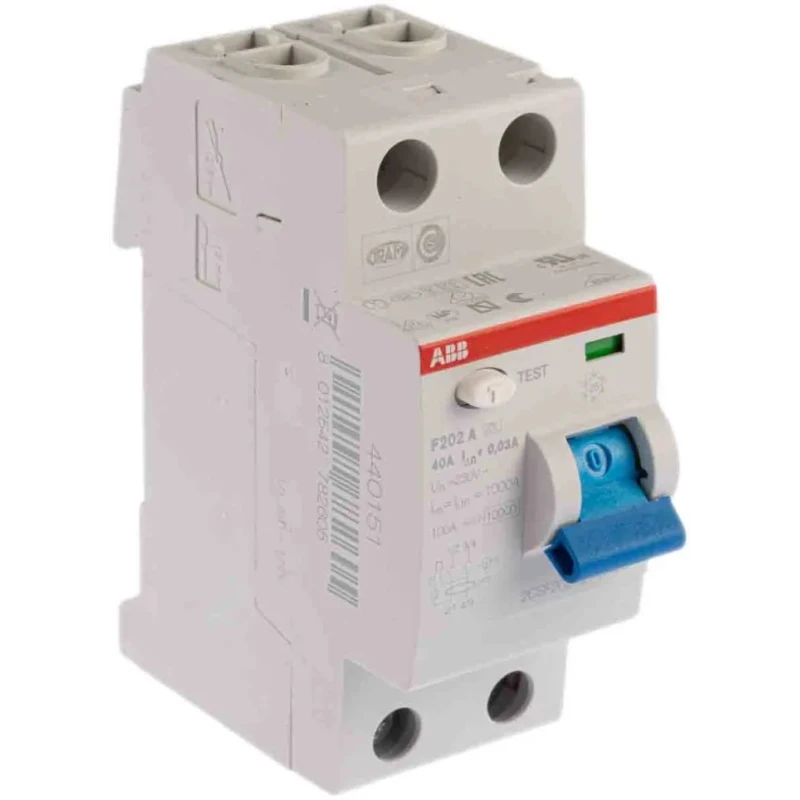

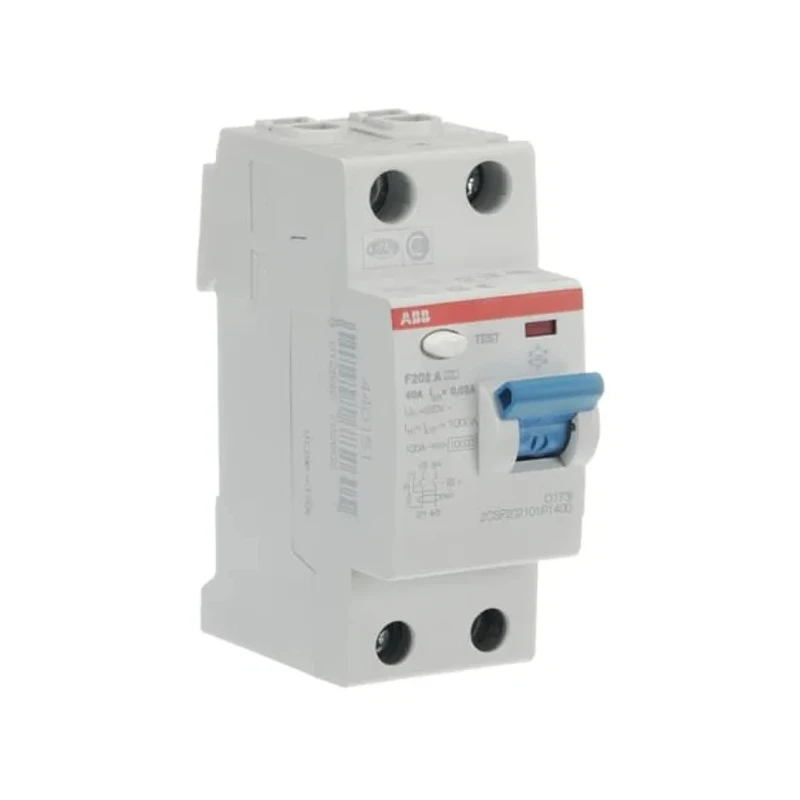

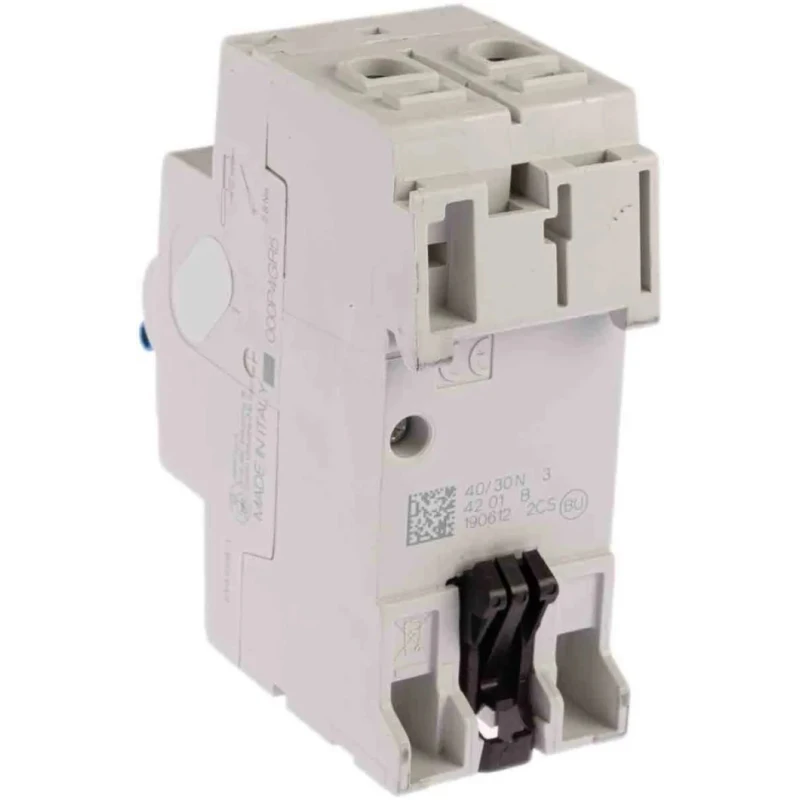

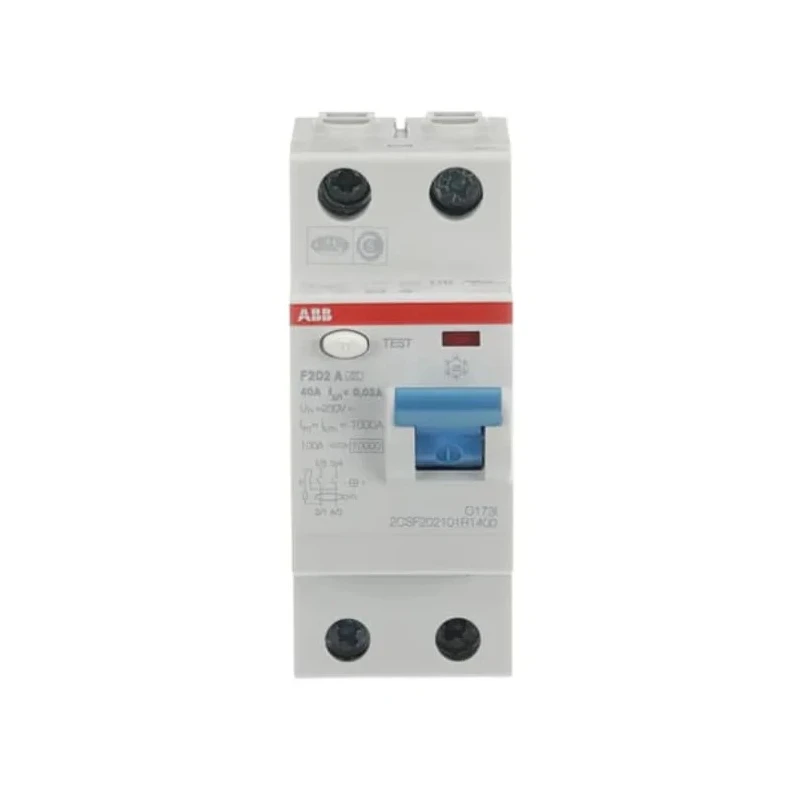

ABB F200 Series Residual Current Circuit Breaker 40A 2-Pole 30mA Type A 1kA 230V ac 2CSF202101R1400 - F202A-40/0.03

ABB 2CSF202101R1400-F202A-40/0.03 Residual Current Circuit Breaker (RCCB) in the F200 Series is engineered for safe protection of electrical circuits from earth faults and leakage currents. Rated at 40 amperes with a 2-pole design, this RCCB offers reliable protection with a trip sensitivity of 30mA and Type A tripping characteristics. It operates at a rated AC voltage of 230V ac and supports a breaking capacity of 1kA to safely interrupt fault currents.

Featuring a lever-type reset actuator and an easily accessible test button, the breaker allows quick manual reset and verification of operational status. Its compact form factor with dimensions 85mm height, 35mm width, and 69mm depth makes it ideal for installation within control panels on standard DIN rails, enabling fast and tool-free mounting.

The device includes an IP2X finger-safe rating, providing protection against inadvertent contact with internal live components. Designed to withstand operating temperature ranges from -25°C to +55°C, it assures dependable performance in various industrial, commercial, and residential applications. It complies with RoHS standards for environmental safety and carries UL recognition for electrical safety compliance.

Typical applications include protection in oil and gas plants, automotive assembly lines, packaging equipment, and other demanding process industries where electrical safety and earth leakage prevention are critical. The RCCB continuously monitors the current balance between live and neutral wires, instantly disconnecting power to prevent electric shock hazards and fire risks caused by leakage currents.

The device features a 2-pole configuration suitable for DIN rail mounting. It supports up to 1kA breaking capacity for safe circuit interruption. A lever-type reset actuator offers quick manual reset post-tripping. The breaker is equipped with a test button to easily verify functionality.

Designed to operate within -25°C to +55°C for durability in demanding environments. The front-facing toggle switch facilitates intuitive operation and resetting. IP2X finger-safe rating ensures protection against contact with larger solid objects.

Compliant with RoHS directives and UL recognized for electrical safety standards. Compact dimensions of 85mm height, 35mm width, and 69mm depth optimize panel space.

Manufactured in Italy, this ABB RCCB assures high quality and long service life. It is an essential component for ensuring electrical safety in industrial, construction, HVAC, manufacturing, and commercial electrical installations.
