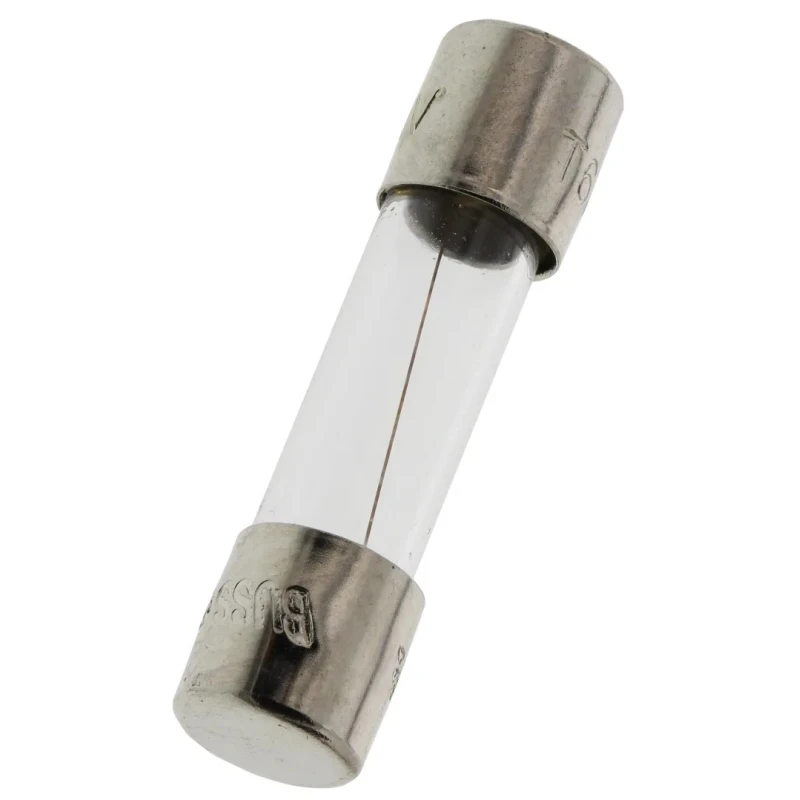

Eaton Glass Cartridge Fuse 630mA 250V AC Fast Acting 5 x 20 mm S506-630-R
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Diameter | 5mm |
| Brand | Eaton |
| Body Material | Glass |
| Model | S506-630-R |
| Overall Length | 20mm |
| Current Rating | 630mA |
| Series | S506 |
| Standards/Approvals | BSI, VDE, UL, SEMKO, IMQ, CSA, CCC |
| Fuse Characteristics | Fast Acting |
| Fuse Size | 5 x 20 mm |
| RS PRO 630mA T Glass Cartridge Fuse, 5 x 20 mmRS Stock No. | 610-9917Brand: RS PRO |
| RS PRO 630mA T Ceramic Cartridge Fuse, 5.2 x 20 mmBrand | RS PRO |
| Cooper Bussmann Cartridge FuseBrand | Cooper Bussmann |
Key Features
- This glass cartridge fuse provides clear visual indication of fuse status due to its transparent body.
- Its fast acting (T) fuse characteristic ensures rapid response to overcurrent events.
- The fuse has an overall length of 20 mm and a diameter of 5 mm, fitting standard 5 x 20 mm fuse holders.
- Rated for 250V AC operation, suitable for various electrical and electronic circuit applications.
- It offers low breaking capacity (LBC), designed for use in circuits with limited fault currents.
- The glass body material allows easy inspection while providing reliable circuit protection.
- It complies with standards such as BSI, VDE, UL, SEMKO, IMQ, CSA, and CCC for assured quality and safety.
- The fuse is ideal for protecting devices and internal circuits from short circuits and overcurrents.
Product Description
Eaton S506-630-R Glass Cartridge Fuse is a 630mA, 250V AC fast acting cartridge fuse measuring 5 x 20 mm. Featuring a transparent glass body, this fuse allows easy visual inspection of the fuse element to determine if it has blown.
Designed for industrial, electrical, automation, and electronics applications, this fuse is used to protect sensitive components and internal circuitry against overcurrent and short circuit damage. Its fast acting (T) characteristic provides quick reaction to excessive currents, making it suitable for circuits requiring reliable and timely protection.
The 5 mm diameter and 20 mm length conform to standard fuse holder sizes widely used in boards and panels, ensuring straightforward replacement and compatibility.
This fuse handles up to 250 volts AC and has a low breaking capacity (LBC), which is the maximum current it can safely interrupt without rupturing. It is particularly suited for use in applications with limited fault current levels.
Constructed from a durable glass body, the fuse element is easily visible, simplifying troubleshooting and maintenance in electrical and electronic systems. This glass Cartridge Fuse allows visual confirmation whether fuse element is intact.
Fast acting (T) fuse rating provides surge tolerance for short high current bursts. Standard size of 5 x 20 mm fits standard fuse holders in panels and devices. Rated for 630mA current at 250V AC for effective circuit protection.
Low Breaking Capacity (LBC) suitable for circuits with controlled fault currents. Compliance with international standards including BSI, VDE, UL, SEMKO, IMQ, CSA, and CCC. Ideal for protecting electrical devices, circuits, and equipment from damage due to overcurrent.
It is a reliable and essential component for electrical safety in industrial, laboratory, automation, HVAC, manufacturing, and electronic circuit applications. Explore more high-quality fuses and electrical safety products in the Electronics & Electricals section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton glass cartridge fuse is rated for 630mA.
This model is rated for operation at 250V AC.
The fuse measures 5 mm in diameter and 20 mm in overall length, conforming to standard sizes.
It features a fast acting (T) fuse characteristic, ensuring quick response to overcurrent events.
The body of the fuse is made from glass, allowing for easy visual inspection of the fuse element.
It complies with several standards including BSI, VDE, UL, SEMKO, IMQ, CSA, and CCC.
No, it is designed for use in circuits with limited fault currents due to its low breaking capacity (LBC).
It is suitable for protecting sensitive components and internal circuitry in industrial, electrical, automation, and electronics applications.
The transparent body allows for easy visual inspection to determine if the fuse has blown, simplifying troubleshooting.
This fuse fits standard 5 x 20 mm fuse holders commonly used in various electrical panels and devices.
The fast acting characteristic provides surge tolerance for short high current bursts, ensuring timely protection against overcurrents.
The country of origin for this fuse is China.
