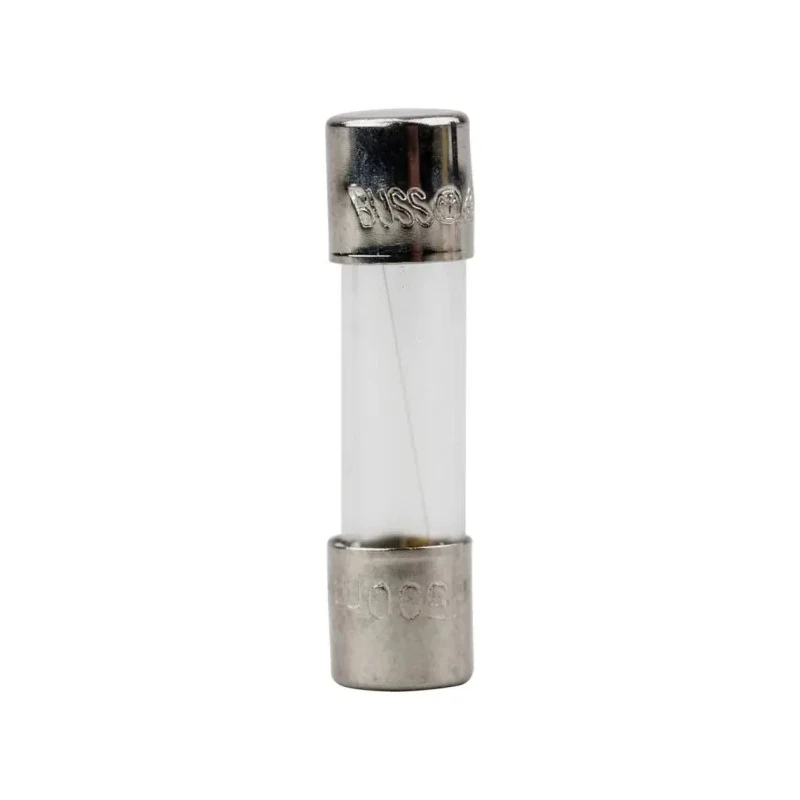

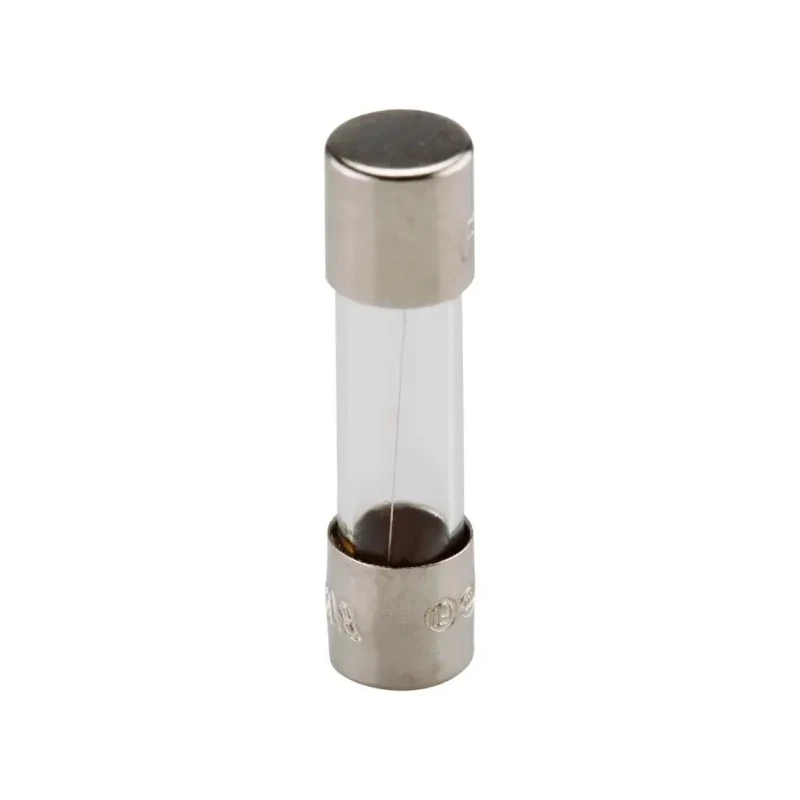

Eaton Cartridge Fuse 500mA Fast Acting Glass Cartridge Fuse 5 x 20 mm 250V AC S500-500-R
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Diameter | 5mm |
| Brand | Eaton |
| Body Material | Glass |
| Model | S500-500-R |
| Overall Length | 20mm |
| Current Rating | 500mA |
| Series | S500 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | VDE, IMQ, SEMKO, BSI, CCC, CSA |
| Fuse Characteristics | Fast Acting |
| Fuse Size | 5 x 20 mm |
| Application Category | Fast Acting |
| RS PRO 500mA F Glass Cartridge Fuse, 5 x 20 mmRS Stock No. | 563-463Brand: RS PRO |
| Quick blow F LBC min fuse,500mA 5x20mmBrand | Cooper Bussmann |
| RS PRO 500mA F Glass Cartridge Fuse, 5 x 20 mmBrand | RS PRO |
Key Features
- This fuse features a fast-acting element for rapid fault interruption.
- It operates with a current rating of 500mA and voltage up to 250V AC.
- The fuse has a compact 5 x 20 mm glass body allowing clear visual inspection.
- Suitable for operating temperatures ranging from -40°C to +125°C.
- Recognized international safety approvals include VDE, IMQ, SEMKO, BSI, CCC, and CSA.
- Used in control and automation modules to safeguard low-current supplies and electronics.
- Designed for inline fuse holders and low-profile 5x20mm fuse clips.
- Fast blow characteristic ensures quick clearance of short-duration overcurrents.
Product Description
The Eaton S500-500-R is a 500mA fast-acting glass cartridge fuse designed for low-voltage electrical and electronic systems operating at 250V AC. Its compact 5 x 20 mm glass body allows for visual inspection of the fuse element to identify blown conditions without disassembly.
It features a fast-blow element providing rapid fault interruption, crucial for protecting sensitive circuitry and preventing downstream damage in electronic and automation applications. The fuse operates reliably within a wide temperature range from -40°C to +125°C, ensuring consistent performance in varied environmental conditions.
This Cartridge Fuse carries multiple internationally recognized safety approvals including VDE, IMQ, SEMKO, BSI, CCC, and CSA, ensuring compliance and acceptance worldwide.
Commonly used in control and automation modules, measurement and sensor circuits, and small power supplies, the S500-500-R fits standard 5 x 20 mm inline fuse holders and low-profile fuse clips, making it a versatile protection solution.
Fast acting element for rapid fault interruption. 500mA current rating suitable for low-current electronic circuits. Glass body construction permits visual inspection of the fuse element. Operating temperature range from -40°C to +125°C for reliable performance.
Recognized certifications from VDE, IMQ, SEMKO, BSI, CCC, and CSA guarantee safe use globally. Ideal for use in automation and control systems requiring fast clearance. Compatible with standard 5 x 20 mm fuse clips and inline holders.
Compact design minimizes space usage on PCBs and assemblies.
This fuse is essential for industrial, electronic manufacturing, automation, and laboratory environments where effective overcurrent protection is critical. It supports reliable operation in sensitive applications by clearing faults rapidly and minimizing circuit damage.
Browse the Electronics & Electricals category on EnvMart for more Eaton fuses and protective components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton S500-500-R fuse has a current rating of 500mA.
This cartridge fuse operates at a voltage rating of 250V AC.
The fuse has a diameter of 5mm and an overall length of 20mm, conforming to the 5 x 20 mm size specification.
The fuse operates reliably within a temperature range from -40°C to +125°C.
The fuse features a glass body, allowing for visual inspection of the fuse element.
This fuse carries multiple internationally recognized safety approvals including VDE, IMQ, SEMKO, BSI, CCC, and CSA.
It has a fast-acting characteristic, providing rapid fault interruption.
This fuse is commonly used in control and automation modules, measurement and sensor circuits, and small power supplies.
Yes, it is designed to fit standard 5 x 20 mm inline fuse holders and low-profile fuse clips.
The fast blow characteristic ensures quick clearance of short-duration overcurrents, protecting sensitive circuitry from damage.
The country of origin for this fuse is China.
This fuse is part of the S500 series.
