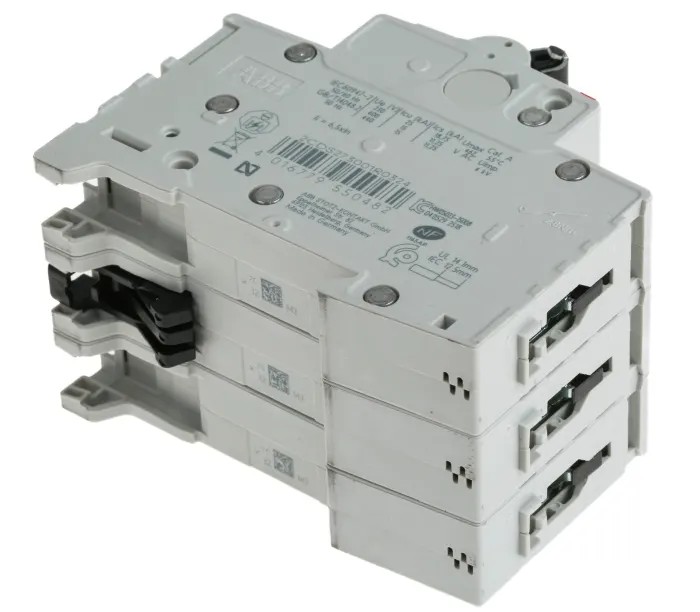

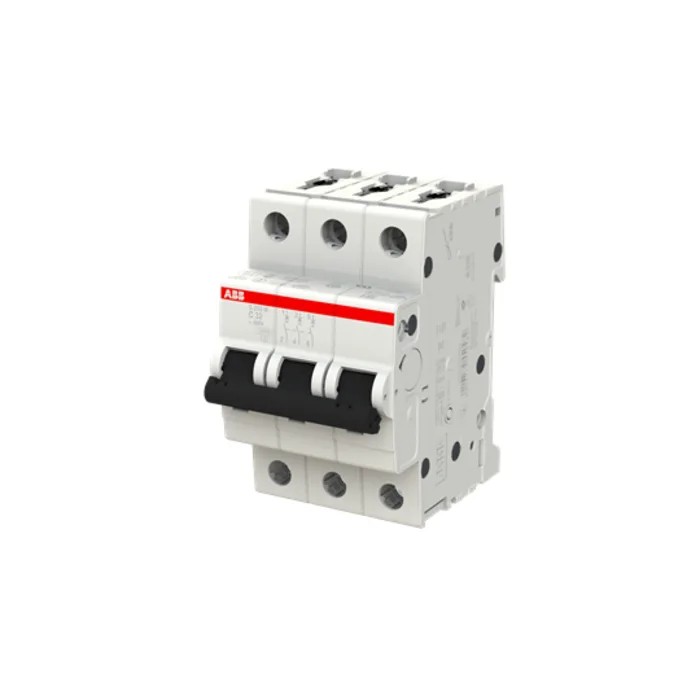

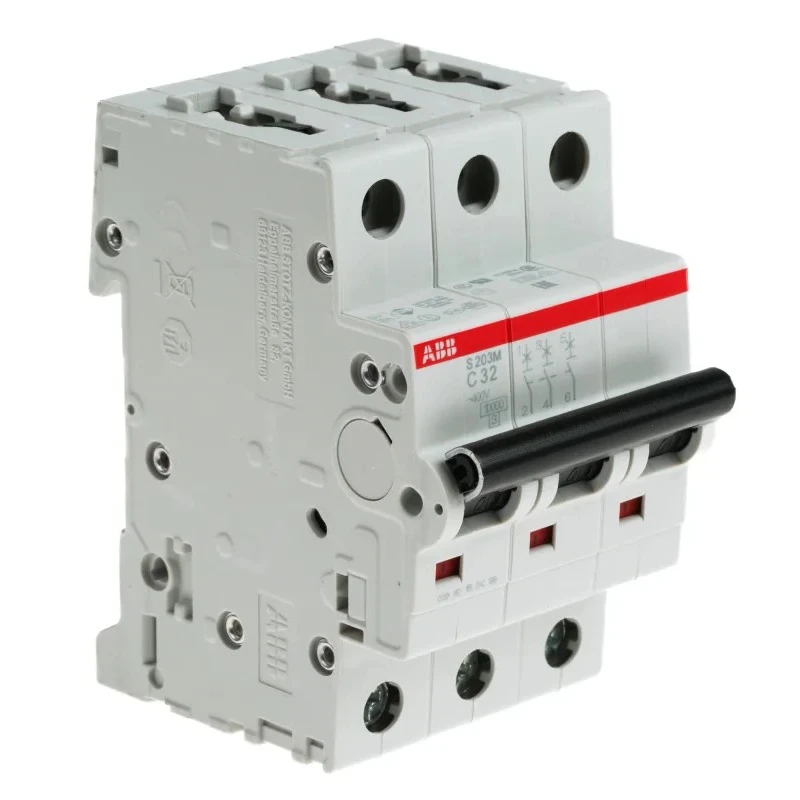

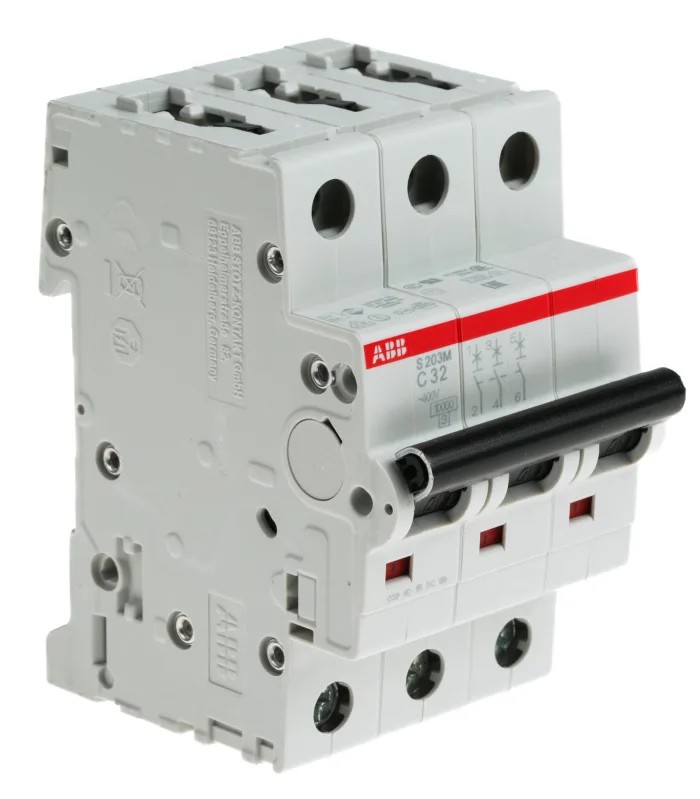

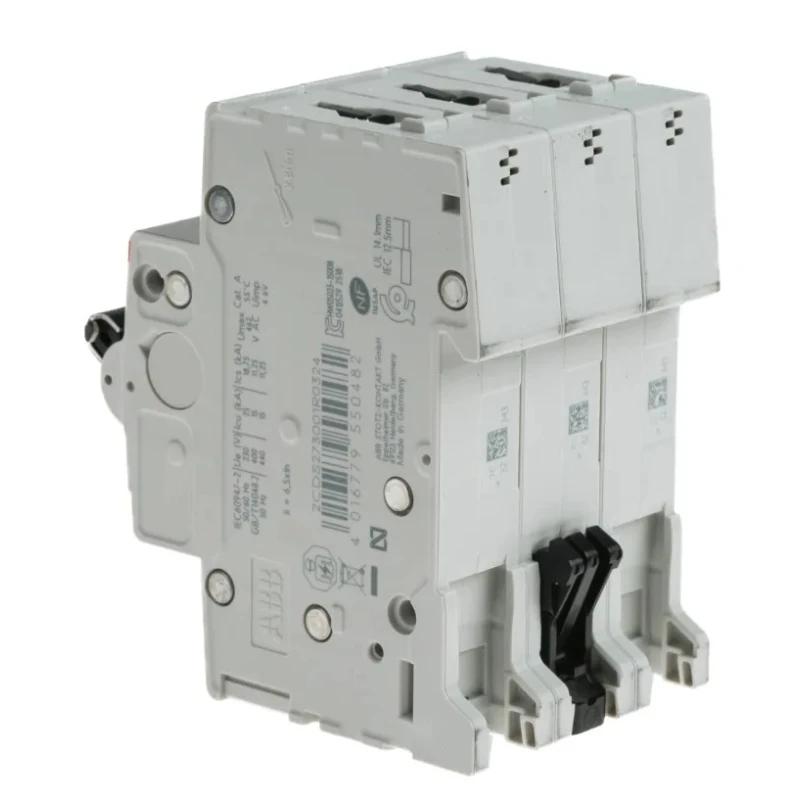

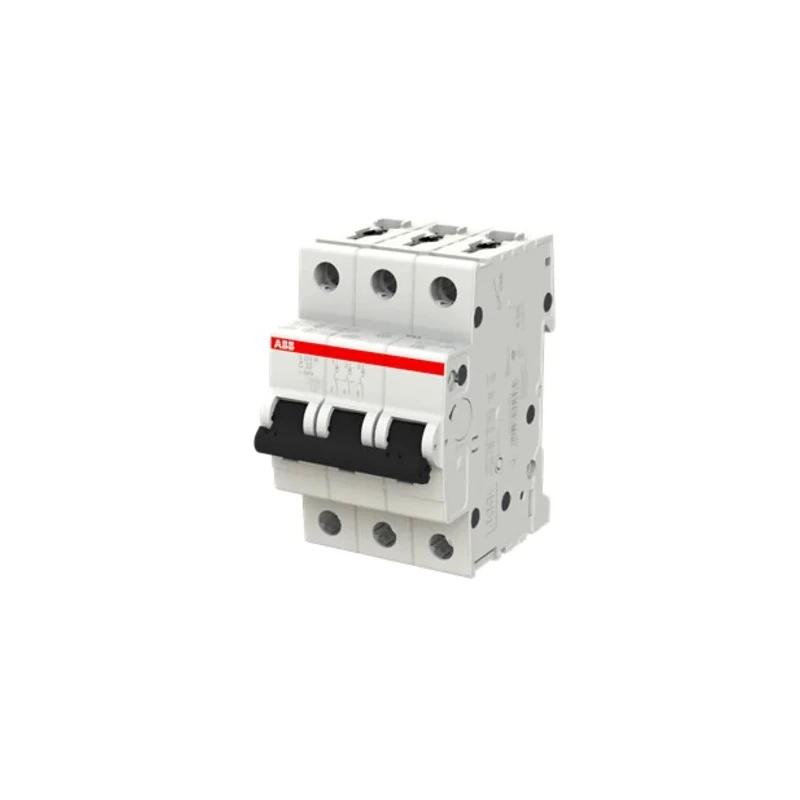

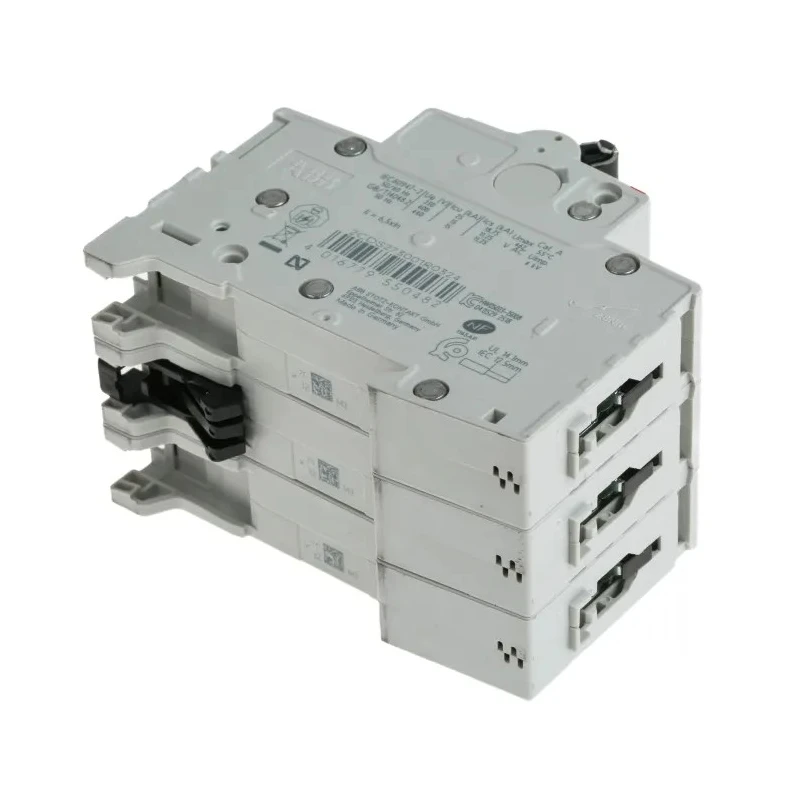

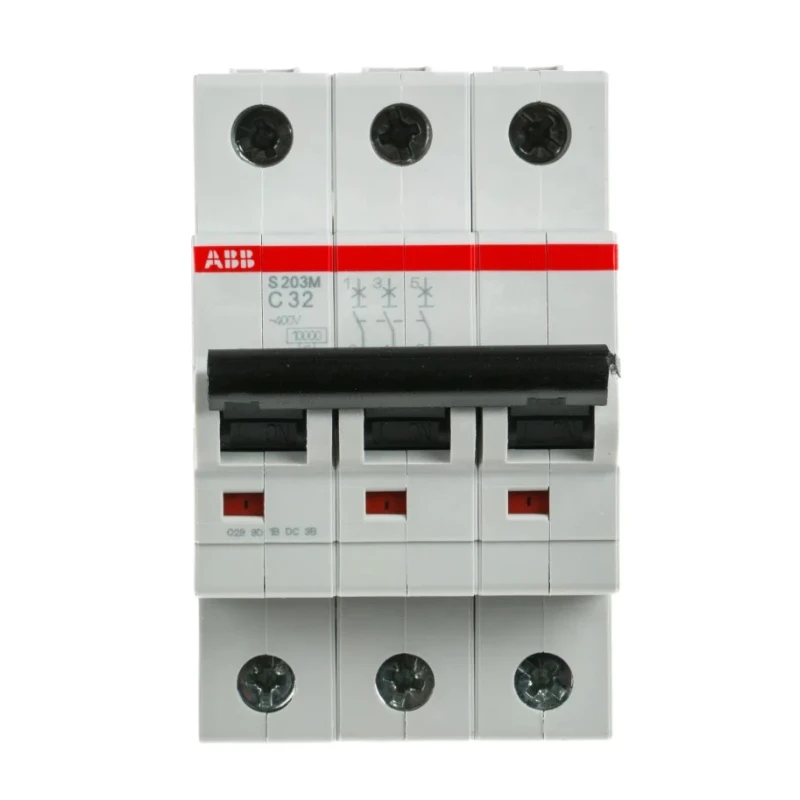

ABB System Pro M Compact Miniature Circuit Breaker 3-Pole 32A Type C 440V AC 12V DC 10kA Breaking 2CDS273001R0324 S203M-C32
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 85mm |
| Model | 2CDS273001R0324 S203M-C32 |
| Depth | 76mm |
| IP Rating | IP40, IP20 |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Current Rating | 32A |
| Series | S200M |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Rated AC Voltage | 440V ac |
| Rated DC Voltage | 12V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal |
| 3 pole type C MCB,10kA 32ABrand | Hager |
| Type C 3pole MCB,32A 10kA break capacityBrand | ABB |
Key Features
- Equipped with thermal tripping mechanism for reliable operation.
- Supports DIN Rail mounting for versatile installation.
- High breaking capacity of 10kA ensures superior safety.
- Rated for 440V AC and 12V DC voltages.
- Compact dimensions allow efficient space utilization.
- IP20 housing provides touch protection against objects larger than 12mm.
- Suitable for industrial heating, lighting, and textile industry applications.
- Mechanical endurance up to 20,000 operations for long-lasting use.
Product Description
ABB's 2CDS273001R0324 S203M-C32 System Pro M Compact Miniature Circuit Breaker is a high-performance electrical protection device designed for industrial and commercial applications. This 3-pole breaker delivers a rated current of 32A with Type C tripping characteristics, making it ideal for circuits with moderate inrush currents such as motor controls and fluorescent lighting.
The breaker supports both AC and DC voltages, rated at 440V AC and 12V DC respectively, and features a high breaking capacity of 10kA to safeguard systems against short circuits and overloads. Its compact design with dimensions 85mm height, 52.5mm width, and 76mm depth allows for efficient panel space utilization while DIN rail compatibility simplifies mounting.
Constructed to withstand harsh environments, it offers an operating temperature range from -40°C to +70°C and robust mechanical endurance of 20,000 operations. The IP20 rated housing ensures protection against accidental contact with live parts while the screw-type terminals accept conductor sizes from 18 to 8 AWG for easy wiring.
This Miniature Circuit Breaker complies with key international standards such as IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA 22.2 No. 235, ensuring reliable and safe operation. Typical applications include industrial heating systems, lighting controls, textile mills, and power generation plants. The device can be mounted in any position on a DIN rail to accommodate varied panel configurations.
Equipped with a thermal tripping mechanism for precise overload protection. Compact System Pro M Compact series design for space-saving installation. High breaking capacity of 10kA supports demanding electrical environments.
Rated for 440V AC and 12V DC voltages. IP20 touch protection ensures user safety. Durable mechanical endurance of 20,000 operations. Complies with IEC/EN and UL safety standards. Suitable for industrial heating, lighting, textile, and power generation applications.
DIN rail mountable for easy installation. Explore more quality circuit protection products from ABB and related categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated current of this miniature circuit breaker is 32A.
This model has a breaking capacity of 10kA, which helps protect against short circuits and overloads.
It is rated for 440V AC and 12V DC voltages.
This circuit breaker supports DIN rail mounting, allowing for versatile installation options.
The dimensions of this circuit breaker are 85mm in height, 52.5mm in width, and 76mm in depth.
This model features Type C tripping characteristics, suitable for circuits with moderate inrush currents.
The operating temperature range for this circuit breaker is from -40°C to +70°C.
It uses screw-type terminals that accept conductor sizes from 18 to 8 AWG for easy wiring.
This circuit breaker has a mechanical endurance of up to 20,000 operations.
This model has an IP20 rating, providing touch protection against objects larger than 12mm.
It is suitable for applications in industrial heating, lighting controls, textile mills, and power generation plants.
This circuit breaker complies with IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA 22.2 No. 235 standards.
