ABB System Pro M Compact Miniature Circuit Breaker 4-Pole 20A Type C 400V AC 6 kA Breaking 2CDS244701R0204
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 85mm |
| Model | 2CDS244701R0204 |
| Depth | 88mm |
| IP Rating | IP20, IP40 |
| Width | 69mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | System Pro M Compact |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 4 |
| Standards/Approvals | IEC/EN 60898-1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Electromagnetic, Thermomagnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Provides reliable overload and short circuit protection with Type C tripping characteristics.
- Operates at a rated voltage of 400V AC for versatile applications.
- Compact design compatible with DIN rail mounting system.
- Robust breaking capacity of 6 kA ensures safety during fault interruption.
- Equipped with screw terminals for secure electrical connections.
- Rated for 20,000 electrical cycles, ensuring durability and long service life.
- Suitable for commercial, residential, and industrial electrical systems.
- IP20 and IP40 rated for protection against solid objects and limited ingress of water.
Product Description

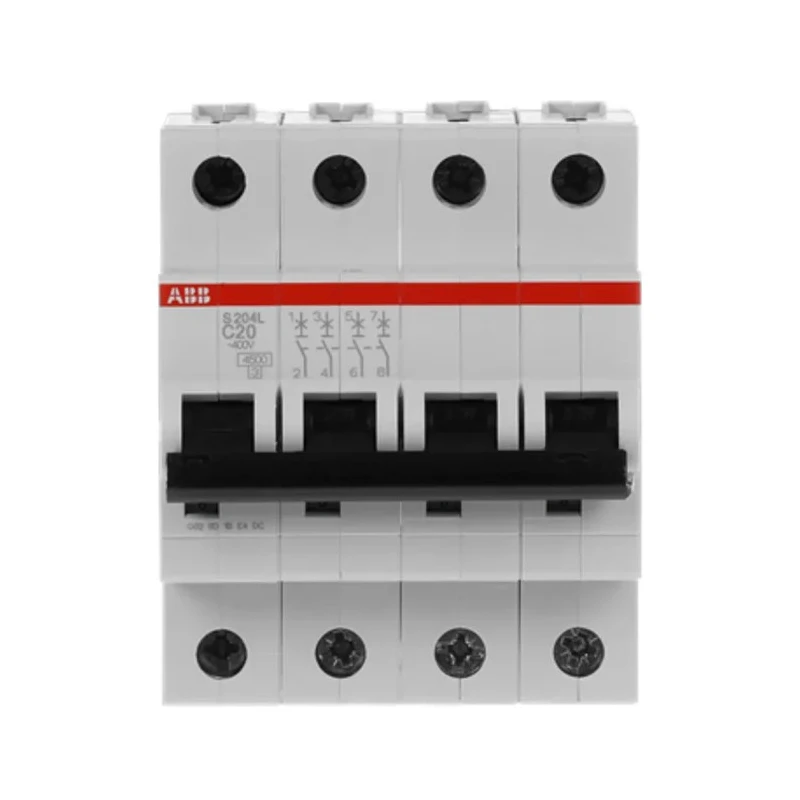

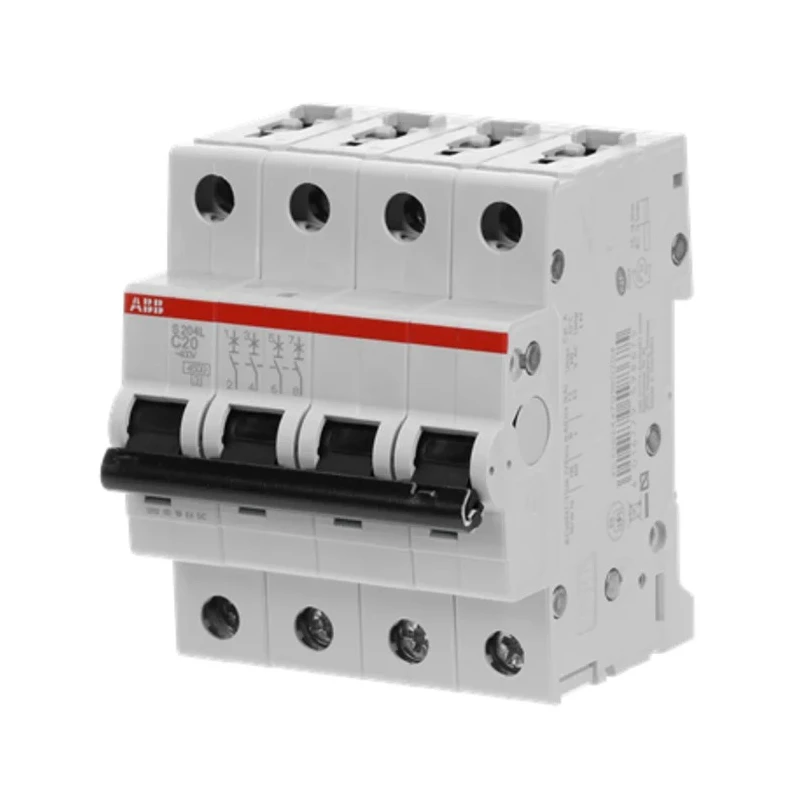

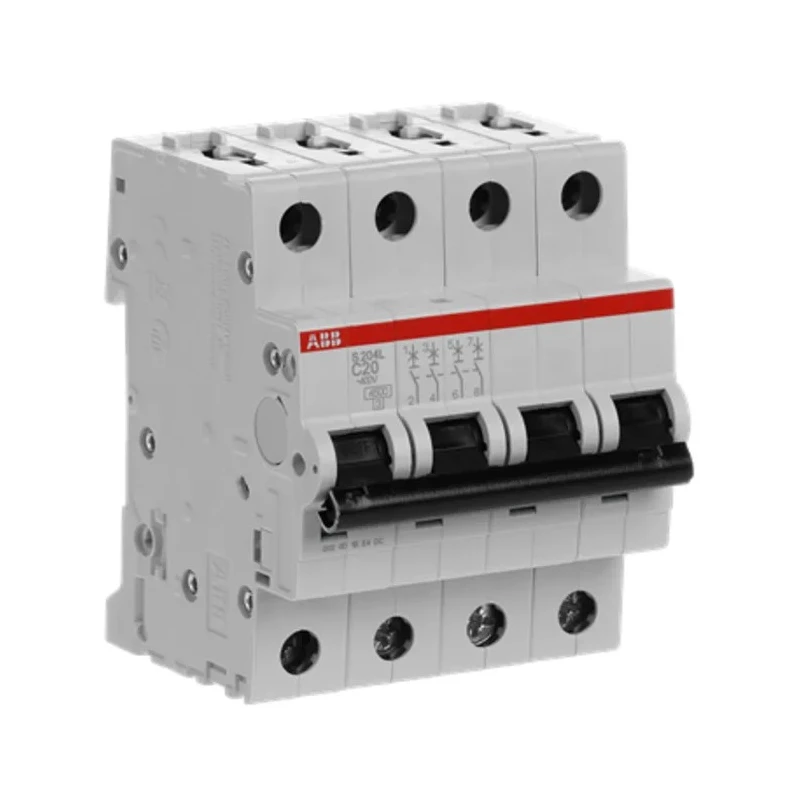

ABB 2CDS244701R0204 System Pro M Compact Miniature Circuit Breaker is a high-performance electrical protection device with a 4-pole configuration and a current rating of 20A. It operates at a rated AC voltage of 400V and features a Type C tripping characteristic optimized for general purpose use including motor load protection. With a compact and robust design, this MCB mounts easily on standard DIN rails, making it suitable for efficient installation in various electrical panels.
This circuit breaker boasts a breaking capacity of 6 kA, providing reliable interruption of short circuits to safeguard electrical circuits and connected devices. Its electromagnetic and thermomagnetic tripping mechanisms enable quick response to electrical faults, enhancing safety in residential, commercial, and industrial environments.
Designed to endure harsh conditions, the device supports ambient temperature operation from -25 °C to +55 °C and features an IP rating of IP20 and IP40 for protection against dust and limited water ingress. The MCB comes with screw terminals to ensure secure and stable electrical connections.
Common applications include circuit protection in multi-connection residential electrical panels, commercial installations requiring multiple poles, and industrial systems with rigorous overload protection needs. The device conforms to IEC/EN 60898-1 standards, guaranteeing quality and safety compliance.
Installation and maintenance are simplified by the toggle switch reset actuator, providing intuitive manual operation. The MCB is rated for 20,000 electrical cycles, offering long-term reliability and consistent performance throughout its service life.
Reliable overload and short circuit protection. Compact DIN rail mounting design. High breaking capacity of 6 kA for fault interruption. Compatible with System Pro M Compact series. Suitable for commercial, residential, and industrial applications.
IP20 and IP40 rated for environmental protection. Conforms to IEC/EN 60898-1 standards. Durable toggle switch for reset functionality. Explore our extensive range of Miniature Circuit Breakers in the System Pro M Compact category at EnvMart for enhanced electrical safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 6 kA, which ensures reliable interruption of short circuits.
It operates at a rated voltage of 400V AC, making it suitable for various applications.
This unit features a 4-pole configuration, allowing it to manage multiple circuits effectively.
It has Type C tripping characteristics, which are optimized for general-purpose use, including motor load protection.
This model is designed for DIN rail mounting, facilitating efficient installation in electrical panels.
The device supports an ambient temperature operation range from -25 °C to +55 °C.
It is equipped with screw terminals, ensuring secure and stable electrical connections.
The dimensions are 85mm in height, 69mm in width, and 88mm in depth.
It conforms to IEC/EN 60898-1 standards, ensuring quality and safety compliance.
This unit is rated for 20,000 electrical cycles, providing long-term reliability.
It has IP20 and IP40 ratings, offering protection against solid objects and limited water ingress.
It is suitable for commercial, residential, and industrial electrical systems, providing overload and short circuit protection.
