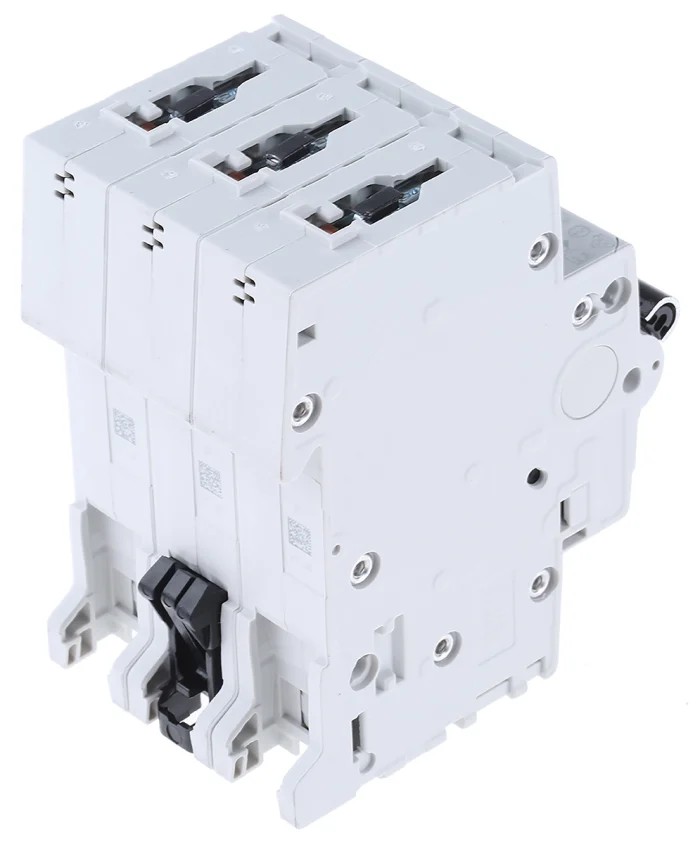

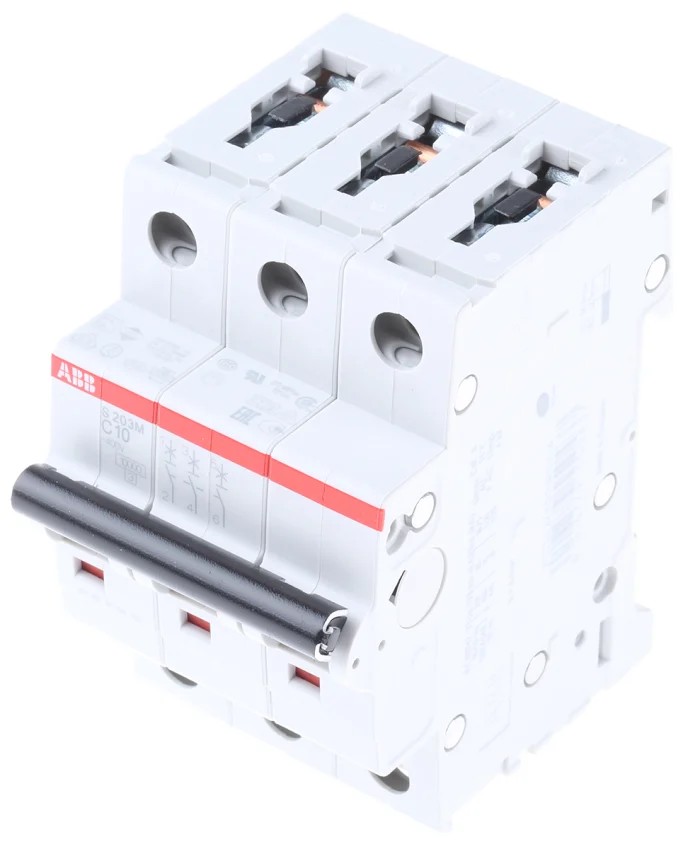

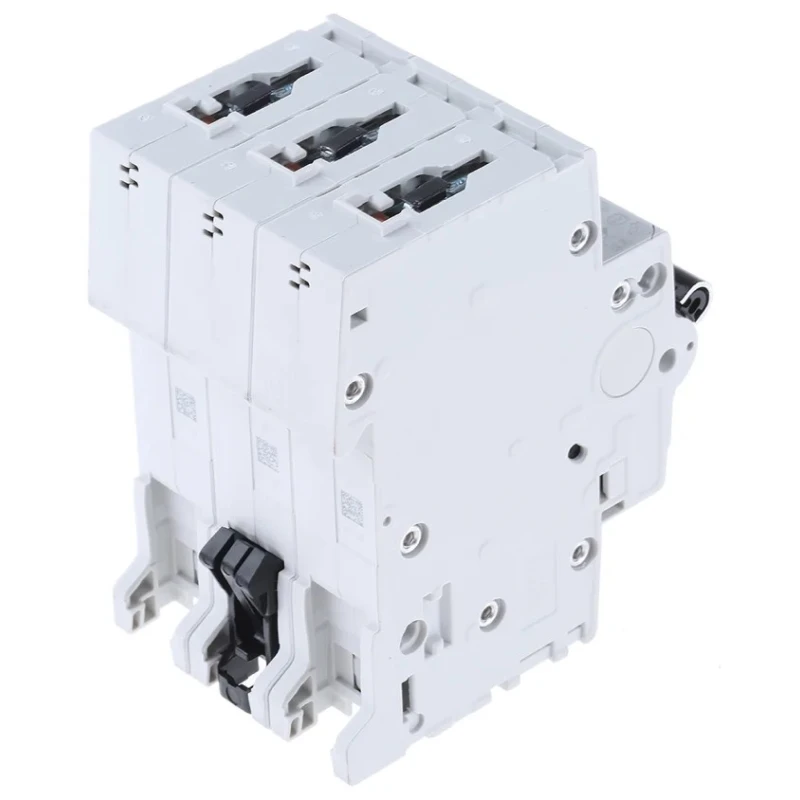

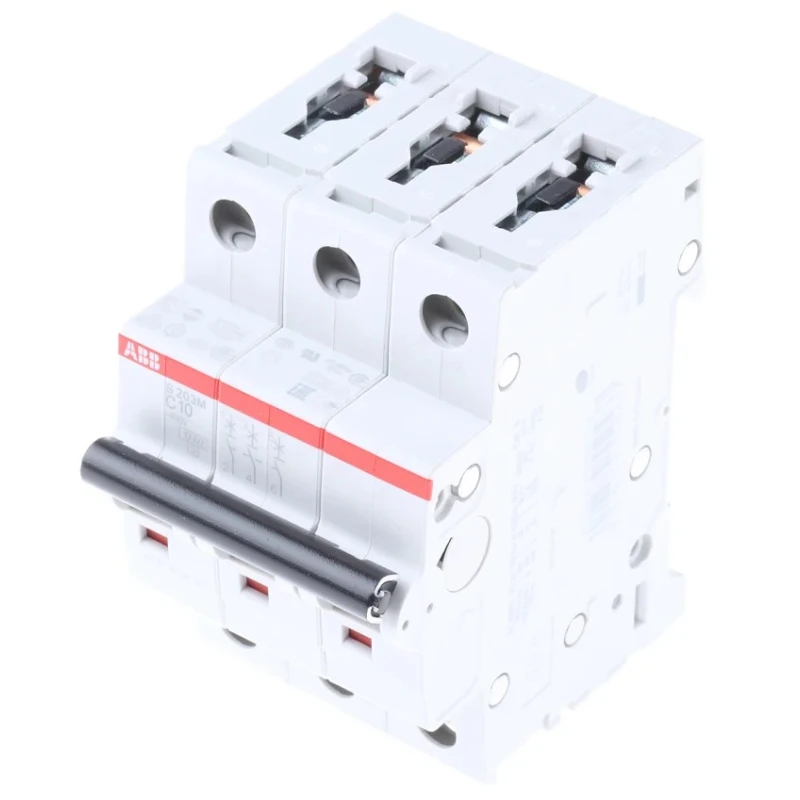

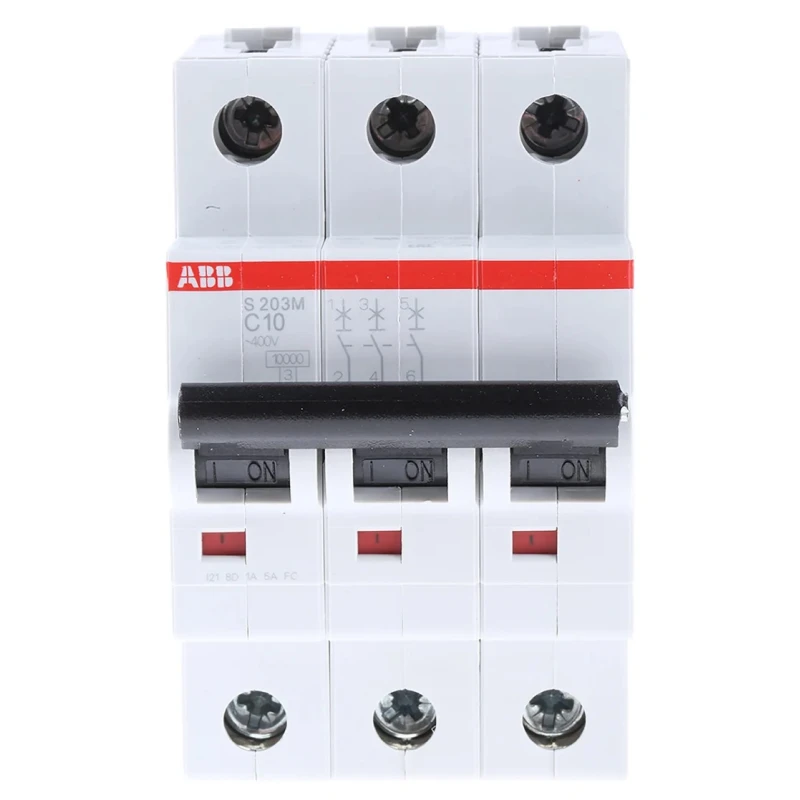

ABB System Pro M Compact Miniature Circuit Breaker 3-Pole 10A Type C 440V AC 12V DC 10kA Breaking 2CDS273001R0104 S203M-C10

ABB 2CDS273001R0104 S203M-C10 System Pro M Compact Miniature Circuit Breaker (MCB) is engineered for superior protection of electrical circuits in industrial, commercial, and residential installations. It features a compact design with 3 poles and a current rating of 10A, suited for various power setups requiring robust overload and short circuit protection.

This MCB provides Type C tripping characteristics, ideal for applications with inductive loads such as motors and transformers, ensuring selective tripping between 5 and 10 times the rated current. Its thermal tripping mechanism combined with a toggle switch reset actuator allows for straightforward manual reset and maintenance.

The unit supports a rated AC voltage of 440V and DC voltage of 12V, with a high breaking capacity of 10kA to safely interrupt fault currents and protect connected equipment. The device mounts easily on standard DIN rails and uses secure screw terminals for connection, facilitating installation and maintenance.

Designed with IP20 protection rating, it's resistant to shock and vibration, guaranteeing stable performance in challenging industrial and manufacturing environments. The contact indicator visually displays the breaker status with green for ON and red for OFF, aiding in quick operational checks.

Conforming to IEC/EN 60898-1 and IEC/EN 60947-2 standards, this ABB MCB assures compliance with international safety and functional regulations. Its compact dimensions (88mm height, 52.5mm width, 69mm depth) allow fitting in compact switchboards and control panels.

With a mechanical service life rated at 20,000 operating cycles and an operational temperature range of -25°C to +55°C, it offers durability and reliable protection in entertainment venues, packaging plants, lighting fixtures, electrical engineering setups, and more.

Designed for mounting on DIN rails with screw terminals for secure installation. Type C tripping characteristic provides protection for circuits with inductive loads. Thermal tripping mechanism with toggle switch reset actuator for reliable operation.

Supports rated AC voltage of 440V and DC voltage of 12V with 10kA breaking capacity. Compact dimensions with 88mm height, 52.5mm width, and 69mm depth suitable for tight installations. Shock and vibration resistant making it ideal for demanding industrial environments.

Complies with IEC/EN 60898-1 and IEC/EN 60947-2 international standards for safety and performance. Contact indication shows green when ON and red when OFF for easy status monitoring. Mechanical service life rated for 20,000 cycles ensuring long-term reliability.

Operating temperature range from -25°C to +55°C for versatile applications. Explore the ABB brand on EnvMart for a comprehensive range of electrical protection solutions and accessories to enhance safety and reliability in your electrical systems.
