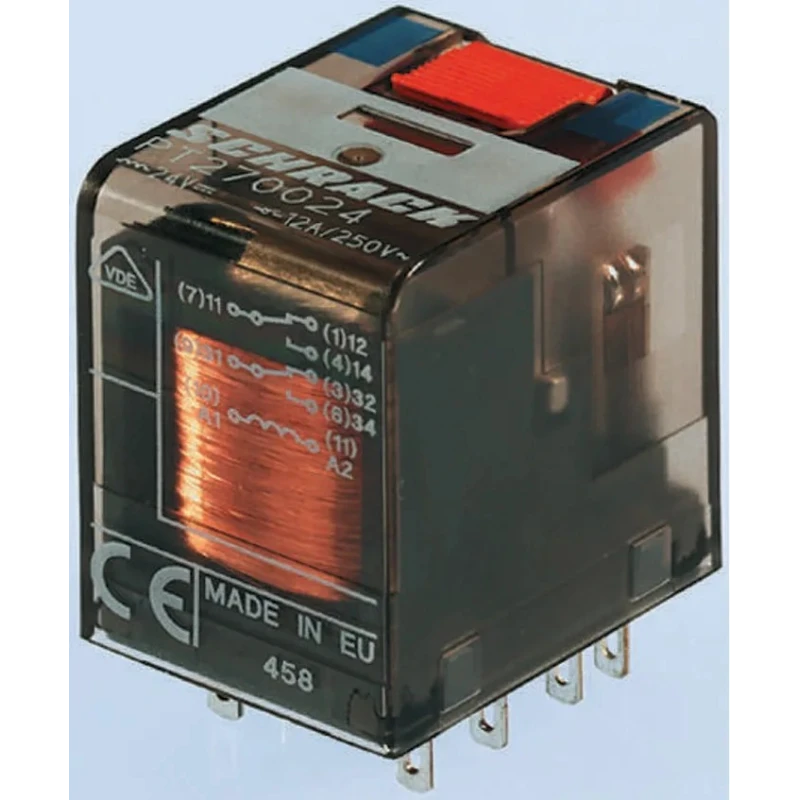

TE Connectivity PCB Power Relay 24V DC Coil 12A Switching Current DPDT PT270L24 9-1415001-1
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 35mm |
| Length | 28mm |
| Model | PT270L24 9-1415001-1 |
| Width | 22.5mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Quick Connect |
| Standards/Approvals | VDE, UL, RoHS, IEC |
| Coil Resistance | 777Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 741mW |
Key Features
- Compact dimensions of 22.5mm width, 28mm length, and 35mm height ensure easy PCB mounting.
- Silver nickel alloy contacts provide reliable switching performance and long mechanical life.
- Coil resistance of 777 ohms with coil power consumption of 741mW for efficient operation.
- Designed for operating temperatures from -40°C to 70°C for industrial reliability.
- Quick connect terminal type for secure and convenient wiring.
- Rated switching AC voltage up to 400V AC and switching power of 3kVA.
- Compliant with VDE, UL, RoHS, and IEC standards for safety and environmental compliance.
- Product manufactured in Austria ensuring quality and performance.
Product Description
TE Connectivity PT270L24 9-1415001-1 PCB Power Relay is engineered for industrial and electrical applications requiring dependable switching capabilities. This relay operates with a 24V DC coil voltage and supports a switching current of 12A, configured in a DPDT (Double Pole Double Throw) contact arrangement suitable for complex circuit designs.
The device measures 22.5mm in width, 28mm in length, and 35mm in height, making it ideal for PCB mount installations where space optimization is critical. Its silver nickel alloy contact material enhances durability and ensures electrical reliability over prolonged use.
With a coil resistance of 777Ω and coil power rated at 741mW, this relay is energy-efficient while providing stable operation. It is suitable for wide temperature conditions ranging from -40°C up to 70°C, assuring performance in harsh industrial environments.
Featuring quick connect terminals, the relay facilitates easy and secure wiring connections, reducing installation time and maintenance effort. Its switching power rating of 3kVA at up to 400V AC enables handling of demanding electrical loads.
Certified and compliant with VDE, UL, RoHS, and IEC standards, this relay meets international safety and environmental requirements. Manufactured in Austria, it is a trusted component for electronic assemblies in automation, control, and signal conditioning sectors.
Compact dimensions for space-efficient PCB mounting. Durable silver nickel alloy contacts ensure long service life. Low coil power consumption with 777 ohms resistance. Wide operating temperature range from -40°C to 70°C.
Quick connect terminals for ease of installation. Supports 12A switching current with DPDT configuration. Compliant with multiple industrial safety and environmental standards. Manufactured in Austria for assured quality.
This PCB Power Relay from TE Connectivity is ideal for use in industrial machines, electrical control systems, automation equipment, and other applications requiring reliable, compact, and efficient relay solutions. Browse more products in the Power Relays category at EnvMart for comprehensive electrical components.
