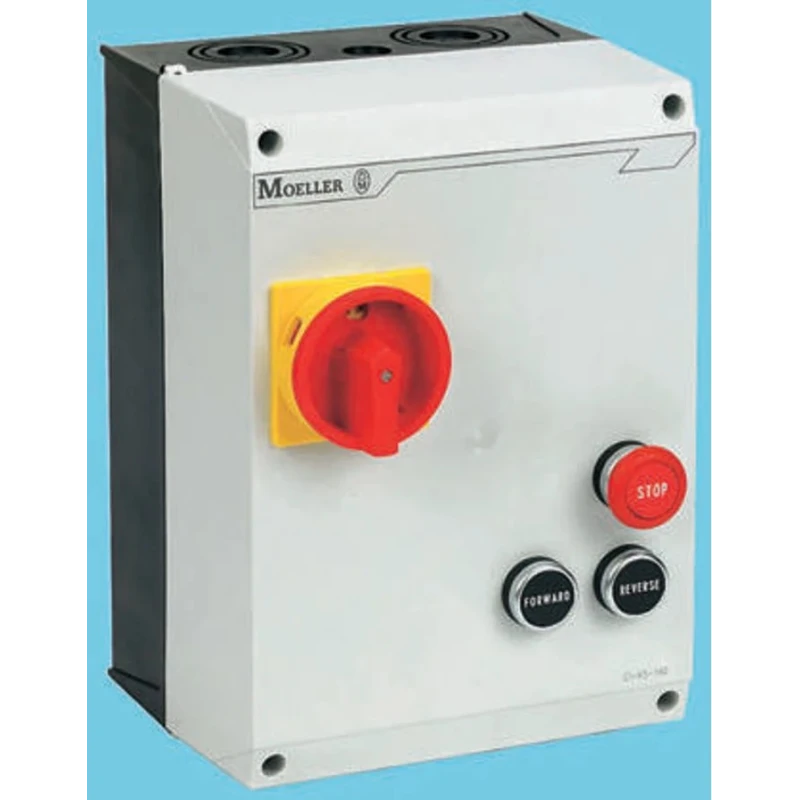

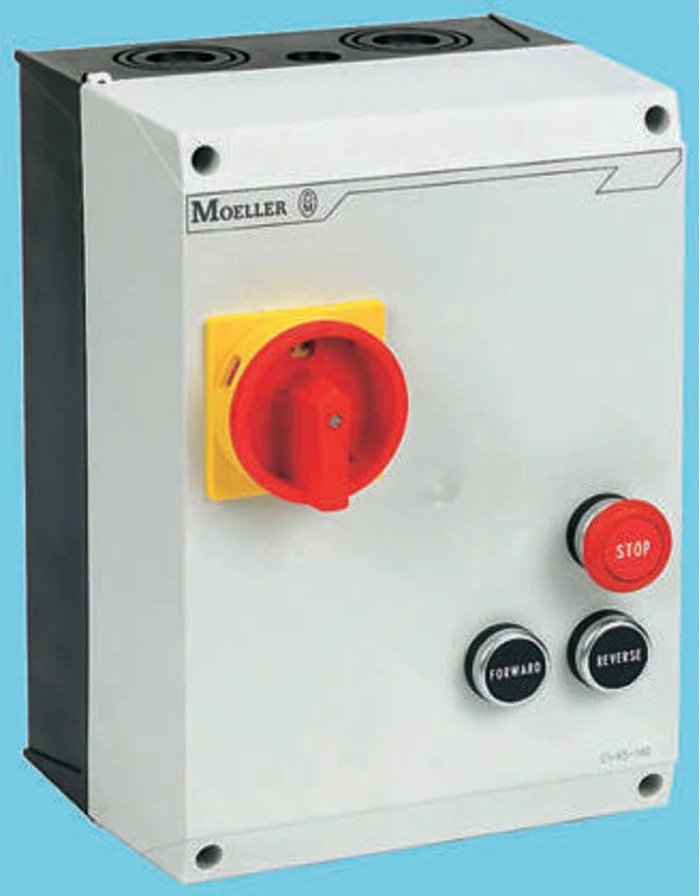

Eaton DOL Starter 3 Phase Surface Mount IP65 Enclosure 4 kW 400V AC XDRP 118537 XDRP4/I(400V50HZ,440V60HZ)

Eaton 118537 XDRP4/I(400V50HZ,440V60HZ) DOL Starter is an industrial grade three phase motor starter designed for 4 kW motors operating at 400V AC. This device features a highly durable IP65 rated polycarbonate enclosure with a light grey lid and black base to protect against dust and water ingress, making it suitable for demanding manufacturing, automation, and electrical applications.

The reversing direct-on-line (DOL) starter includes AC-3 rated triple pole contactors and a triple pole switch disconnector offering reliable mechanical and electrical isolation. The disconnector provides a facility for up to three padlocks, enhancing safety during maintenance and lockout/tagout procedures.

The enclosure is surface mount type, designed for easy installation in motor control centers or electrical cabinets. It measures 280 mm in length, 200 mm in width, and 160 mm in depth, optimizing space usage.

Pre-wired receptacles allow for integration of ZB12 thermal overload relays, which provide thermal overload protection and sensitive single phase detection in accordance with IEC 947-4 standards. The overload relay is sold separately enabling customization according to motor requirements.

This reversing DOL starter meets the isolation and switching requirements of the IEE Regulations, 16th Edition providing compliance for industrial electrical installations. The enclosure design aids in safe operation and longevity of connected motors across industrial, manufacturing, HVAC, and automation sectors.

The starter features a robust IP65 polycarbonate enclosure with light grey lid and black base for enhanced protection. Equipped with AC-3 rated triple pole contactors and switch disconnectors for reliable switching operation.

Includes IP65 rated Stop, Forward, and Reverse push buttons with provisions for up to three padlocks on the disconnector. The enclosure is pre-wired to accept ZB thermal overload relays offering single phase sensitivity compliant with IEC 947-4.

Reversing DOL starter suitable for compliance with IEE Regulations, 16th Edition on isolation and switching. Compact dimensions of 280 mm length, 200 mm width, and 160 mm depth for space-efficient installation. Designed for surface mounting to facilitate straightforward integration into control panels and machines.

Overload relay not included; compatible overload thermal relays such as ZB12 (stock no. 493-1239) must be ordered separately.

For industrial motor control needs including automation systems, manufacturing plants, and electrical control setups, this Eaton reversing DOL starter offers reliability, safety, and compliance. Explore more Eaton Motor Starters and related automation components on EnvMart for comprehensive solutions.
