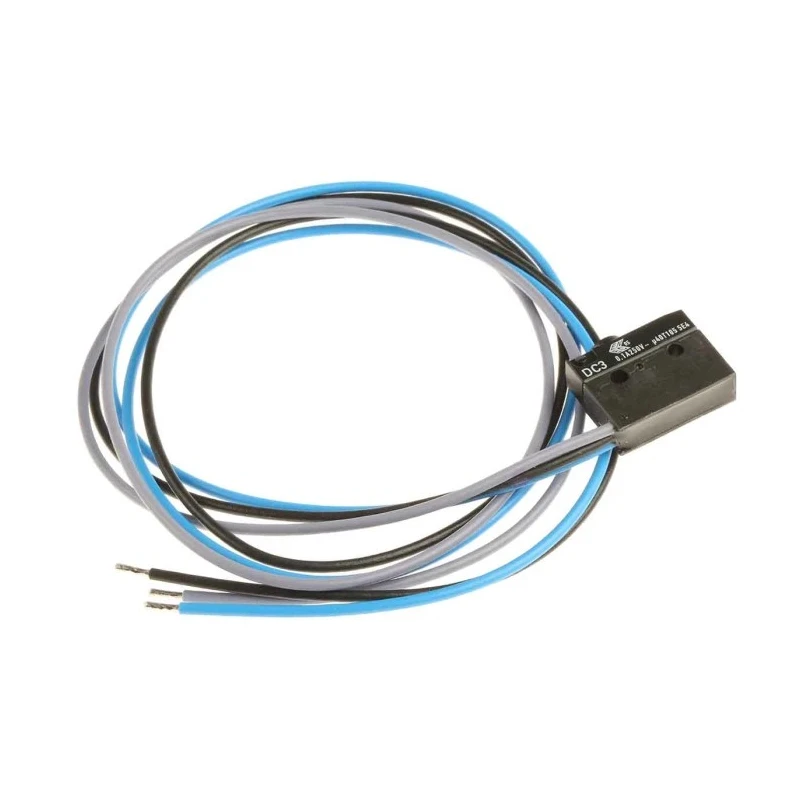

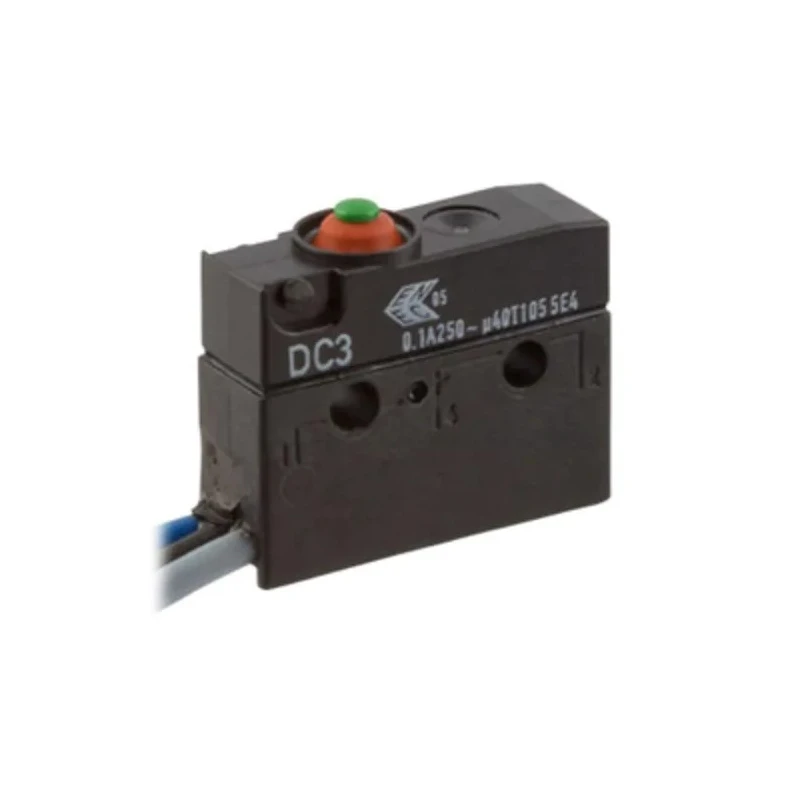

ZF Button Micro Switch, Wire Terminal, 100mA, 250 V AC, SPDT, IP6K7 DC3C-C3AA

ZF DC3C-C3AA Button Micro Switch with Wire Terminal is a high-quality, subminiature electrical switch designed to provide reliable operation in industrial and automation applications. Rated at 100mA current and 250 V AC voltage, this SPDT microswitch features a robust button actuator and durable housing materials derived from Polybutylene Terephthalate and Polyethylene Terephthalate to ensure chemical and mechanical resilience.

The switch offers an operating force of 1.96 N, making it responsive yet precise for various control tasks. It functions reliably within a wide temperature range, from -40°C to 105°C, suitable for harsh environmental conditions. The switch is rated IP6K7, providing dust-tight protection and resistance to water immersion, enhancing durability in demanding industrial settings.

With a mechanical life rating exceeding 1 million operations, the DC3C-C3AA model is engineered for longevity in repetitive switching applications. The contact set is configured as Single Pole Double Throw (SPDT), allowing it to direct signals or power reliably in two directions, suitable for many circuit designs.

This Micro Switch complies with RoHS directives, ensuring the materials and manufacturing process meet modern environmental standards. It is widely applicable in automation equipment, industrial machinery control panels, HVAC system components, safety devices, and other electronics requiring precise switching action.

The actuator type is a button that provides confident, tactile feedback. Housing material utilizes PBT and PET offering mechanical strength and thermal stability. Switch contact current rating is 100mA at 250 V AC suited for low power controls.

IP6K7 certified for dust and water protection for reliable outdoor or indoor use. Long operational life exceeding one million cycles reduces maintenance needs. Certified to RoHS standards for compliance with environmental regulations.

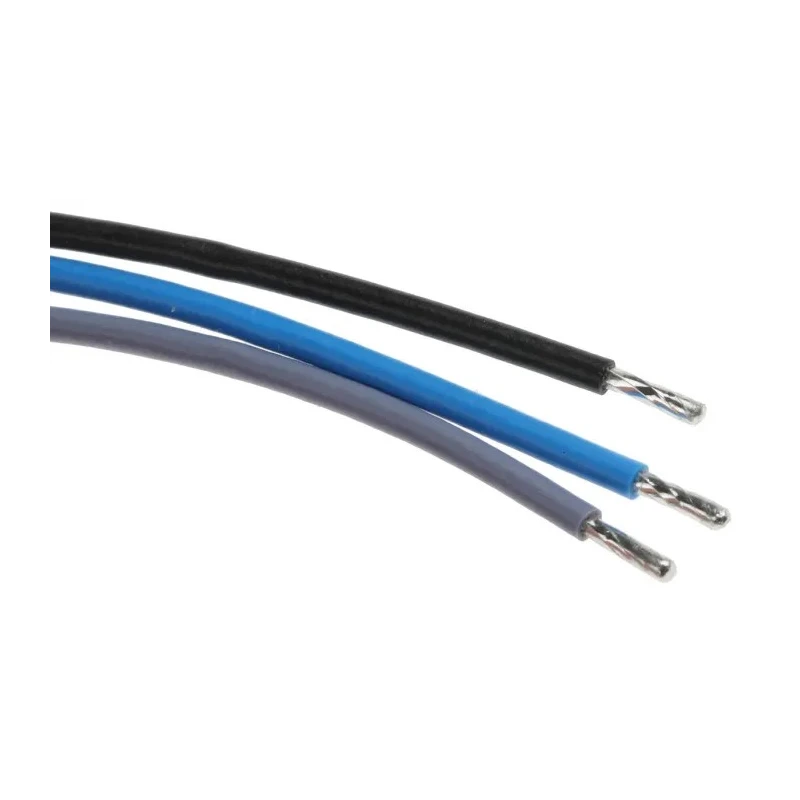

Operating temperature spans from -40 to 105 degrees Celsius for diverse climates. SPDT contact configuration provides versatility for electrical circuit design. Wire terminals enable easy installation into electrical wiring harnesses.

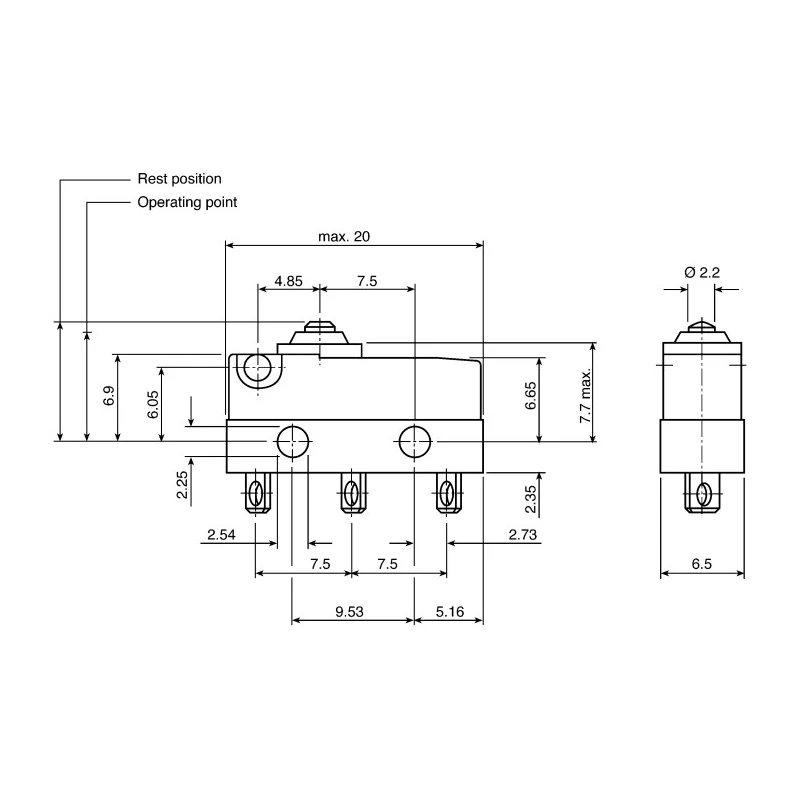

Compact dimensions facilitate integration into space-constrained devices.

This ZF microswitch model DC3C-C3AA is an excellent choice for users demanding a small, reliable, and certified switch suitable for a variety of industrial and automation applications. Explore other high-quality switches and electrical components in the Electronics & Electricals category at EnvMart.
