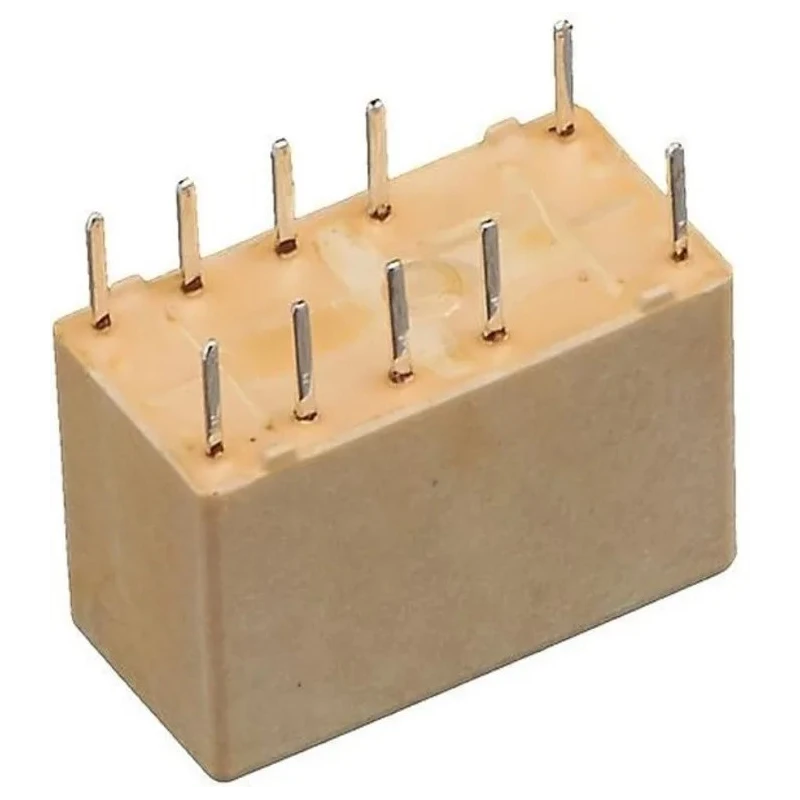

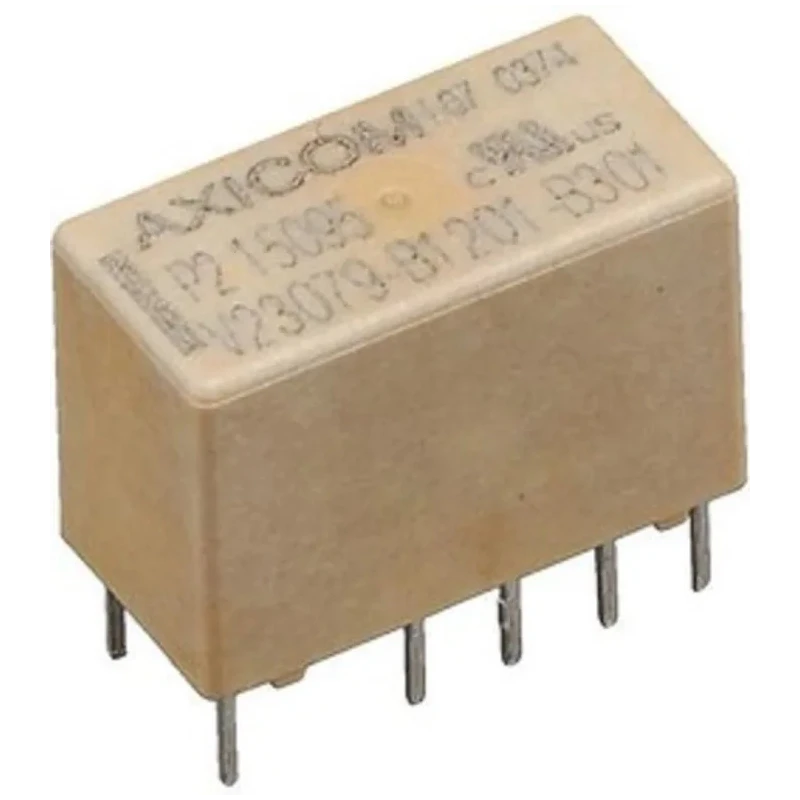

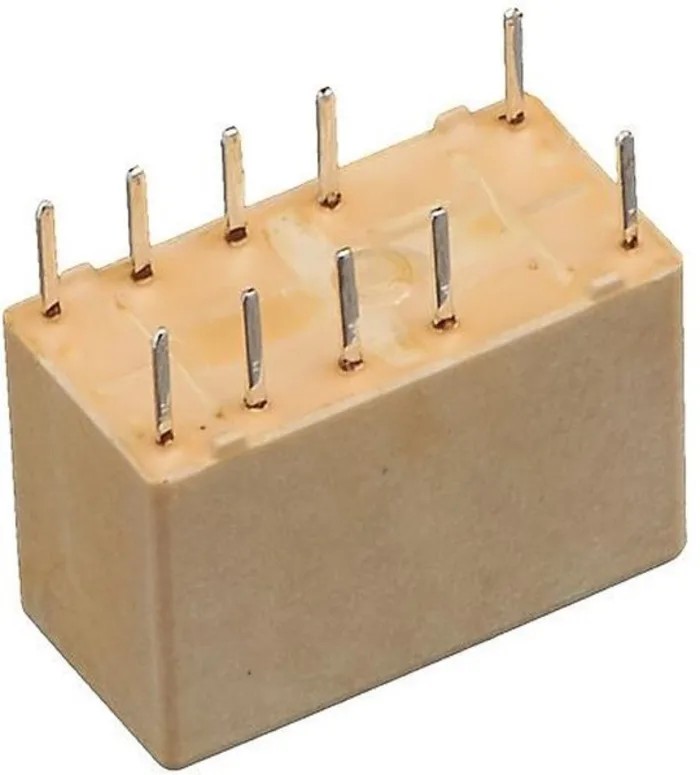

TE Connectivity PCB Signal Relay 5V DC Coil, 2A Switching Current, DPDT Contact Configuration V23079-B1201-B301

TE Connectivity V23079-B1201-B301 PCB Signal Relay is a miniature, high-sensitivity Signal Relay designed with a 5V DC coil and 2A switching current. This DPDT relay is compact and slimline, making it optimal for applications where space is limited.

The relay features bifurcated gold plated contacts ensuring high reliability and low contact resistance. It is immersion cleanable with an IP67 ingress protection rating and has a V-0 flammability classification for enhanced safety.

It operates over a wide temperature range from -40°C to 85°C and offers insulation resistance greater than 10⁹ Ω at 500 V DC. The device meets surge capability standards including Telcordia TR-NWT-001089 and IEC 60950, ensuring robustness in demanding environments.

With a compact form factor (14.5 mm length, 7.2 mm width, 9.8 mm height) and a PCB mount type with solder terminals, this relay is optimized for telecommunications equipment such as PABX and VOIP systems, consumer electronics including set-top boxes and HiFi devices, office and medical equipment, automotive control systems, and industrial control applications.

Compact and slimline for space saving. Gold plated bifurcated contacts for reliable switching. IP67 rated immersion cleanable relay. Operates from -40°C to 85°C temperature range. High insulation resistance > 10⁹ Ω at 500V DC.

Surge capability to industry standards Telcordia and IEC 60950. PCB mount with solder terminals. Dimensions: 14.5 mm x 7.2 mm x 9.8 mm. RoHS compliant and made in Czech Republic.

This relay is suitable for various industrial, telecommunications, consumer electronics, office, medical and automotive applications. Its miniature size and robust features ensure reliable performance in challenging environments.
