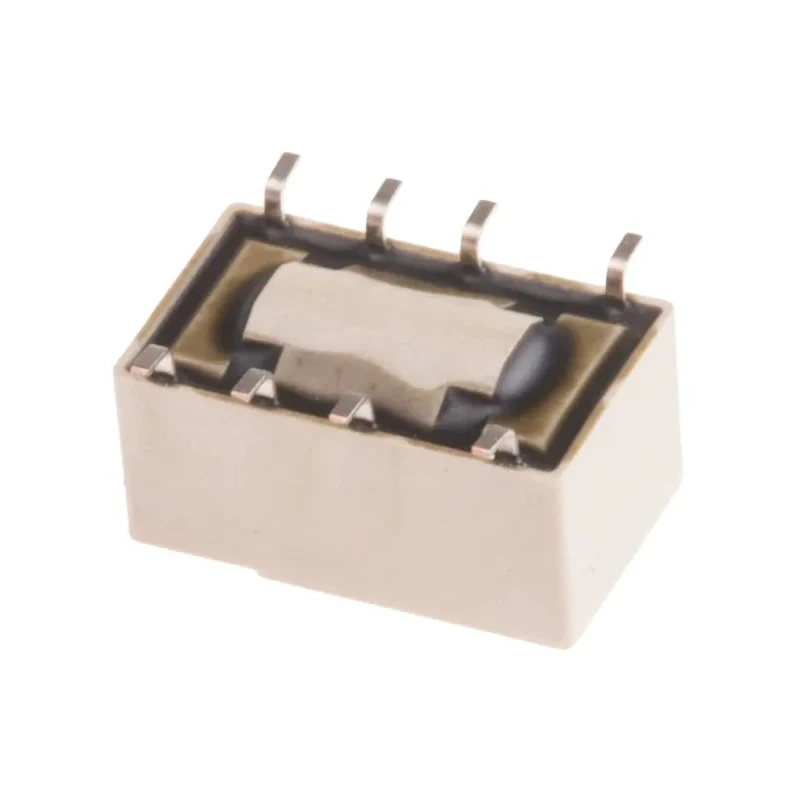

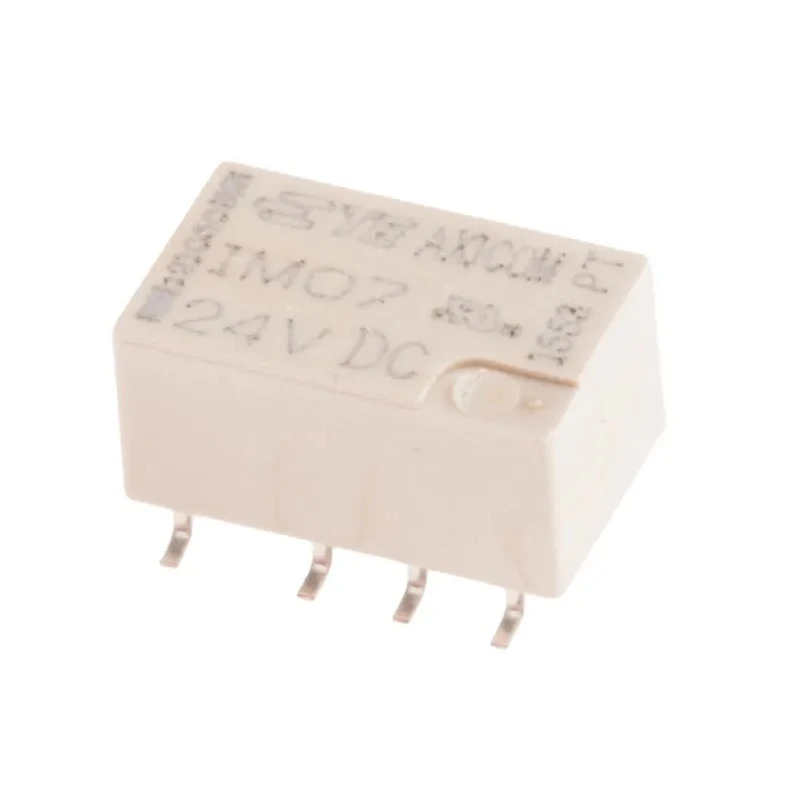

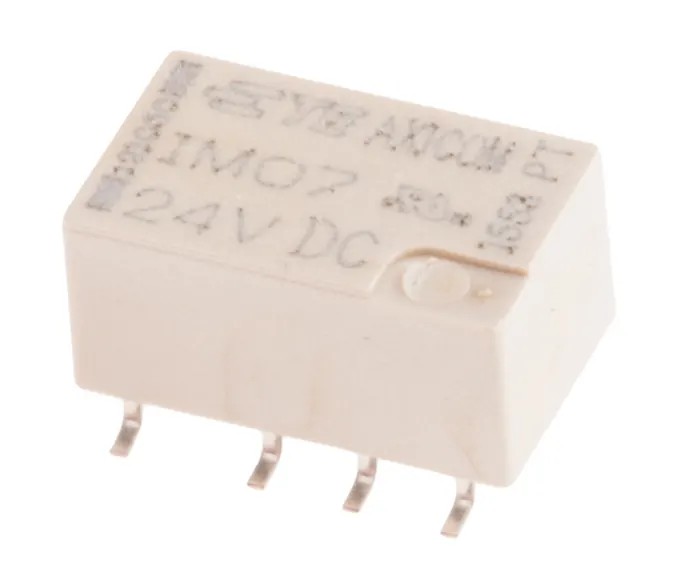

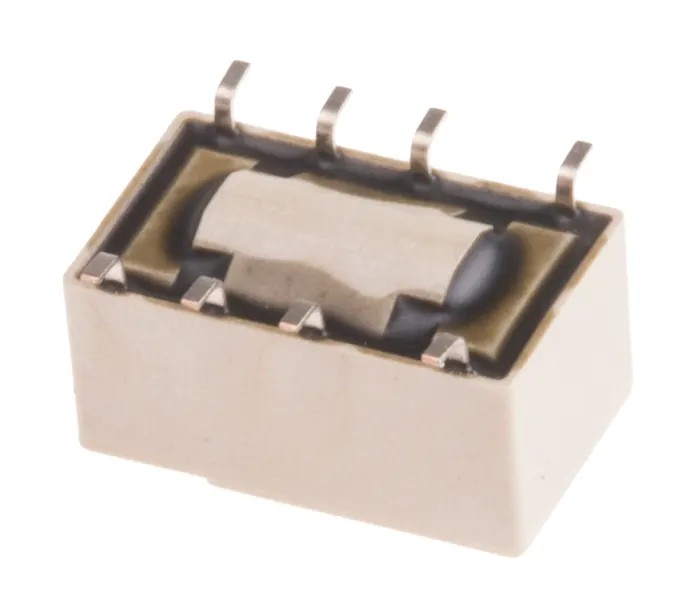

TE Connectivity Surface Signal Relay 24V dc Coil 2A DPDT Surface Mount IM Series 4-1462037-7 IM07GR
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | 4-1462037-7 IM07GR |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 2880Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Aratas Surface Signal Relay, 24V dc Coil, 2A, DPDTBrand | Omron |
Key Features

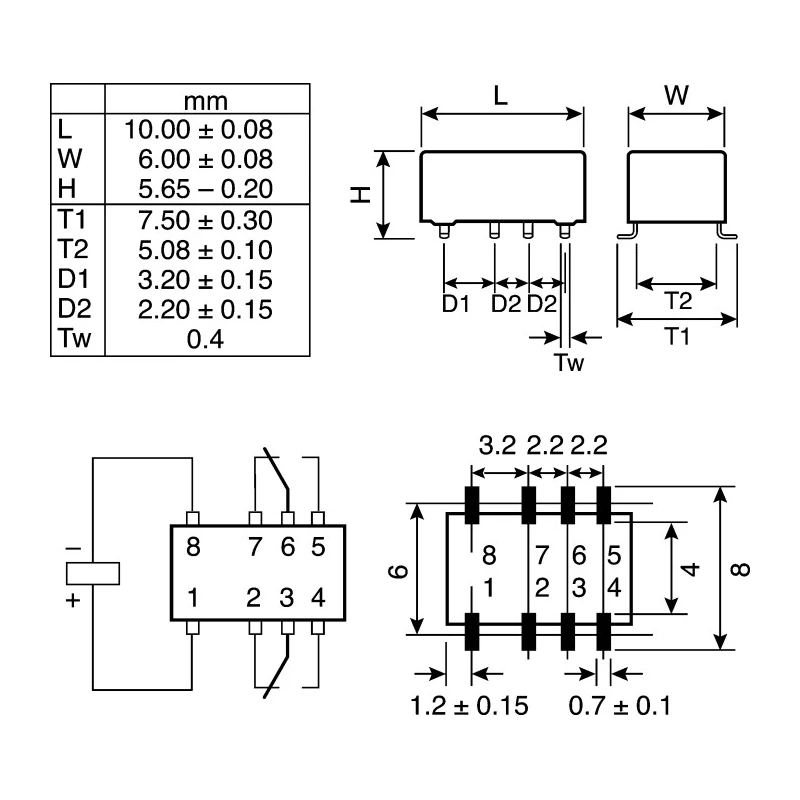

- Features a compact 10 x 6 x 5.65mm slimline low profile design.
- Suitable for telecommunications and electronic equipment applications.
- Gold plated bifurcated contacts ensure reliable signal transmission.
- Hermetically sealed with IP67 rating for high reliability in harsh environments.
- High mechanical shock resistance up to 300G functional and 500G survival.
- Coil resistance of 2880Ω and coil power of 140mW for efficient operation.
- Capable of switching 250V AC and 220V DC voltages.
- Operating temperature range from -40°C to 85°C ensures wide environmental compatibility.
Product Description
TE Connectivity 4-1462037-7 IM07GR Surface Signal Relay is a high-performance DPDT (Double Pole Double Throw) relay designed for surface mounting applications. With a 24V dc coil voltage and a switching current rating of 2A, this relay provides reliable operation in a compact package measuring 10 x 6 x 5.65mm. It is part of the IM Series, known for their slimline designs and excellent durability.
This relay is suitable for industrial, telecommunications, and commercial electronics use, including optical network terminals, modems, office equipment, and consumer electronics. The gold plated bifurcated contacts help reduce contact resistance and ensure long-lasting conductivity.
Designed to withstand harsh conditions, the relay is hermetically sealed with an IP67 rating, providing protection against dust and moisture. It has high mechanical shock resistance, rated at 300G for functional and 500G for survival, making it suitable for demanding industrial environments.
The coil resistance value of 2880Ω and coil power consumption of 140mW indicate efficient driving requirements. Switching capabilities include 250V AC and 220V DC at 2A, suitable for many signal and control applications.
The relay operates in a temperature range from -40°C to 85°C, ensuring reliable performance in diverse environmental conditions. Solder terminals provide a secure means of connection for surface mount PCB assemblies.
Compact slimline 10 x 6 x 5.65 mm surface mount relay. Gold plated bifurcated contacts for reliability. Hermetically sealed, rated IP67. High mechanical shock resistance up to 300G functional. Suitable for telecommunications and electronic devices.
Wide operating temperature range from -40°C to 85°C. 2A switching current with 24V dc coil voltage. Switching voltage up to 250V AC and 220V DC. Solder terminal type for secure PCB mounting.
This TE Connectivity IM Series relay meets RoHS compliance standards. It is ideal for applications requiring dependable signal switching with small footprint and robust construction. Explore EnvMart’s extensive relay catalog to find compatible components and accessories for your electronics design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 2A.
This model operates with a coil voltage of 24V dc.
The relay measures 10mm in length, 6mm in width, and 5.65mm in height.
It can switch up to 250V AC and 220V DC.
It features a DPDT (Double Pole Double Throw) contact configuration.
The coil resistance is 2880Ω.
It is hermetically sealed with an IP67 rating, making it resistant to dust and moisture, and operates in temperatures from -40°C to 85°C.
The coil power consumption is 140mW.
It uses solder terminals for secure PCB mounting.
It is suitable for telecommunications, industrial, and commercial electronics applications, including optical network terminals and modems.
It has a mechanical shock resistance rated at 300G for functional and 500G for survival.
Yes, this relay meets RoHS compliance standards.
