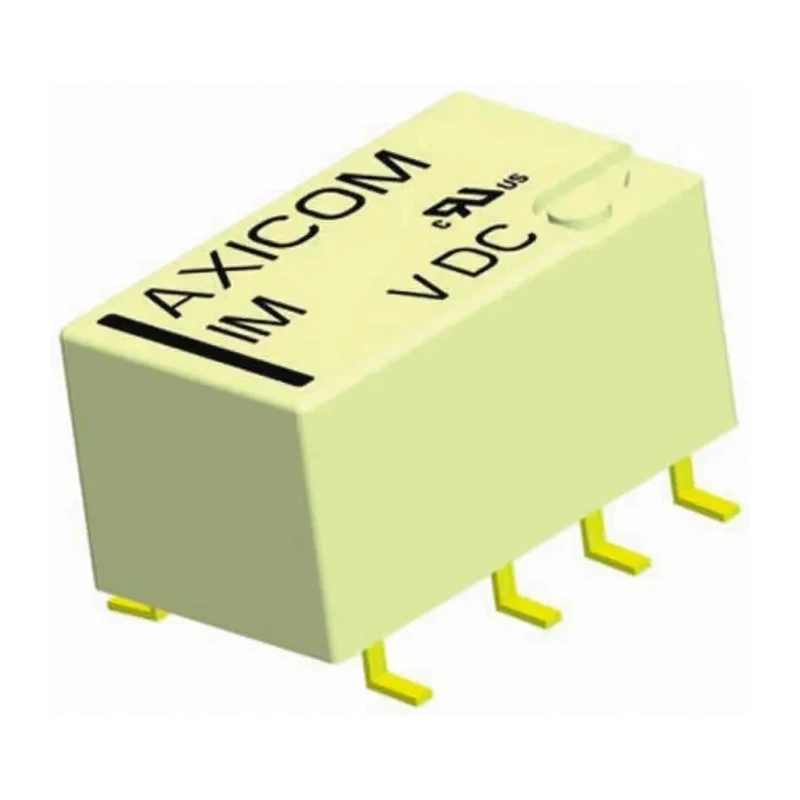

TE Connectivity Surface Signal Relay 5V DC Coil 2A DPDT Axicom IM43GR
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | IM43GR |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | Axicom |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Coil Resistance | 250Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 100mW |
| Switching Power | 140mW |
Key Features
- Slimline and low profile design measuring 10x6x5.65 mm.
- Gull wing SMT legs for surface mount applications.
- Gold plated bifurcated contacts for reliable signal integrity.
- Hermetically sealed with IP67 rating for protection in harsh environments.
- High mechanical shock resistance up to 300G functional and 500G survival.
- Insulation resistance greater than 109 Ω at 500V DC for safety and durability.
- Compliant with Telcordia TR-NWT-001089 and EC 60950 standards for surge capability.
- Operates reliably from -40°C to 85°C temperature range.
Product Description
TE Connectivity IM43GR Surface Signal Relay is a robust telecom and signal relay designed for surface mounting in demanding industrial and electronic applications. This relay operates with a 5V DC coil voltage and handles a switching current of 2A with DPDT (Double Pole Double Throw) contact configuration, offering versatile circuit control.

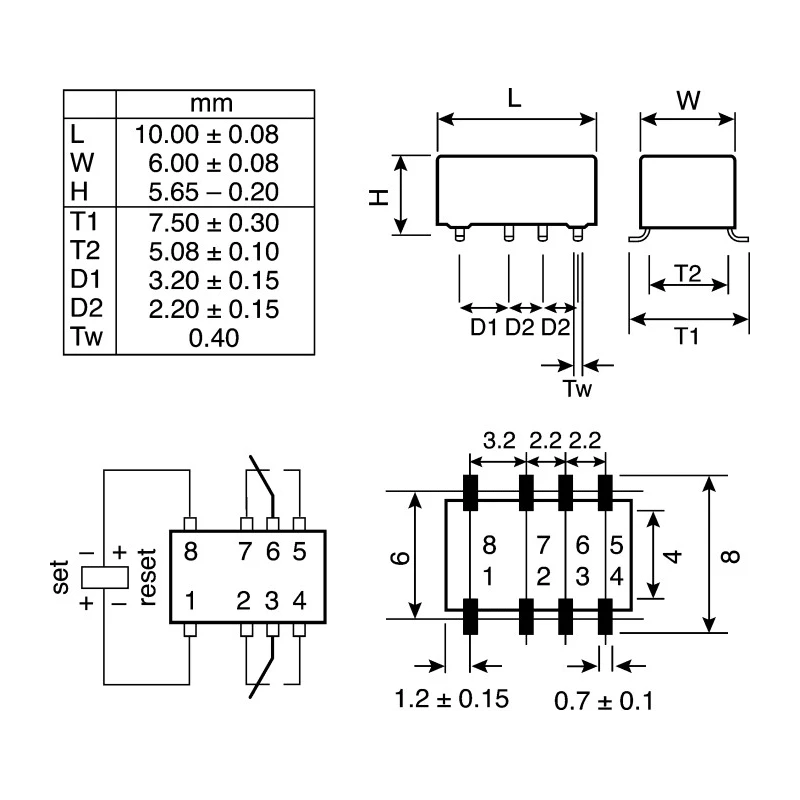

With a compact slimline form factor of 10 mm length, 6 mm width, and 5.65 mm height, it allows for space-efficient PCB layouts. The gull wing SMT legs simplify surface mount technology assembly, enhancing manufacturing efficiency.
The bifurcated contacts are gold plated, ensuring excellent conductivity and resistance to corrosion, which is essential for signal relay reliability. Furthermore, the relay is hermetically sealed meeting RT V and IP67 standards, providing protection against dust and moisture ingress, thus suitable for harsh environments.
Designed to withstand intense mechanical shocks up to 300G during operation and 500G survivability, this relay is ideal for applications exposed to mechanical vibration and shocks. Insulation resistance is rated at more than 109 Ω at 500V DC, ensuring safe and stable electrical isolation.
This relay meets global standards such as RoHS compliance and surge capability requirements defined by Telcordia TR-NWT-001089 and EC 60950, making it suitable for telecom, industrial automation, and control systems. Operating temperature range from -40°C to 85°C ensures reliability across diverse environmental conditions.
Slimline and low profile design measuring 10x6x5.65 mm. Gull wing SMT legs for surface mount applications. Gold plated bifurcated contacts for reliable signal integrity. Hermetically sealed with IP67 rating for protection in harsh environments.
High mechanical shock resistance up to 300G functional and 500G survival. Insulation resistance greater than 109 Ω at 500V DC for safety and durability. Compliant with Telcordia TR-NWT-001089 and EC 60950 standards for surge capability.
Operates reliably from -40°C to 85°C temperature range.
This TE Connectivity Signal Relay is suitable for industrial electronics, telecommunications, automation control, and various instrumentation applications requiring reliable switching performance in compact form factors. Browse other relays from TE Connectivity and related products on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 2A.
The coil voltage for this model is 5V DC.
The dimensions of this relay are 10 mm in length, 6 mm in width, and 5.65 mm in height.
It features a DPDT (Double Pole Double Throw) contact configuration.
The relay operates reliably within a temperature range of -40°C to 85°C.
The insulation resistance is greater than 10^9 Ω at 500V DC.
Yes, it is hermetically sealed and has an IP67 rating, providing protection against dust and moisture.
The coil resistance for this relay is 250Ω.
The contacts are made of gold plated material for reliable signal integrity.
This relay is compliant with RoHS and meets Telcordia TR-NWT-001089 and EC 60950 standards for surge capability.
The maximum switching voltage for DC is 220V and for AC is 250V.
This relay supports surface mounting with gull wing SMT legs.
