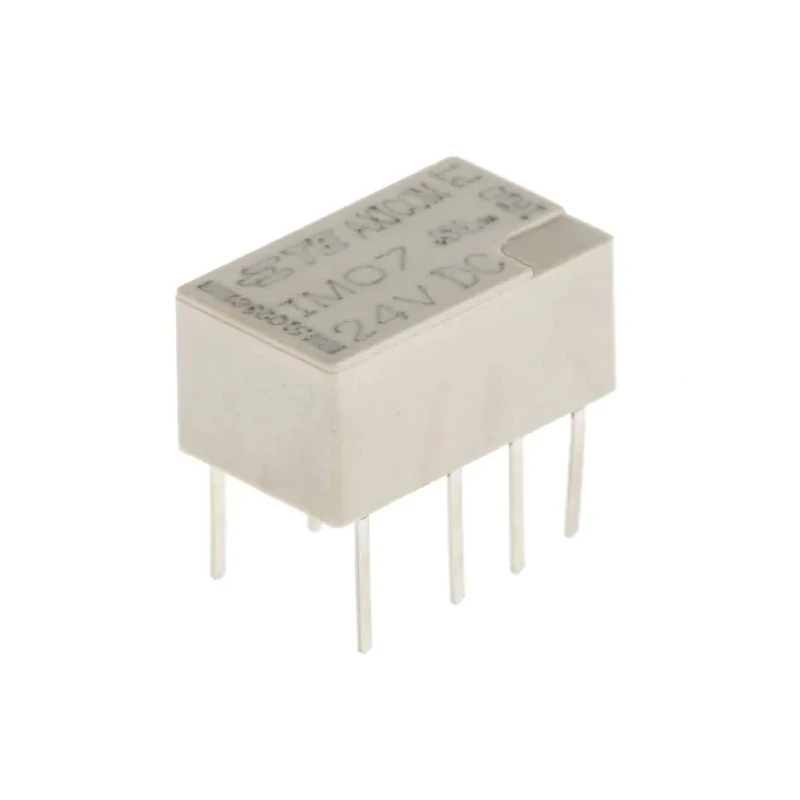

TE Connectivity PCB Signal Relay 24V DC Coil 2A DPDT IM07TS
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.2mm |
| Length | 10mm |
| Model | IM07TS |
| Width | 6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 2880Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| TE Connectivity Male N Type to Male SMA Coaxial Cable, 1m, TerminatedBrand | TE Connectivity |
| Aratas PCB Signal Relay, 24V dc Coil, 1A, DPDTBrand | Omron |
| Panasonic PCB Signal Relay, 24V dc Coil, 1A, DPDTBrand | Panasonic |
Key Features
- Designed for PCB mounting with compact dimensions of 10mm length, 6mm width, and 5.2mm height.
- Operates reliably between -40°C and 85°C temperature range.
- Low coil power consumption of 200mW and coil resistance of 2880Ω.
- Gold plated bifurcated contacts provide high reliability and low contact resistance.
- High mechanical shock resistance up to 300G functional and hermetically sealed design.
- Suitable for switching AC voltage up to 250V and DC voltage up to 220V.
- Compliance with RoHS standards ensures environmental safety.
- Applications include telecommunication equipment, optical network terminals, office equipment, and medical devices.
Product Description
TE Connectivity IM07TS PCB Signal Relay is a slimline, compact relay designed for industrial and electronic applications requiring reliable switching with low coil power consumption. Featuring a 24V DC coil with 2A switching capacity and a double-pole double-throw (DPDT) contact configuration, this relay delivers precise control with low board space requirements of just 60mm².
With dimensions of 10mm length, 6mm width, and 5.2mm height, the IM07TS relay is suitable for PCB mounting in telecommunication equipment, optical network terminals, office and test measurement devices, as well as medical and automotive applications. The relay operates efficiently over a broad temperature range from -40°C to 85°C, ensuring stability in diverse environments.
It features gold plated bifurcated contacts for enhanced connectivity and reduced contact resistance. The coil resistance is 2880Ω, with a coil power rating of 200mW, promoting energy efficiency. The relay is hermetically sealed (RT V), providing IP67 protection and mechanical shock resistance up to 300G functional and 500G survival.
High dielectric strength with 1500V between open contacts and 2500V between coil and contacts ensures robust surge capability complying with Telcordia GR 1089, FCC Part 68, and ITU-T K standards. The insulation resistance at 500V DC exceeds 10⁹Ω, contributing to the relay's reliable performance.
Compact slimline design occupying minimal PCB space. Gold plated bifurcated contacts for reliable operation. Hermetically sealed with high resistance to environmental factors. Wide operating temperature and high mechanical shock resistance.
Complies with RoHS environmental standards. Suitable for use in telecommunications, optical networks, and medical equipment. High dielectric surge capacity and excellent insulation resistance. Low coil power consumption enhances energy efficiency.
This relay is essential for industrial, telecommunications, medical, laboratory, and automation use cases requiring dependable Signal Relay solutions. Discover more relays and signal conditioning devices in the Electronics & Electricals category at EnvMart.
