JST SH Series Right Angle Surface PCB Header, 4 Contacts, 1 mm Pitch, 1 Row, Shrouded SM04B-SRSS-TB(LFSN)

Free Delivery in India | Lowest Global Shipping Charges

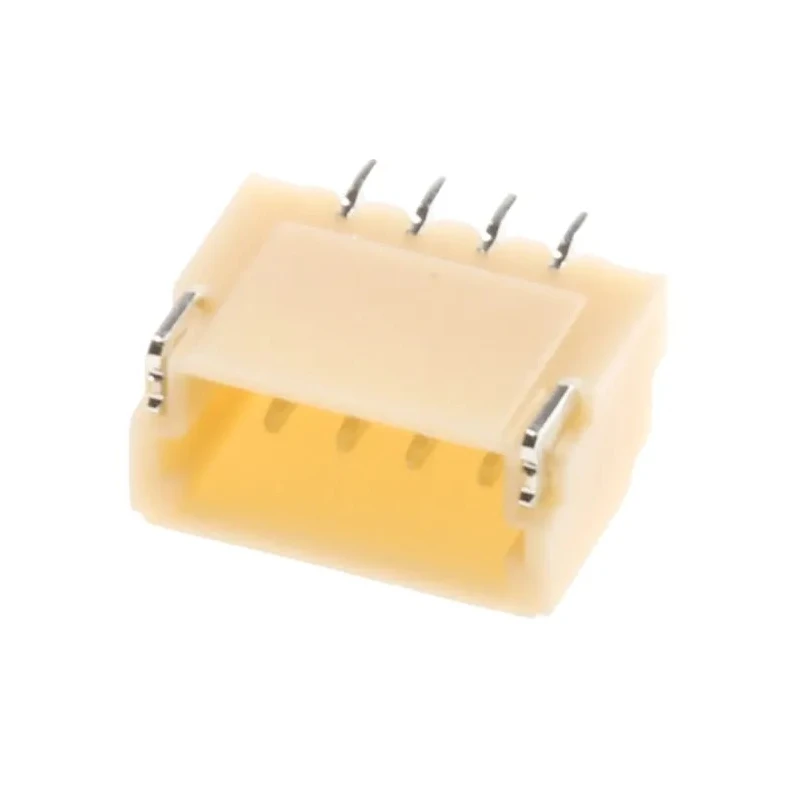

JST SH Series Right Angle Surface PCB Header, 4 Contacts, 1 mm Pitch, 1 Row, Shrouded SM04B-SRSS-TB(LFSN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	China
Voltage	50V
Brand	JST
Orientation	Right Angle
Current	1A
Model	SM04B-SRSS-TB(LFSN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	SH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The connector system offers a compact and versatile wire-to-board solution.
It supports a current rating of 1 Amp and operating voltage up to 50 V.
Constructed with polyamide housing and copper alloy contacts plated with tin for durability.
Designed for surface mount technology with solder termination to ensure secure connections.
Operating temperature ranges from -25°C to 85°C, suitable for varied environments.
The shrouded design provides additional protection and polarization.
Right angle orientation optimizes board layout for space-constrained applications.
Compatible with JST crimp terminal housing (typical stock no. 311-6502).

Product Description

JST SM04B-SRSS-TB(LFSN) SH Series Right Angle Surface PCB Header is a precisely engineered component built for reliable and compact wire-to-board interconnection on a tight 1 mm pitch. Featuring 4 male contacts in a single row and a shrouded polyamide housing, this connector ensures firm mechanical stability through surface mount solder tabs and additional polarization benefits.

Designed to operate under currents up to 1 Amp and voltages up to 50 V, the header supports industrial, electronic, and commercial PCB assembly applications where space optimization and signal integrity are critical. The contact material is copper alloy with tin plating, providing excellent conductivity and corrosion resistance. It is suitable for environments with operating temperatures ranging from -25°C to 85°C.

The right angle orientation facilitates component placement and routing on printed circuit boards, saving valuable board real estate. This product mates perfectly with JST's crimp terminal housing, making it a versatile option for compact electronic assembly solutions.

This component is especially valuable in sectors such as consumer electronics, telecommunications equipment, industrial devices, and automotive electronics where miniaturization and reliable connections are essential.

The connector system offers a compact and versatile wire-to-board solution. It supports a current rating of 1 Amp and operating voltage up to 50 V. Constructed with polyamide housing and copper alloy contacts plated with tin for durability.

Designed for surface mount technology with solder termination to ensure secure connections. Operating temperature ranges from -25°C to 85°C, suitable for varied environments. The shrouded design provides additional protection and polarization.

Right angle orientation optimizes board layout for space-constrained applications. Compatible with JST crimp terminal housing (typical stock no. 311-6502). Explore more JST PCB Headers and connectors at EnvMart to find solutions tailored to your precise electronic design needs.
