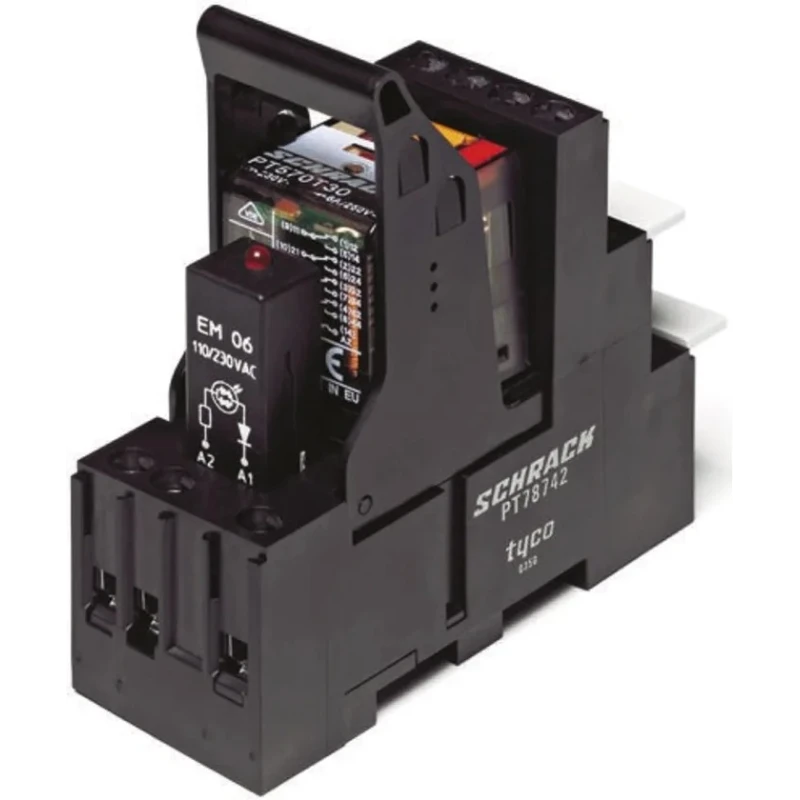

TE Connectivity DIN Rail Power Relay 115V AC Coil 12A Switching Current DPDT PT2L7SB5 9-1415534-2

TE Connectivity PT2L7SB5 9-1415534-2 DIN Rail Power Relay is a high-quality power relay designed to provide reliable switching in demanding industrial environments. Featuring a 115V AC coil and a double pole double throw (DPDT) contact configuration, this relay is suitable for multiple complex switching applications requiring up to 12A switching current.

The relay is built to mount securely on DIN Rail systems, ensuring easy integration into electrical control panels and automation equipment. Its compact form factor with dimensions of 77mm length, 27.2mm width, and 78.3mm height allows for high-density installation.

Made with silver nickel alloy contacts, the relay ensures excellent electrical conductivity and resistance to wear. It operates reliably within a temperature range of -40°C to 70°C, making it suitable for diverse ambient conditions.

The coil has a resistance value of 4.8 kΩ and consumes just 1 watt of power, which contributes to efficient energy usage. The relay includes a manual test tab and mechanical/electrical indicators for straightforward maintenance and monitoring. DIN sockets offer logical control and load terminal arrangements with additional A2 terminals for simplified looping.

This product complies fully with IEC 61810-1 safety and performance standards and holds certifications such as VDE, UL, and RoHS, ensuring compliance with international quality and environmental norms. It is ideal for use in industrial machinery control, automation systems, signal conditioning, power switching, and other electrical circuit control applications.

Package includes the relay, DIN rail socket, module, retainer, and marking tab, providing a complete installation set. Explore EnvMart's specialized catalog for more Power Relays and industrial automation components to enhance your electrical system designs and deployments.

This relay features a switching current of 12A suitable for high power loads. Mounted on DIN Rail for quick and secure installation in control panels. Contact materials use a durable silver nickel alloy for reliable conductivity.

Operates effectively between -40°C and 70°C ambient temperatures. Includes a manual test tab and electrical/mechanical indicator for easy diagnostics. Complies with IEC 61810-1 standards and has VDE, UL, RoHS approvals. Coil resistance is 4.8 kΩ with a coil power rating of 1W for energy-efficient operation.

Compact dimensions of 77mm length, 27.2mm width, and 78.3mm height facilitate modular assembly. Suitable for industrial automation, electrical control systems, and signal conditioning applications.
