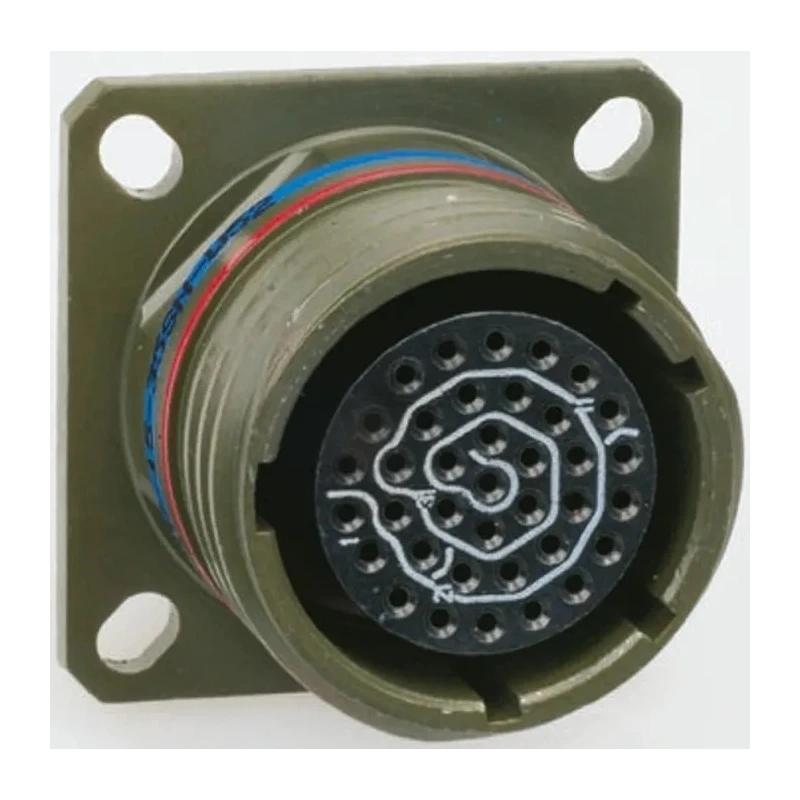

Amphenol Limited MIL Spec Circular Connector TV Copper Alloy Straight 22 Way Wall Mount Female 5A TVP00RW-13-35SN(W52)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 400, 500V ac |
| Brand | Amphenol Limited |
| Colour | Green |
| Orientation | Straight |
| Current | 5A |
| Model | TVP00RW-13-35SN(W52) |
| Mount Type | Wall Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | TV |
| Termination Type | Crimp |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 22 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 13 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Zinc Cobalt |
Key Features
- Constructed with copper alloy contacts plated with gold for corrosion resistance.
- Durable aluminium housing with zinc cobalt plating ensures high strength and environmental protection.
- Compatible with MIL-DTL-38999 military standards offering screw coupling mating type.
- Operates reliably in temperatures from -65°C up to 175°C.
- Equipped with strain relief and features a green color for easy identification.
- Crimp termination type with straight orientation and standard connector size.
- Designed specifically as a square flange receptacle for secure wall mount applications.
- Provides 22 contacts with female gender for both connector and contacts.
Product Description
Amphenol Limited TVP00RW-13-35SN(W52) MIL Spec Circular Connector is a high-quality, copper alloy straight 22 way wall mount connector designed for robust industrial and military applications. Rated for 5A current and capable of handling 400 to 500 volts AC, it ensures reliable electrical performance in demanding environments.
The connector features a durable aluminium alloy housing with an environmentally friendly zinc cobalt plating that provides a cadmium-free, long-lasting finish. Its strain relief design and crimp termination enable secure and stable electrical connections.
Compliant with MIL-DTL-38999 military standards and using a screw coupling mating type, this connector is built to exceed BS 9520 G0003 and JN1034 requirements, making it suitable for aerospace, defense, and other industrial uses where quality and durability are essential.
The product supports operation in extreme temperatures from -65°C to 175°C, and the green colour coding assists in easy identification. It offers 22 female contacts and is intended as a square flange receptacle wall mount connector, providing a reliable mechanical and electrical interface.
Constructed with copper alloy contacts plated in gold for enhanced contact performance and corrosion resistance. High-strength aluminium housing machined from billet with zinc cobalt plating for a durable finish. Meets multiple military standards including MIL-DTL-38999 and other quality specifications for ruggedized connectors.
Crimp termination and strain relief improve connection stability and reduce cable stress. Designed for industrial, defense, aerospace, and other high-reliability applications requiring MIL spec circular connectors.
This MIL Spec Circular Connector is part of the Amphenol Limited TV series and facilitates secure, high-quality electrical connections in harsh environments. Explore more from our range of Mil Spec Circular Connectors at EnvMart for your precision connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum voltage of 400 to 500 volts AC.
It operates reliably in temperatures ranging from -65°C to 175°C.
This connector features 22 female contacts.
It uses a crimp termination type for secure electrical connections.
The contacts are made of copper alloy plated with gold, and the housing is constructed from aluminium with zinc cobalt plating.
It complies with MIL-DTL-38999 military standards, ensuring it meets rigorous quality specifications.
This model is designed for wall mount applications as a square flange receptacle.
Both the connector and its contacts are female gender.
The connector is color-coded green for easy identification.
The shell size of this model is 13.
It employs a screw coupling mating type for secure connections.
The connector is manufactured in India.
