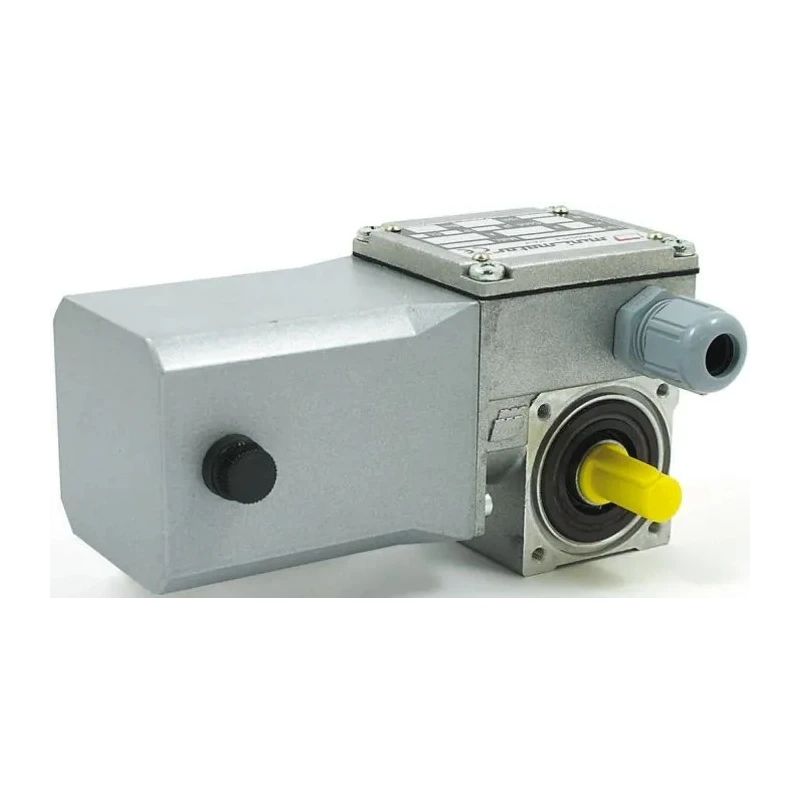

Mini Motor Brushed Geared DC Geared Motor 37W 24V DC 5.2Nm 35rpm 9mm Shaft Diameter BC2000 24 MP 80 B3

The Mini Motor BC2000 24 MP 80 B3 is a high-quality brushed DC geared motor delivering 37 watts of power at a supply voltage of 24V DC. It provides a maximum output torque of 5.2 Nm and operates at 35 rpm with a worm gearhead type and 80:1 gear ratio. Designed with an aluminium die-cast gearbox housing combined with an iron core, this motor ensures robustness and efficient heat dissipation.

This motor uses a permanent magnet with a 2-pole design and Class F winding conforming to VDE0530 standards. It features a foot mount (B3 standard) for straightforward and stable mechanical installation. The shaft diameter is precisely 9 mm with h6 standard tolerance, and the overall length of the motor is 139.5 mm, accompanied by a width of 77.5 mm and depth of 55.5 mm.

The motor is protected against dust and water ingress with an IP65 insulation rating complying with CEI EN 60529 standards. Rated for a current of 2.5A, it supports reliable operation in demanding industrial environments. The worm and wheel gearbox is lubricated with synthetic oil for longevity and smooth mechanical transmission.

This Mini Motor geared motor is ideal for automation and control gear applications, offering precise speed control and high torque in a compact form factor. Its construction and certifications make it suitable for various industrial, manufacturing, and automation uses where a durable and efficient DC geared motor is required.

Key features include RoHS compliance, B3 foot mount standard, and Italian origin guaranteeing quality manufacturing standards. The motor features a 9mm shaft diameter with h6 tolerance for precision fitment. It is equipped with a worm gearhead offering an 80:1 gear ratio for high torque output.

The foot mount B3 standard ensures stable installation in various industrial applications. Constructed with aluminium housing and iron core, ensuring durability and thermal performance. The motor runs at a current rating of 2.5A, suitable for continuous operation.

Complies with RoHS standards and CEI EN 60529 IP65 insulation rating for environmental protection. Compact dimensions: length 139.5mm, width 77.5mm, depth 55.5mm, shaft length 13mm for space-constrained setups. Explore more industrial Electric Motors and automation components at EnvMart to fulfill your project requirements.
