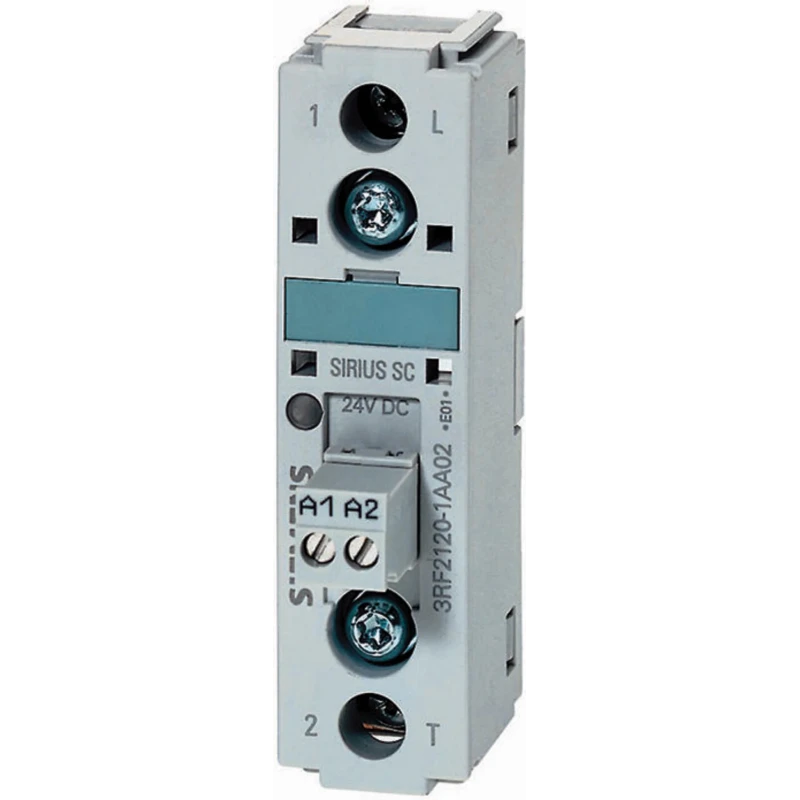

Siemens Solid State Relay 30 A Load, DIN Rail Mount, 600 V Load, 24V DC Control 3RF2130-1AA06

Siemens 3RF2130-1AA06 Solid State Relay is a high-performance electrical component engineered for industrial automation, process control, and electrical switching applications requiring precise and reliable load control.

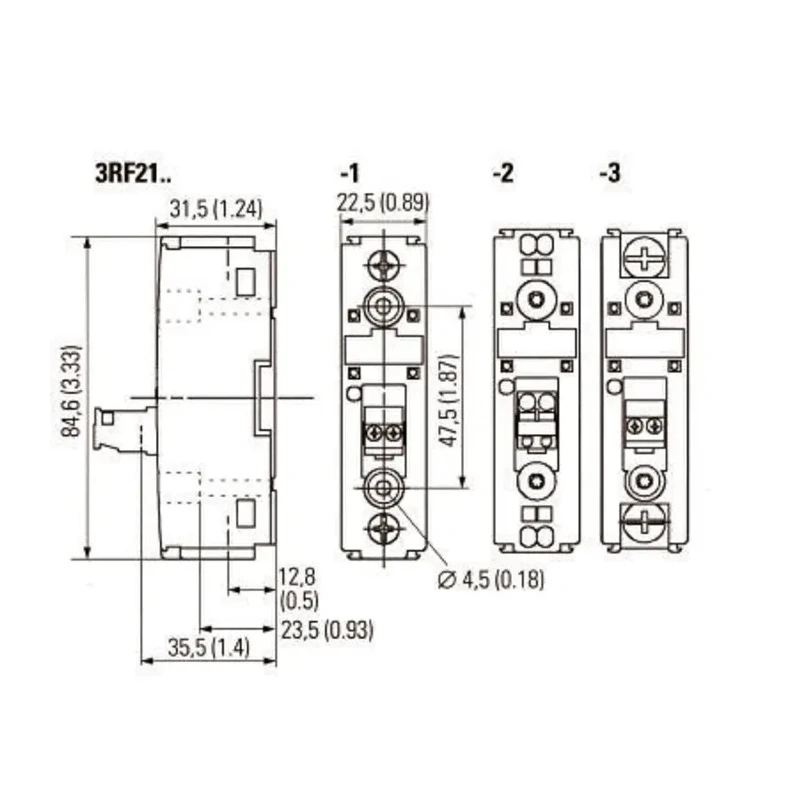

The relay features a compact DIN rail mount form factor with a narrow 22.5mm width, making it suitable for installation in control and electrical distribution panels with limited space. It utilizes screw terminal connections allowing fast and secure wiring.

Operational parameters include a maximum load current rating of 30 A and maximum load voltage of 600 V, with a minimum load voltage of 400 V, making it ideal for medium to high voltage AC load control. The control circuitry operates on DC voltages ranging from 15 V to 24 V, accommodating a variety of control signals.

It employs zero-cross switching technology which ensures that the relay switches the load only when the AC voltage crosses zero, reducing electrical noise and enhancing the lifetime of connected components. The robust thyristor output type offers efficient switching with minimal leakage current in off state (10 mA).

The unit is rated IP20 for protection against solid foreign objects while allowing airflow, suitable for indoor industrial environments. It is certified under major standards such as CSA, EAC, and UR, providing assurance of quality and safety compliance.

Designed to operate reliably within a temperature range of -25°C to 60°C, this solid state relay is manufactured in Germany, reflecting high production standards and material quality.

Its features and specifications make it suitable for use in industrial automation, manufacturing equipment, HVAC control, power distribution, and process control systems demanding rugged and maintenance-free relay solutions.

Compact DIN rail mount design with 22.5 mm width. Supports 30 A maximum load current and 600 V maximum load voltage. Zero cross switching reduces electrical noise and prolongs device life. Screw terminal connections for secure and easy installation.

IP20 enclosure rating for solid object protection. Operating temperature range: -25°C to 60°C for industrial environments. Thyristor output with 10 mA off-state leakage current for efficiency. Certified to CSA, EAC, and UR standards for safety and compliance.

Manufactured in Germany ensuring high quality and reliability. Explore more Siemens Solid State Relays and electrical components to support your industrial automation and control projects at EnvMart.
