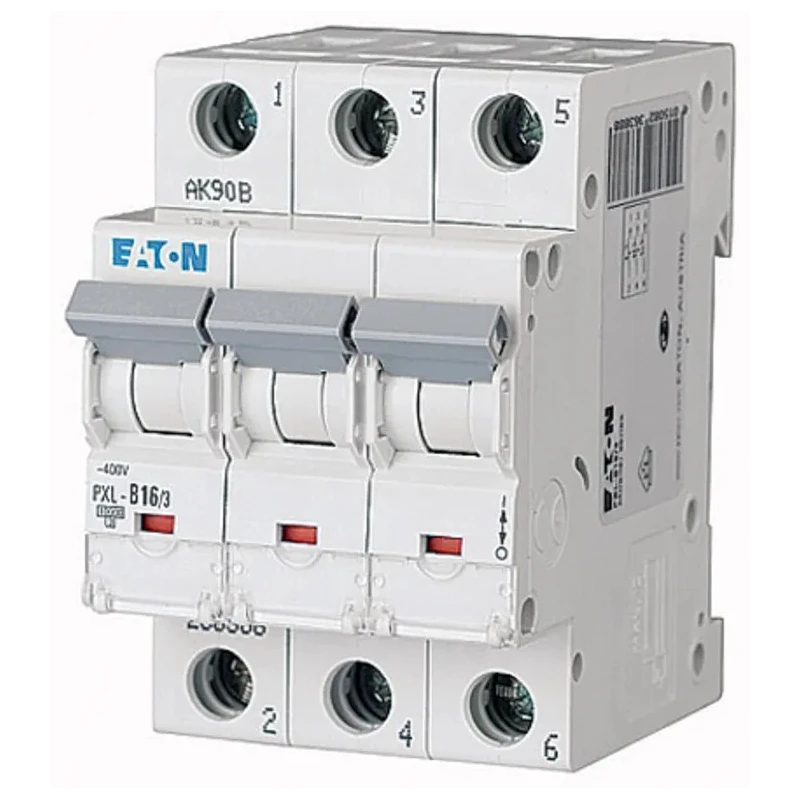

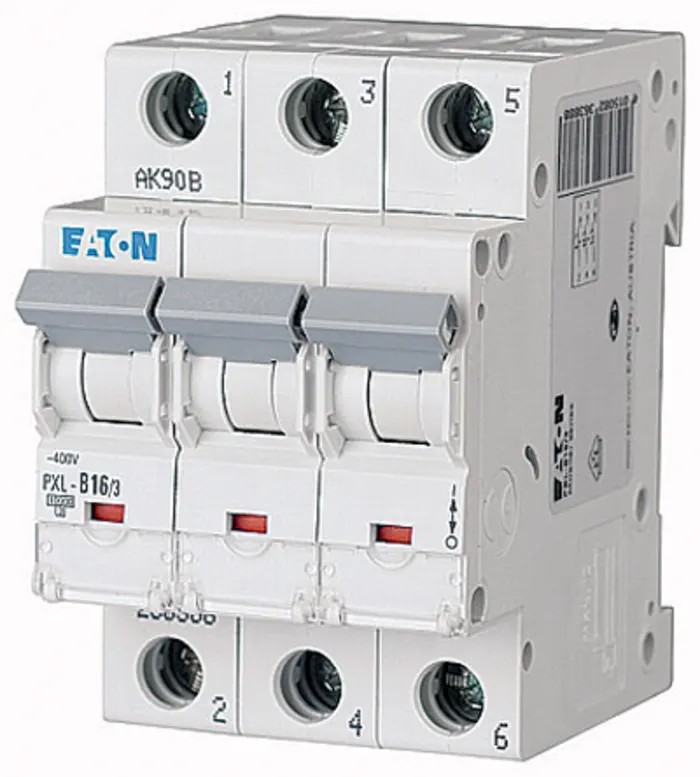

Kopp xPole Miniature Circuit Breaker, 3-Pole, 16A Current Rating, Type B, 400V AC, 48V DC, 10kA Breaking 236388 PXL-B16/3

Eaton 236388 PXL-B16/3 xPole Miniature Circuit Breaker is a 3-pole device rated for 16 amperes with type B tripping characteristics, designed to protect electrical circuits from overcurrent conditions in industrial, residential, and light commercial environments. This miniature circuit breaker supports both AC voltage up to 400V and DC voltage up to 48V, providing versatile protection across various applications. The breaking capacity of 10 kA ensures it can safely interrupt high fault currents.

The breaker features a compact design measuring 80 mm in width, 52.5 mm in height, and 60 mm in depth, maximizing space efficiency for DIN rail mounting. Its IP20 ingress protection rating makes it resistant to accidental contact and ingress of foreign objects larger than 12 mm, enhancing user safety. The electromagnetic tripping mechanism offers rapid response to overcurrent conditions, suitable for protecting resistive and small inductive loads.

The enclosure is thermally stable and corrosion resistant, guaranteeing dependable operation under humid and thermally challenging conditions. The device supports a wide temperature range from -25°C to +75°C, ensuring reliable performance in harsh environments. Installation flexibility is improved with double terminal connections featuring lift and jaw style contacts at both top and bottom, suitable for various bus bar arrangements.

Simple toggle switch reset actuator enables quick manual reset after trip events. The PXL series breaker complies with IEC and EN 60898 safety standards, ensuring compliance with international norms. Typical industrial applications include circuit protection in manufacturing plants, electrical panels, HVAC systems, water treatment facilities, and commercial buildings.

This miniature circuit breaker provides reliable and efficient protection for circuits requiring high selectivity and safe interruption capabilities, making it an essential component in modern electrical distribution systems.

The device offers a breaking capacity of 10 kA ensuring high fault tolerance. Type B tripping characteristic provides protection against small switching surges. Compact dimensions of 80 (L) x 52.5 (W) x 60 mm (D) support maximum packing efficiency on DIN rail.

The enclosure has an IP20 rating safeguarding against ingress of objects larger than 12 mm. It supports both AC (400V) and DC (48V) rated voltages for versatile use. Equipped with a toggle switch reset actuator for easy operation.

The tripping mechanism is electromagnetic, enabling instantaneous response. Constructed with a corrosion-resistant, thermally stable enclosure suited for humid environments. Wide operating temperature range from -25°C to +75°C ensures reliable performance in demanding conditions.

Features double terminal connections with lift/jaw design for flexible installation on top or bottom. Conforms to IEC and EN 60898 standards for safety and quality assurance.
