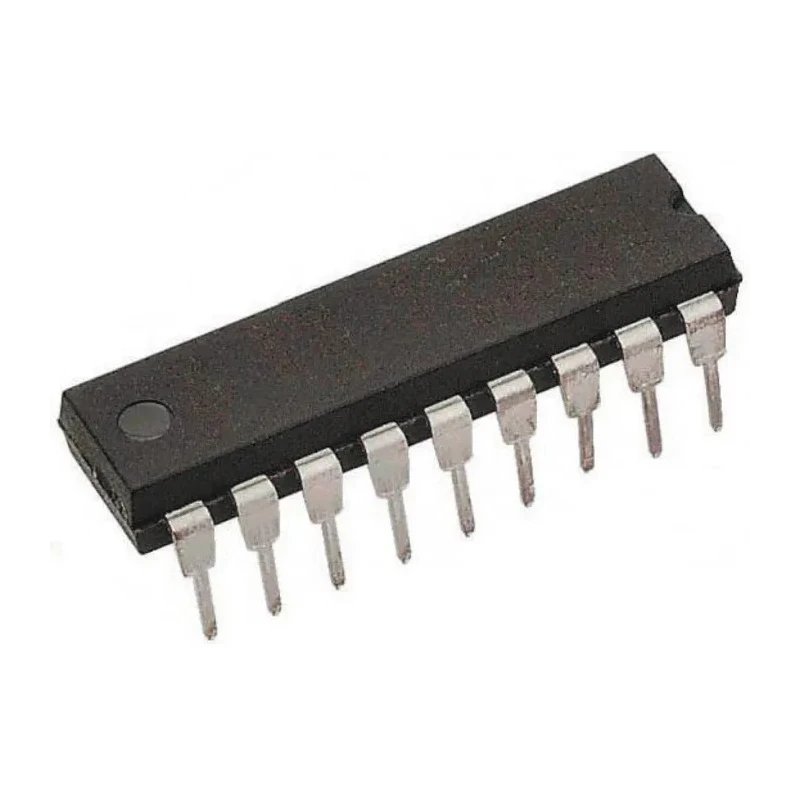

Microchip 8 Bit PIC16LF628-04I/P Microcontroller 4 MHz FLASH 18-Pin PDIP

Microchip PIC16LF628-04I/P is an 8-bit PIC microcontroller based on the Mid-Range PIC16F core architecture, designed for efficient embedded applications. Operating at a maximum clock frequency of 4 MHz, this MCU delivers up to 5 million instructions per second (MIPS), making it well suited for industrial, laboratory, HVAC, and commercial electronics.

The device features 3.5 kB of flash program memory, 224 bits of RAM, and supports up to 128 bytes of data EEPROM, allowing for flexible data handling and program storage. It has 16 programmable I/O pins, enabling broad interfacing options for sensors, actuators, and communication modules.

Protection and reliability features include Power-On Reset (POR), Power-Up Timer (PWRT), Oscillator Start-Up Timer (OST), Brown-Out Reset (BOR), and Watchdog Timer (WDT), ensuring robust operation under varying power conditions. It supports in-circuit serial programming (ICSP) facilitating code development and firmware updates.

The MCU incorporates peripherals like two analogue comparators, a capture/compare/PWM module, and three timers (two 8-bit and one 16-bit), including a Universal Synchronous Receiver Transmitter (USART) for serial communication.

Its package is an 18-pin Plastic Dual Inline Package (PDIP) designed for through-hole mounting, measuring 22.99 mm in length, 6.6 mm in width, and 3.68 mm in height, making it suitable for prototyping and small-scale manufacturing.

Microchip PIC16LF628-04I/P is compliant with RoHS standards, operates at supply voltages from 2 V to 5.5 V, and has a maximum power dissipation of 800 milliwatts, optimized for low-power applications. Operating temperatures span from -40°C to 85°C, catering to harsh industrial environments.

This microcontroller is ideal for embedded system designers seeking a reliable, low-power 8-bit MCU with integrated peripherals for instrumentation, control systems, industrial automation, and IoT devices.

Explore Microchip Microcontrollers and other semiconductor products in the Electronics & Electricals category on EnvMart for industrial-grade solutions. 8-bit PIC architecture with Mid-Range PIC16F core. Flash program memory size of 3.5 kB and 224-bit RAM storage.

Maximum clock frequency of 4 MHz supporting up to 5 MIPS. Operating voltage range from 2 V to a maximum of 5.5 V. Includes 16 programmable I/O pins and 3 timers. Two analogue comparators integrated for application flexibility.

Wide operating temperature range from -40°C to 85°C for industrial use. 18-pin PDIP package type suitable for through-hole mounting. Maximum power dissipation of 800 milliwatts. RISC architecture with 35 instruction set and 8-level hardware stack.
