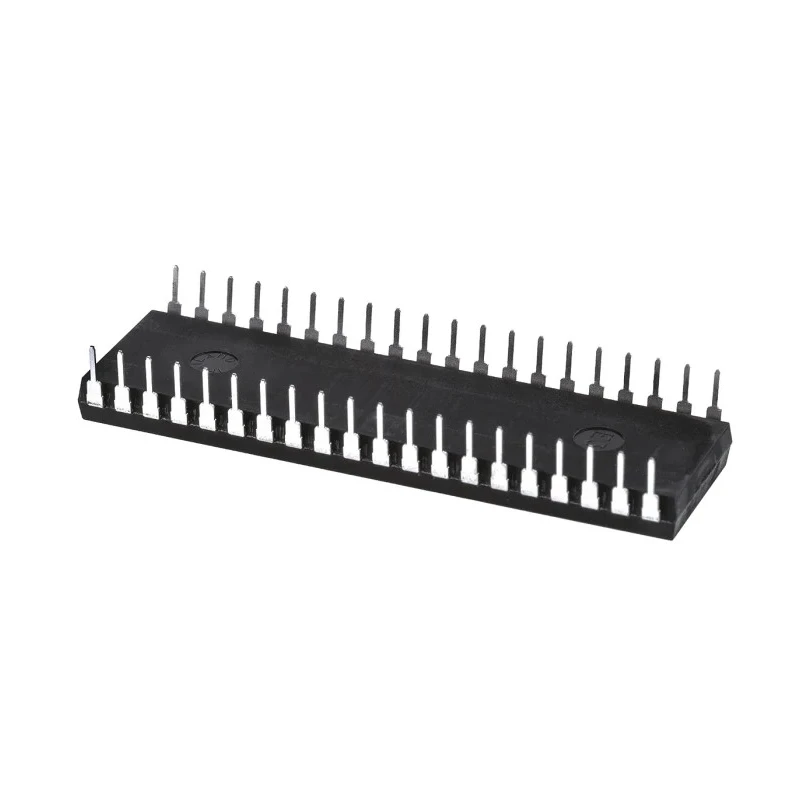

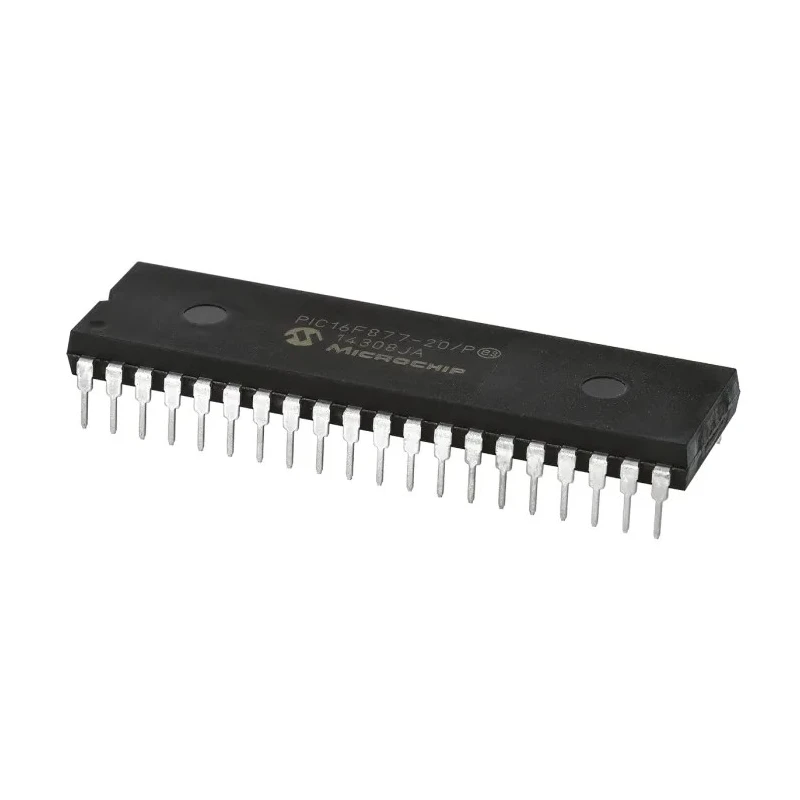

Microchip 8-Bit PIC16F Microcontroller 20 MHz 14kB FLASH 40-Pin PDIP PIC16F877-20/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 52.45mm |
| Model | PIC16F877-20/P |
| Width | 14.22mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 368bit |
| Standards/Approvals | RoHS |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 33 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Provides mid-range PIC architecture with 8-bit data bus width for flexible embedded applications.
- Operates with a maximum supply voltage of 5.5V and minimum supply voltage of 2V.
- Features 33 programmable I/O pins for versatile interfacing options.
- Includes 3 timers and an 8-channel 10-bit Analog-to-Digital Converter (ADC).
- Supports In-Circuit Serial Programming (ICSP) and In-Circuit Debug (ICD) for streamlined development and debugging.
- Maximum clock frequency rated at 20 MHz supporting up to 5 MIPS performance.
- Wide operating temperature range from 0°C to 70°C suitable for various environments.
- Compact dimensions of 52.45 mm length, 14.22 mm width, and 4.06 mm height in PDIP form factor.
Product Description
Microchip PIC16F877-20/P is an 8-bit microcontroller featuring the PIC16F mid-range architecture. It operates at a maximum clock speed of 20 MHz, making it suitable for a wide range of industrial, laboratory, and embedded electronic applications. The device comes in a 40-pin PDIP package designed for through-hole mounting.
Equipped with 14kB of FLASH program memory and 368 bits of RAM, this microcontroller provides substantial memory resources for complex program execution and data storage. The device includes 33 programmable I/O pins, three timers, and an 8-channel 10-bit ADC, enabling it to handle multiple input/output and timing operations efficiently.
Additional peripherals such as two Capture, Compare, PWM modules, synchronous serial port supporting SPI and I2C, and USART make it highly versatile for communication and control tasks. It supports In-Circuit Serial Programming (ICSP) and debugging, facilitating development and iteration cycles in embedded system design.
The PIC16F877-20/P operates with a wide voltage supply between 2V and 5.5V and power dissipation of up to 1W, making it energy efficient. It has an operating temperature range from 0°C to 70°C and is RoHS compliant, aligning with environmental and safety standards.
Its compact physical dimensions (52.45 mm length, 14.22 mm width, 4.06 mm height) in a PDIP form factor provide ease of integration into various electronic systems requiring through-hole mounting.
Mid-range 8-bit PIC microcontroller architecture. 20 MHz maximum CPU speed with 35 instruction set. 14kB FLASH program memory and 368 bits RAM. 33 programmable I/O pins and three timers included. 8-channel 10-bit ADC for analog input conversion.
Supports ICSP and ICD for programming and debugging. Wide voltage range: 2V minimum to 5.5V maximum. Compact 40-pin PDIP package for through-hole mounting. Operating temperature range: 0°C to 70°C. RoHS compliant for environmental safety.
This microcontroller is ideally suited for industrial automation, electronic control systems, laboratory instruments, and general purpose embedded systems. Engineers and designers can leverage its robust performance, flexible I/O and peripheral support, and development features to create reliable and efficient electronic products.
Explore more Microchip Microcontrollers and semiconductor products on EnvMart to build robust electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC16F877-20/P operates at a maximum clock frequency of 20 MHz.
This model features 14kB of FLASH program memory, providing substantial resources for program execution.
The operating temperature range for the PIC16F877-20/P is from 0°C to 70°C.
It includes 33 programmable I/O pins for versatile interfacing options.
The PIC16F877-20/P comes in a 40-pin PDIP package designed for through-hole mounting.
It operates with a minimum supply voltage of 2V and a maximum supply voltage of 5.5V.
Yes, it supports In-Circuit Serial Programming (ICSP) and In-Circuit Debug (ICD) for streamlined development and debugging.
The PIC16F877-20/P has 368 bits of RAM for data storage and execution.
This microcontroller includes three timers for timing operations.
It features an 8-channel 10-bit Analog-to-Digital Converter (ADC) for analog input conversion.
Yes, this microcontroller is RoHS compliant, aligning with environmental and safety standards.
The maximum power dissipation for the PIC16F877-20/P is up to 1W.
