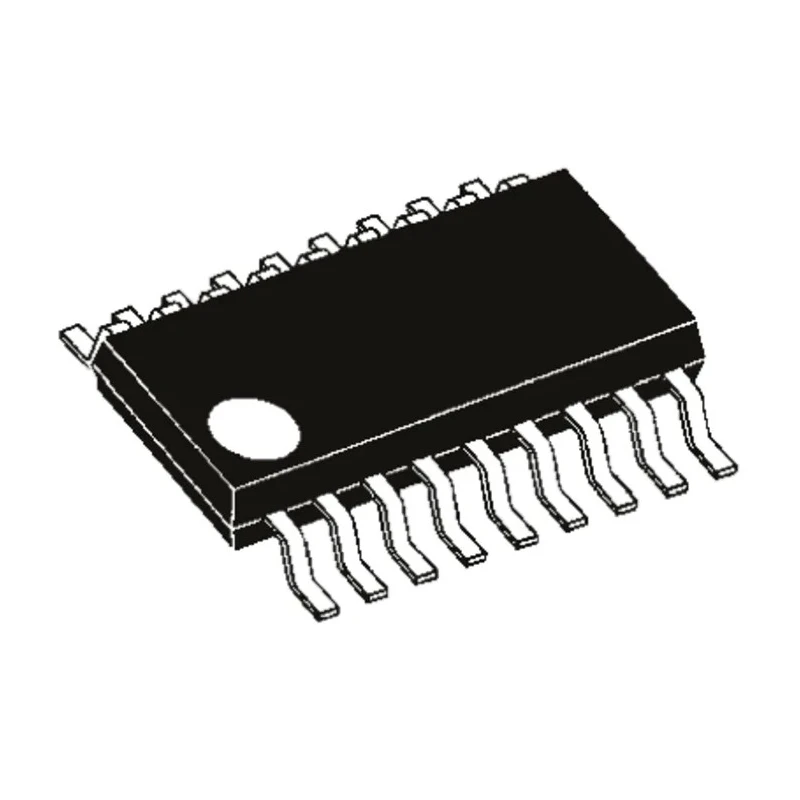

Microchip 8-Bit PIC Microcontroller PIC16F628-20/SO, 20 MHz, 3.5KB FLASH, 18-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.39mm |
| Length | 11.73mm |
| Model | PIC16F628-20/SO |
| Width | 7.59mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Ram size | 224bit |
| Interface Type | USART |
| Standards/Approvals | RoHS |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 16 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 0 bit |
| Program Memory Type | FLASH |
Key Features
- Operates with an 8-bit PIC core based on RISC architecture providing up to 5 MIPS processing speed.
- Features 3.5 KB of program memory and 224 bytes of RAM for efficient code execution.
- Supplies 16 programmable input/output pins for versatile interfacing.
- Includes multiple integrated peripherals such as two comparators, one USART interface, and three timers.
- Operates on a voltage range from 3 V to 5.5 V with a max power dissipation of 800 mW.
- Packaged in a compact 18-pin SOIC surface mount form factor with dimensions of 11.73 mm length, 7.59 mm width, and 2.39 mm height.
- Equipped with advanced features including Power-On Reset, Watchdog Timer, Brown-Out Reset, and In-Circuit Serial Programming (ICSP).
- Supports industrial operating temperatures from 0°C to 70°C, ensuring reliable performance.
Product Description
Microchip PIC16F628-20/SO is a robust 8-bit PIC microcontroller designed around Microchip's Mid-Range core architecture. Operating at a maximum clock frequency of 20 MHz, it delivers efficient performance with up to 5 million instructions per second (MIPS).
This microcontroller includes 3.5 KB of FLASH program memory and 224 bytes of RAM, complemented by a Data EEPROM of up to 128 bytes for data retention. It integrates 16 programmable digital I/O pins, providing flexibility for interfacing with external components and systems.
The package type is an 18-pin SOIC designed for surface mount technology facilitating compact and efficient PCB designs. Its physical dimensions measure approximately 11.73 mm in length, 7.59 mm in width, and 2.39 mm in height.
Core features include two analog comparators, a Universal Synchronous Asynchronous Receiver Transmitter (USART) for serial communication, two 8-bit timers, and a 16-bit timer. It supports several power management and protection features like Power-On Reset, Power-Up Timer, Oscillator Start-Up Timer, Brown-Out Reset, and Watchdog Timer, improving system stability and reliability.
The device operates over a supply voltage range of 3 V to 5.5 V, with a maximum power dissipation of 800 mW. It is RoHS compliant and designed for industrial grade operation with temperature support from 0°C to 70°C.
The PIC16F628-20/SO microcontroller is well suited for industrial, automation, embedded systems, and electronic applications requiring reliable microcontroller performance with efficient power management and peripheral integration.
Operates at 20 MHz maximum CPU speed. Integrates 16 programmable I/O pins and multiple timers. Supports USART communication interface. Compact 18-pin SOIC surface mount package. Wide operating voltage range of 3 V to 5.5 V.
Embedded power-on reset and watchdog timer features. Industrial temperature rating from 0°C to 70°C. Explore Microchip Microcontrollers and components at EnvMart for your electronic and embedded project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It has 3.5 KB of FLASH program memory.
The operating voltage range is from 3 V to 5.5 V.
This model features 16 programmable input/output pins.
It includes two analog comparators, one USART interface, and three timers.
The dimensions are approximately 11.73 mm in length, 7.59 mm in width, and 2.39 mm in height.
The maximum power dissipation is 800 mW.
It supports industrial operating temperatures from 0°C to 70°C.
It is packaged in an 18-pin SOIC surface mount form factor.
It operates with an 8-bit PIC core based on RISC architecture.
Yes, it is RoHS compliant.
This microcontroller integrates three timers.
