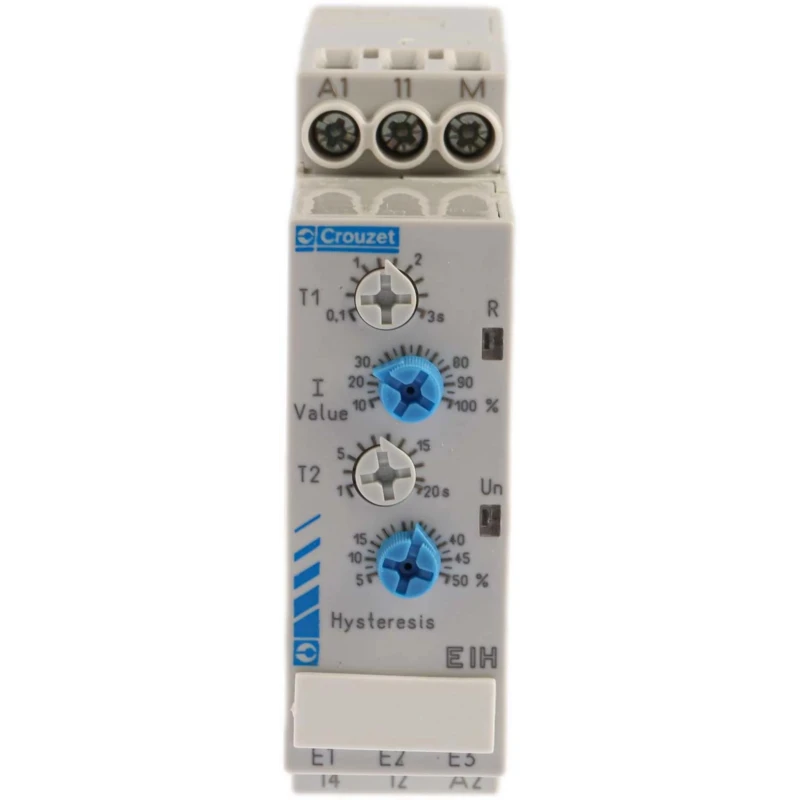

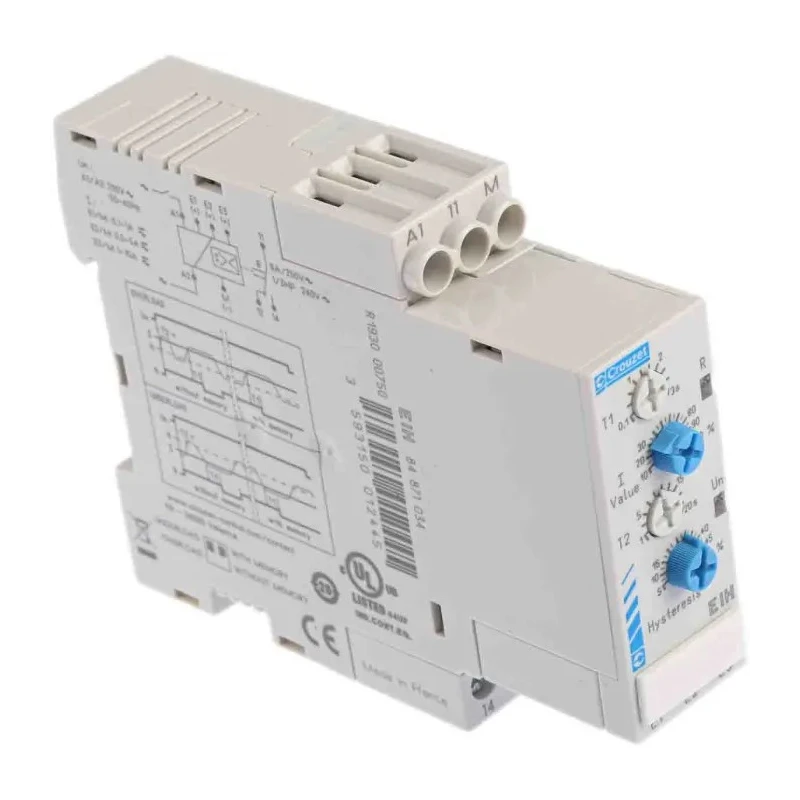

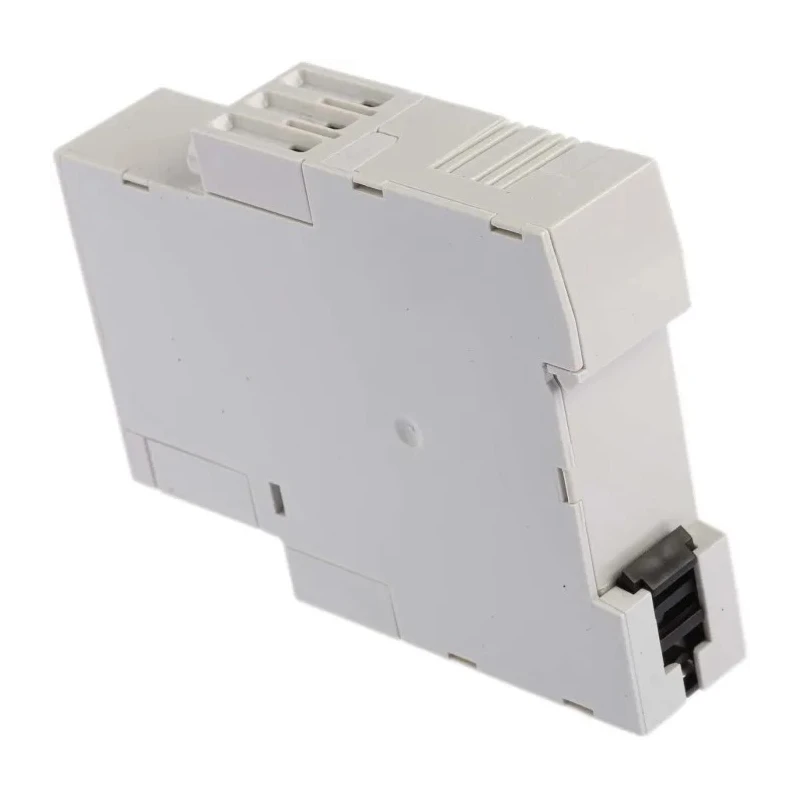

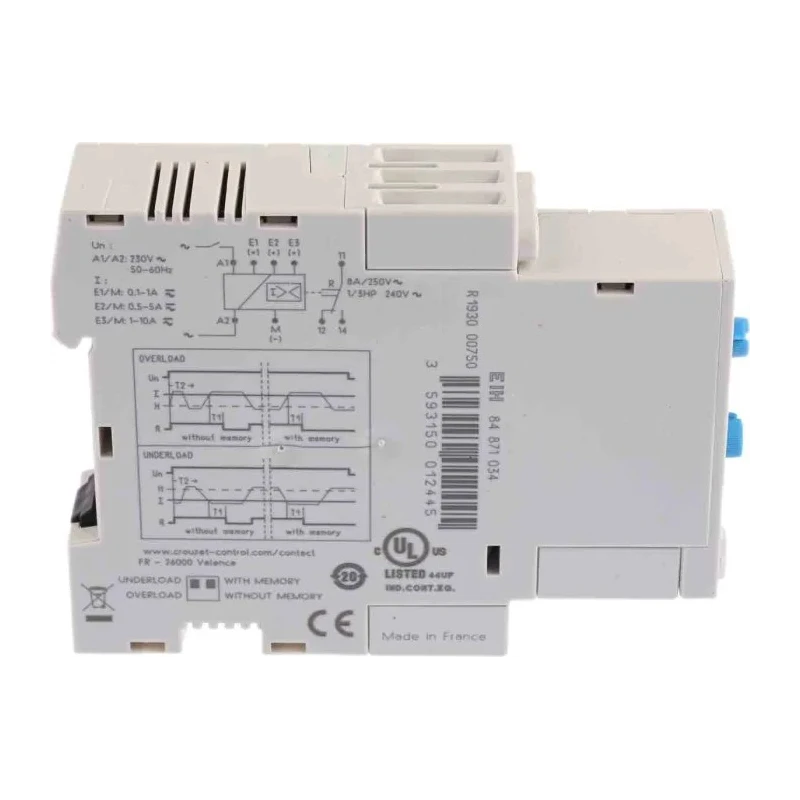

Crouzet Monitoring Relay 1 Phase SPDT DIN Rail 24 V dc 230V ac 0.1A to 10A 84871034
Specifications
| Country of Origin | France |
|---|---|
| Brand | Crouzet |
| Height | 78mm |
| Length | 103.5mm |
| Model | 84871034 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | EIH |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | SPDT |
| Time Delay | 0.1 to 3 s |
| Minimum Operating Temperature | +50°C |
| Electrical Phase | 1 |
| Standards/Approvals | RoHS |
| Supply DC Voltage | 24 V dc |
| Supply AC Voltage | 230V ac |
| Minimum Current Sensed | 0.1A |
| Maximum Current Sensed | 10A |
| Current Sensitivity | Undercurrent, Overcurrent |
| Relay Contact Current | 8A |
| Crouzet Monitoring RelayBrand | Crouzet |
Key Features
- This relay features adjustable threshold and hysteresis settings for precise current control.
- It includes dip switch selection for overcurrent or undercurrent sensitivity.
- The device supports a time delay range from 0.1 to 3 seconds for operational flexibility.
- Compact dimensions allow easy installation on DIN rails with a size of 78mm height, 103.5mm length, and 22.5mm width.
- It operates reliably within a temperature range up to 50°C and complies with RoHS standards.
- The relay contacts support a current of up to 8A to handle various electrical loads.
- Crouzet 84871034 is built for industrial and electrical automation applications requiring accurate current monitoring.
Product Description
Crouzet 84871034 Monitoring Relay is a robust electrical component designed for single-phase current monitoring with SPDT contact configuration, suitable for DIN rail mounting. Operating on 24 V dc and 230V ac supply voltages, it accurately senses current ranging from 0.1A to 10A, supporting both overcurrent and undercurrent detection with adjustable thresholds and hysteresis for precise control.
This monitoring relay includes a configurable time delay between 0.1 to 3 seconds, enabling tailored response times to electrical conditions. Its compact form factor - 78mm in height, 103.5mm in length, and 22.5mm wide - allows seamless integration into electrical panels and automation systems.
Designed to operate reliably up to 50°C, it complies with RoHS standards, ensuring environmental compliance and safety. The relay contact supports an 8A current, making it suitable for controlling a wide range of loads in industrial, HVAC, manufacturing, and automation settings.
The product belongs to the EIH series and originates from France, reflecting precise engineering and quality manufacturing standards. This relay is ideal for applications requiring sensitive current monitoring and protective switching in electrical installations, industrial automation, and signal conditioning.
Adjustments for threshold and hysteresis are user-configurable, while the selection between overcurrent and undercurrent monitoring is facilitated through dip switch settings, providing versatile operational functionality.
This relay supports monitoring of electrical phase and current conditions with high sensitivity. It features a durable DIN rail mount suitable for industrial electrical enclosures. The current thresholds can be finely tuned between 0.1A and 10A to match specific monitoring needs.
Operational temperature allowances make it reliable in diverse environmental conditions. Compact design optimizes space usage inside control panels. The product complies with European environmental and safety regulations.
Suitable for monitoring electrical loads in industrial, HVAC, and manufacturing systems. Explore more products in the Monitoring Relay category on EnvMart for a comprehensive range of advanced relay solutions by Crouzet and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This monitoring relay can sense current in the range of 0.1A to 10A, making it suitable for various electrical loads.
It operates on a supply voltage of 24 V DC and 230 V AC, providing flexibility for different electrical systems.
The maximum operating temperature for this relay is 50°C, ensuring reliable performance in various environments.
This model features an adjustable time delay range from 0.1 to 3 seconds, allowing for tailored response times to electrical conditions.
It has a Single Pole Double Throw (SPDT) contact configuration, suitable for various switching applications.
The relay has compact dimensions of 78mm in height, 103.5mm in length, and 22.5mm in width, facilitating easy installation on DIN rails.
This relay supports both overcurrent and undercurrent sensitivity, which can be configured using dip switches.
The relay contact supports a current rating of up to 8A, allowing it to handle various electrical loads effectively.
Yes, it complies with RoHS standards, ensuring environmental compliance and safety in its applications.
This monitoring relay is manufactured in France, reflecting precise engineering and quality standards.
It belongs to the EIH series, which is designed for industrial and electrical automation applications.
This model is designed for DIN rail mounting, making it easy to integrate into electrical panels and automation systems.
