Amphenol Industrial MIL Spec Circular Connector Copper Alloy Straight 24 Way Cable Male Contacts, Silver Plating MS3106A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200, 250V ac |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 5.5A |
| Model | MS3106A |
| IP Rating | IP67 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Series | MS3106A |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Silver |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shell Size | 24 |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Screw Coupling |
| Shell Plating | Zinc Cobalt |
Key Features
- Constructed with a high-quality copper alloy for robust contact performance.
- Features silver-plated male contacts for optimal conductivity and corrosion resistance.
- The connector shell is zinc cobalt plated with olive drab chromate for superior corrosion resistance.
- Rated IP67 for protection against dust and water ingress in harsh environments.
- Operates reliably from -55°C up to 125°C, suitable for demanding industrial applications.
- Meets MIL-DTL-5015 military standards ensuring compatibility and ruggedness.
- Soldier termination type with screw coupling mating ensures secure and quick connections.
- Designed with a single key/keyway shell polarization to prevent mismating.
Product Description

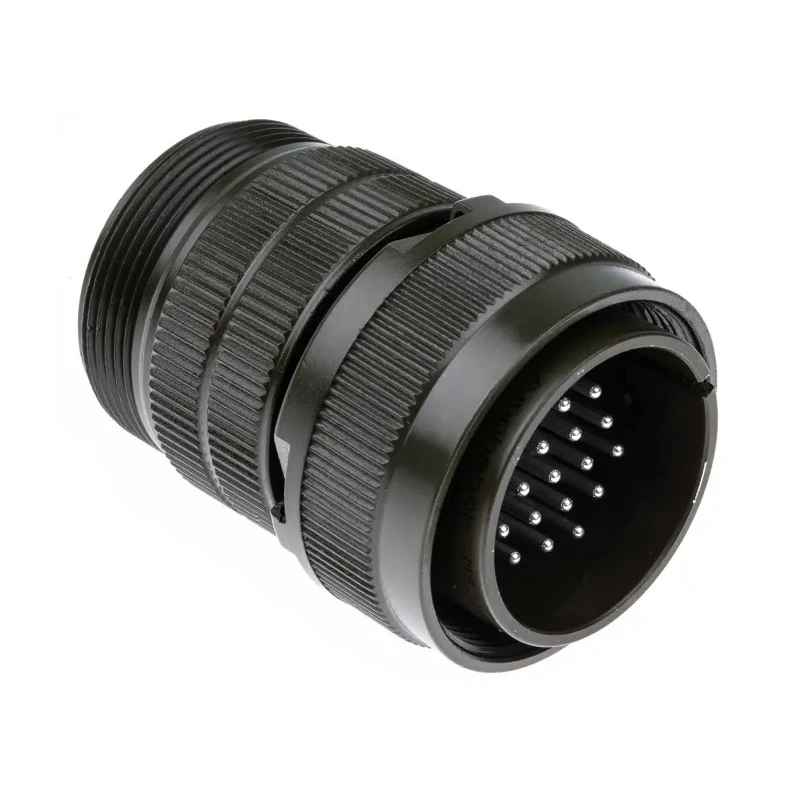

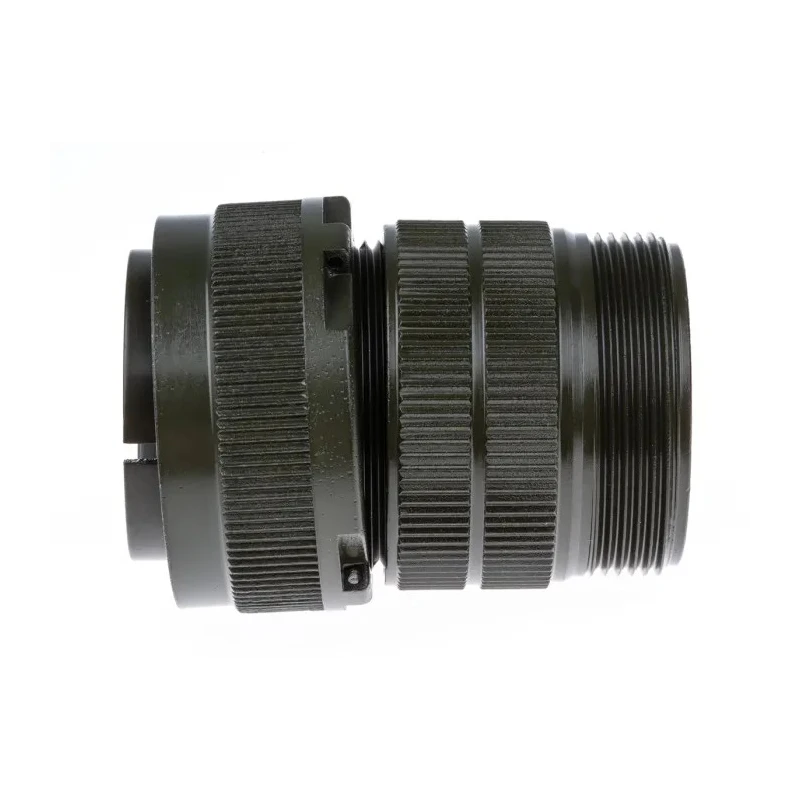

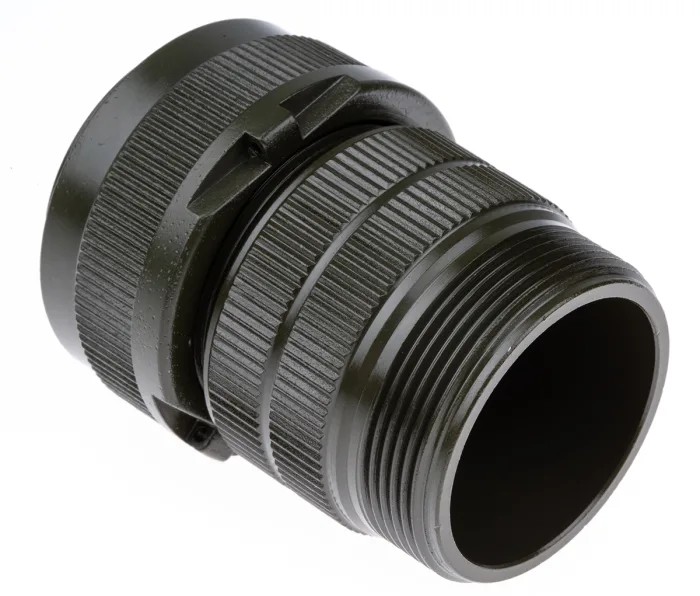

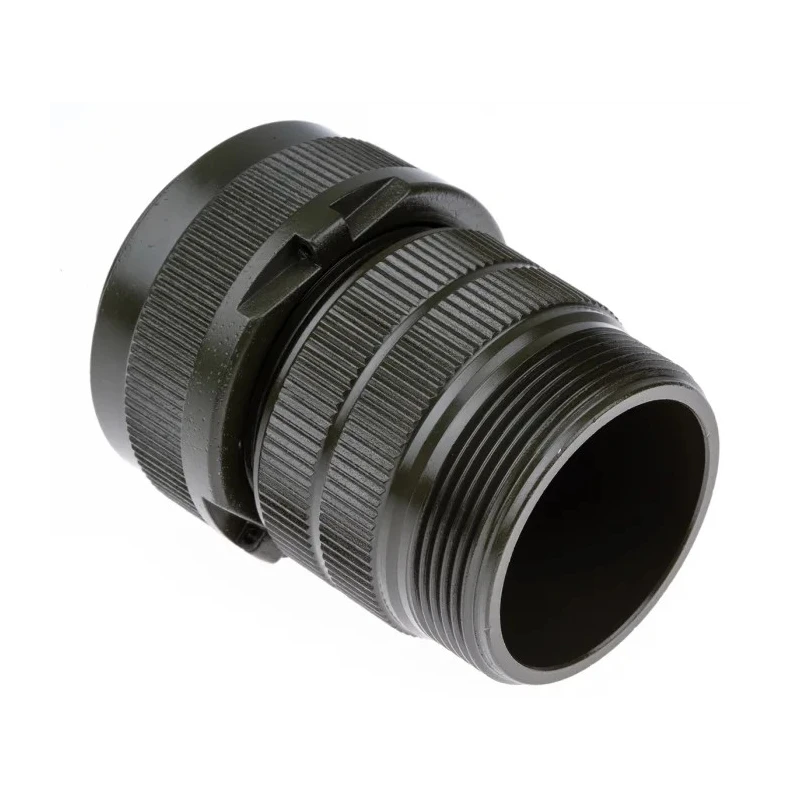

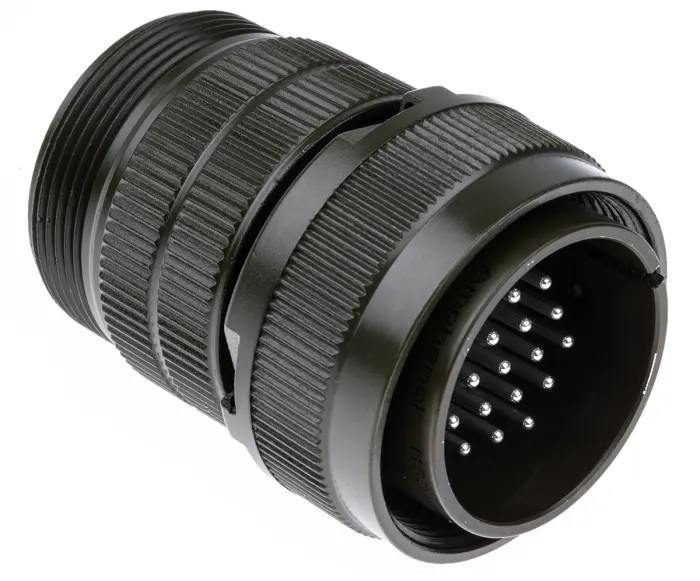

Amphenol Industrial MS3106A MIL Spec Circular Connector is a high-performance 24 way cable mount circular plug designed for use in industrial and military applications. The male contacts are made of copper alloy and plated with silver, ensuring excellent electrical conductivity and durability under demanding conditions. The shell is constructed from a high-grade aluminium alloy with a zinc cobalt plating and olive drab chromate finish, providing superior corrosion resistance and mechanical protection.
Designed to interface with MS Series 3100, 3101, and 3102 receptacles, this connector features threaded couplings and single key/keyway shell polarization to prevent mismating and ensure a reliable connection. It is rated IP67, indicating complete protection against dust ingress and water immersion, making it suitable for use in challenging environments.
The connector supports voltages of 200 and 250 volts AC and a maximum current rating of 5.5 amps. It is engineered to operate within a temperature range from -55°C to 125°C, accommodating harsh operating environments such as shipboard installations, communication equipment, and testing systems.
The solder bucket type termination allows for secure contact retention, and the straight orientation lends itself well to cable-mounted configurations where space and durability are essential.
Constructed from copper alloy with silver-plated contacts for excellent electrical and corrosion resistance. Aluminium alloy shell with zinc cobalt plating and olive drab chromate finish for mechanical robustness. IP67 rated for environmental protection against dust and water.
Meets MIL-DTL-5015 military specifications for superior quality and reliability. Single key/keyway shell polarization prevents connector mismatching. Threaded screw coupling enables quick, robust mating. Operating temperature range from -55°C to 125°C for versatile industrial use.
Suitable for powering, testing, communication, shipboard, and military applications.
This Amphenol MIL Spec connector series is widely used in commercial and industrial sectors requiring dependable and low-cost cable mount connectors compliant with MIL-C-5015 standards. It ensures secure electrical connections in rugged environments.
Explore the full range of Mil Spec Circular Connectors in the Electronics & Electricals category on EnvMart for additional related products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 5.5 amps.
It supports voltage levels of 200 and 250 volts AC.
This connector operates reliably within a temperature range from -55°C to 125°C.
It features a solder termination type, which allows for secure contact retention.
The connector is rated IP67, providing complete protection against dust ingress and water immersion.
This model has 24 male contacts.
The contacts are made of copper alloy and are silver-plated, while the shell is zinc cobalt plated with an olive drab chromate finish.
It utilizes a screw coupling mating type for secure and quick connections.
Yes, it meets MIL-DTL-5015 military specifications, ensuring compatibility and ruggedness.
The orientation of this connector is straight, suitable for cable-mounted configurations.
The country of origin for this connector is India.
It is suitable for powering, testing, communication, shipboard, and military applications.
