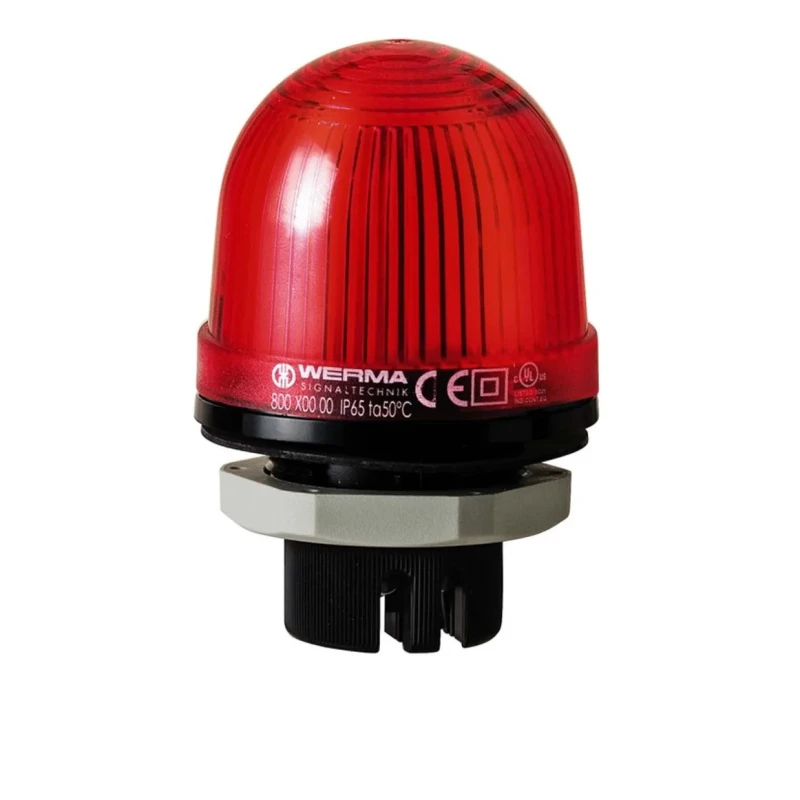

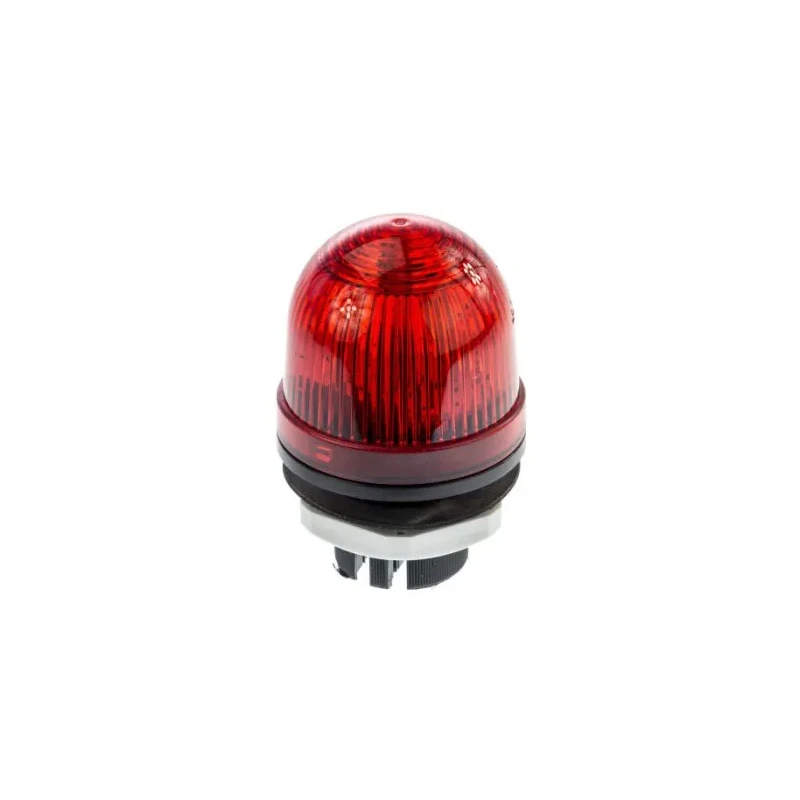

Werma EM 801 Series Red Beacon 24V AC/DC Steady Panel, LED Bulb, IP65 IP65

Werma IP65 red beacon model IP65 from the EM 801 Series is a 24V AC/DC steady panel-mounted signaling device featuring a highly efficient LED bulb designed for industrial applications. This beacon delivers consistent red light to alert workers to hazards effectively.

Constructed with a robust ABS blend housing paired with a shock-resistant polycarbonate lens, it ensures durability in demanding environments. The beacon supports a panel mount installation and offers optional pole mounting for increased visibility above machinery or equipment.

Operating at a maximum supply voltage of 24V AC/DC and consuming only 45mA of current, this device combines energy efficiency with reliable performance. Its IP65 ingress protection rating guarantees dust-tight sealing and resistance to low-pressure water jets, suitable for harsh industrial settings.

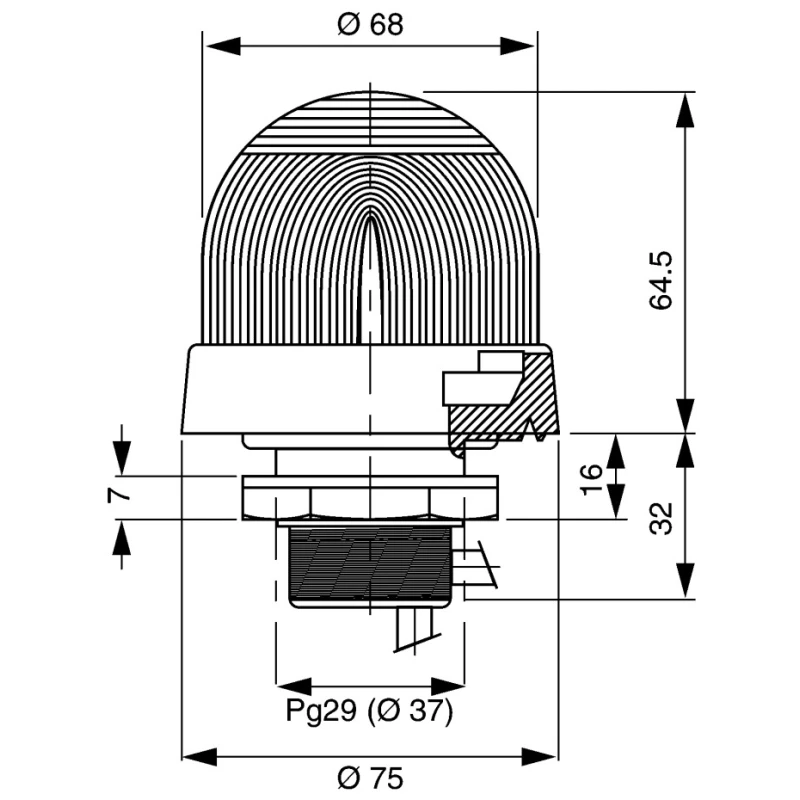

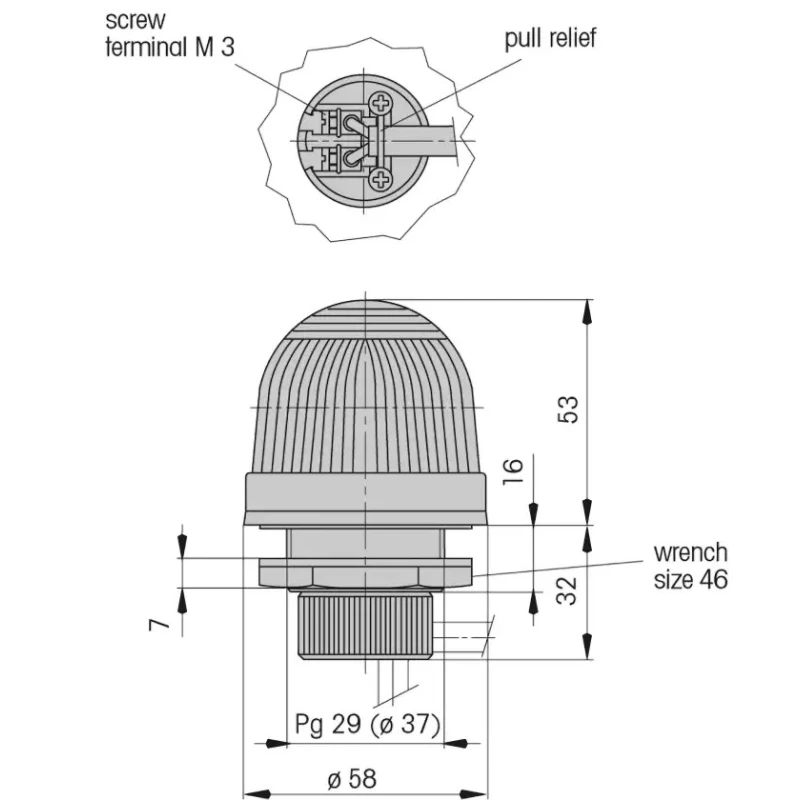

The beacon maintains functionality across a broad temperature range from -20°C to +50°C, making it adaptable to various climatic and operating conditions. With a compact profile - a 57mm base diameter and an overall height of 85mm - installation space requirements are minimal.

Compliance with EN 60598 and VDE 0711 T1 standards confirms its safety and quality for industrial use. The long service life of the LED bulb, approximately 100,000 hours, minimizes maintenance needs and operating costs.

Typical applications include machine and equipment safety, conveyor belt and production line automation, and other mechanical engineering environments requiring reliable visual signaling.

The beacon’s polycarbonate dome is shock and shatter-resistant to withstand mechanical impacts, while vandal-proof features enhance security for industrial use. The LED bulb offers energy-efficient steady red light for clear hazard alerts.

The beacon housing is made of durable ABS blend with a shock-resistant polycarbonate lens. It supports panel mounting with optional pole mounting flexibility. The device operates at 24V AC/DC with a low 45mA current consumption.

Rated IP65 for protection against dust and low-pressure water jets. Operates reliably across a temperature range from -20°C to +50°C. Has a compact 57mm base diameter and total height of 85mm. Conforms to EN 60598 and VDE 0711 T1 standards.

Designed for use in mechanical engineering, conveyor automation, and equipment safety applications. Long LED lifespan of approximately 100,000 hours ensures low maintenance. Explore more high-quality industrial automation signaling solutions in our Electronics & Electricals department at EnvMart.
