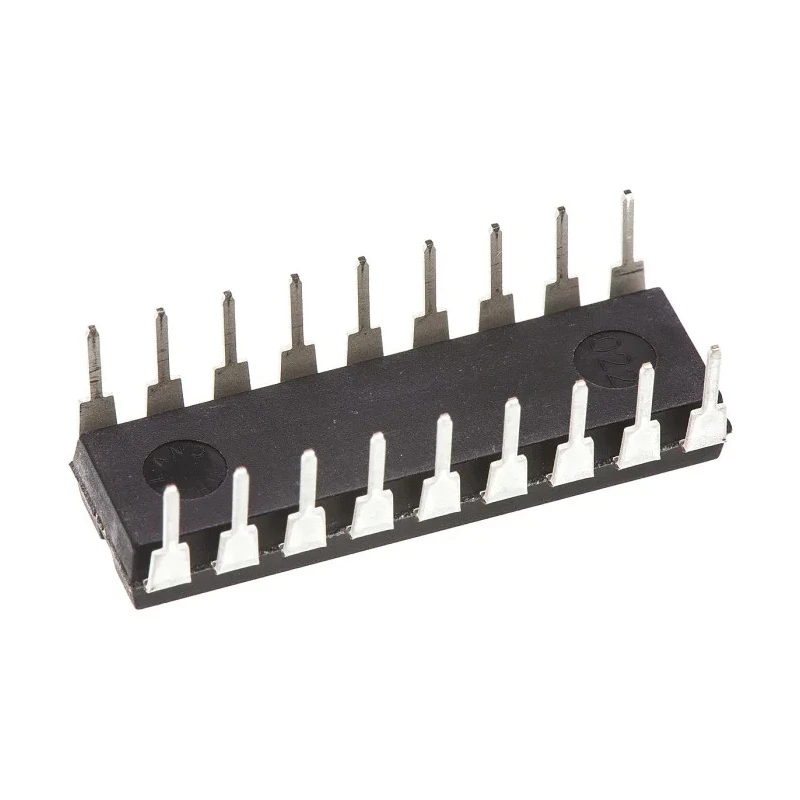

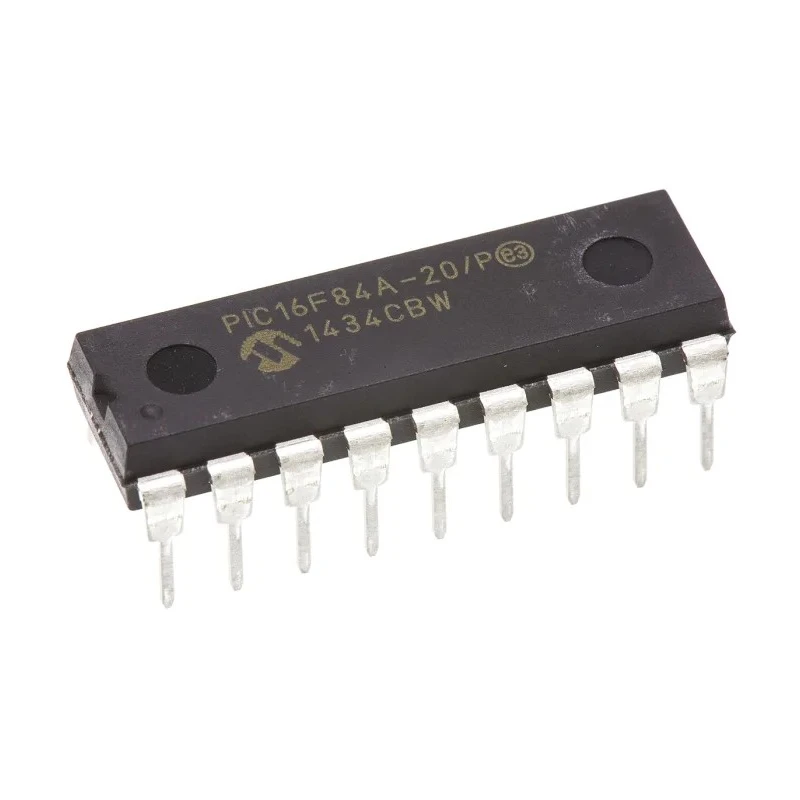

Microchip PIC16F 8-Bit PIC Microcontroller 1kB FLASH 20 MHz 18-Pin PDIP PIC16F84A-20/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 22.99mm |
| Model | PIC16F84A-20/P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 68bit |
| Interface Type | Graphical User Interface |
| Standards/Approvals | RoHS |
| Pin Count | 18 |
| Maximum Supply Voltage | 6V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 13 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 0 |
| Program Memory Type | FLASH |
Key Features
- Built on Microchip's PIC architecture with an 8-level hardware stack and 35 instruction set.
- Operates with a maximum clock frequency of 20 MHz providing up to 5 MIPS processing speed.
- Equipped with 1 kB of FLASH program memory and 68 bytes of RAM for efficient program storage and execution.
- Features 13 programmable I/O pins and one 8-bit timer for versatile peripheral control.
- Power supply range from 2 V to 6 V ensuring flexible operating voltages.
- Compact dimensions of 22.99 mm length, 6.6 mm width, and 3.68 mm height fitting in PDIP through-hole mounting.
- Includes robust built-in safety and stability features such as Power-On Reset, Power-Up Timer, Brown-Out Reset, and Watchdog Timer.
- Program memory type is FLASH enabling in-circuit serial programming for development convenience.
Product Description
The Microchip PIC16F84A-20/P is a versatile 8-bit PIC microcontroller designed based on Microchip's Mid-range PIC architecture, ideal for embedded applications requiring efficient control and processing capabilities. With a maximum clock frequency of 20 MHz, it delivers up to 5 MIPS allowing responsive and precise control.
This microcontroller features 1 kB of FLASH memory along with 68 bytes of RAM, offering ample space for user programming and data handling. It includes 13 programmable input/output pins and an 8-bit timer, facilitating various peripheral interfacing for industrial, laboratory, automotive, and commercial control systems.
The PDIP package with through-hole mounting provides a compact footprint with dimensions of 22.99 mm by 6.6 mm by 3.68 mm. The device operates within a supply voltage range of 2 V to 6 V and supports functionalities like Power-On Reset, Watchdog Timer, Brown-Out Reset, and Power-Up Timer to enhance operational reliability under varying conditions.
Designed to comply with RoHS standards, the PIC16F84A-20/P ensures environmentally friendly manufacturing practices. The microcontroller is suitable for use in industrial controllers, automotive systems (excluding automotive standard certification), consumer electronics, and other embedded control applications requiring an efficient 8-bit processor.
Utilizes Microchip mid-range RISC architecture with 35 instruction set and 8-level hardware stack. Operates reliably over 0°C to 70°C temperature range for robust performance. Offers flexible programming via in-circuit serial programming (ICSP) for development ease.
Provides stable power handling with a maximum power dissipation of 800 mW. Ensures long lifecycle support for embedded designs and applications.
Set a strong foundation for embedded system design using the Microchip PIC16F84A-20/P microcontroller available in an 18-pin PDIP package with robust features targeted at industrial and commercial electronics applications. Explore related Microcontroller products at EnvMart for your advanced electronics development projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz, providing up to 5 MIPS processing speed.
It features 1 kB of FLASH program memory, allowing for efficient program storage and execution.
The PIC16F84A-20/P includes 13 programmable input/output pins for versatile peripheral control.
It operates reliably over a temperature range of 0°C to 70°C.
This microcontroller operates within a supply voltage range of 2 V to 6 V.
The dimensions of this model are 22.99 mm in length, 6.6 mm in width, and 3.68 mm in height.
It utilizes through-hole mounting in a PDIP package.
This microcontroller includes one 8-bit timer for various applications.
Yes, it is designed to comply with RoHS standards, ensuring environmentally friendly manufacturing practices.
It uses a RISC instruction set architecture with 35 instructions.
The maximum power dissipation for this model is 800 mW.
It has 68 bytes of RAM for data handling and program execution.
