TDK-Lambda Switching Power Supply 4 Output 24V DC 130W Chassis Mount ZWQ130-5224/A

Free Delivery in India | Lowest Global Shipping Charges

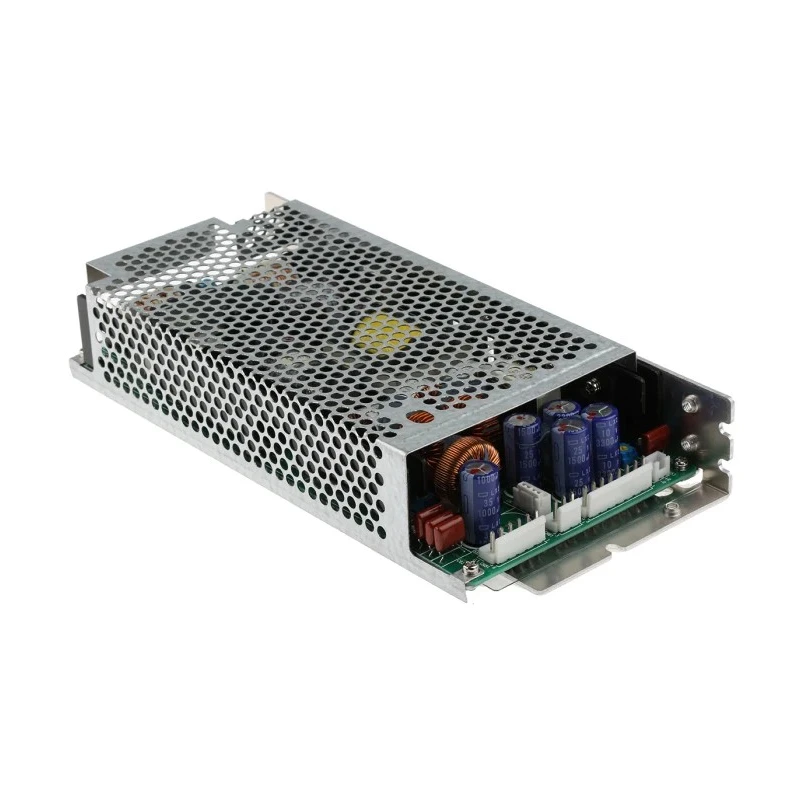

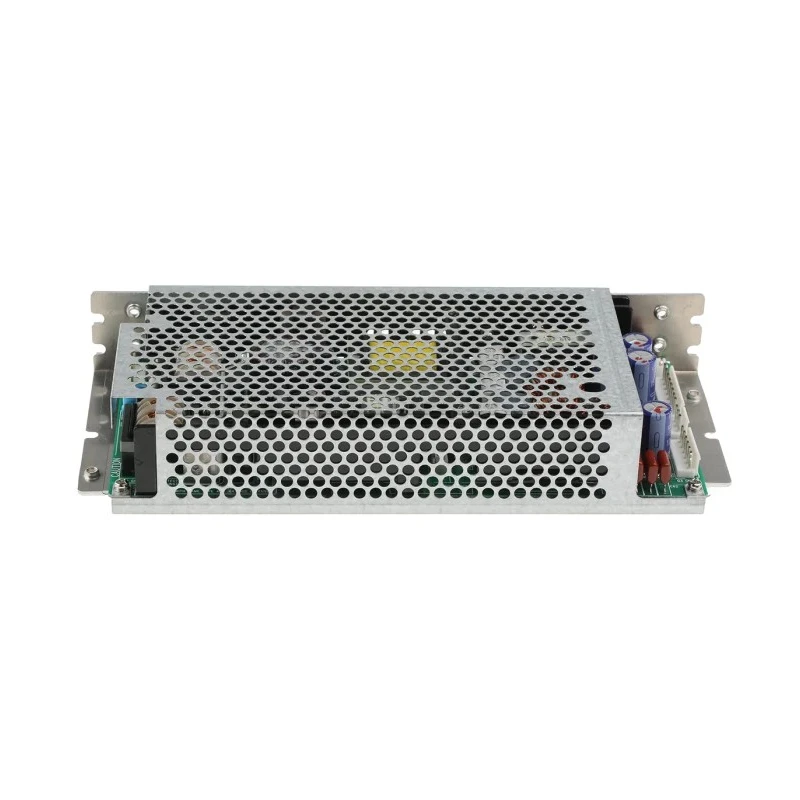

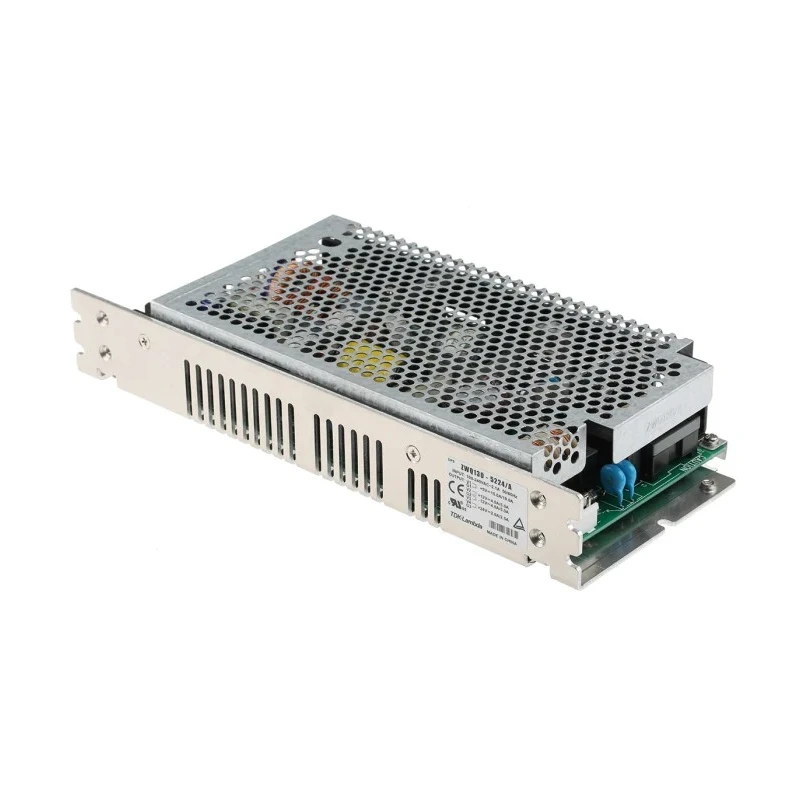

TDK-Lambda Switching Power Supply 4 Output 24V DC 130W Chassis Mount ZWQ130-5224/A

Name: TDK-Lambda Switching Power Supply 4 Output 24V DC 130W Chassis Mount ZWQ130-5224/A
Brand: TDK-Lambda
SKU: 120075



Category Switching Power Supplies Brand TDK-Lambda Condition New

Specifications

Country of Origin	China
Brand	TDK-Lambda
Power	130W
Efficiency	72%
Length	225mm
Model	ZWQ130-5224/A
Depth	106mm
Gross Weight	730g
Width	106mm
Mount Type	Chassis
Series	ZWQ
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Number of outputs	4
Maximum Input Voltage	370, 265V dc
Maximum Output Voltage	24V dc
Minimum Input Voltage	85V ac

Key Features

Chassis mount design enables rack mounting in 1U height card format.
Universal input voltage range from 85V AC to 265V AC and 120V DC to 370V DC.
High efficiency of 72% ensures reduced power loss during operation.
Overcurrent and overvoltage protection with remote sensing capability.
Four output voltages with rated currents of 15A, 4A, 4A, and 2A respectively.
Supplied with protective cover and L bracket for secure mounting.
Meets multiple international safety and EMC standards including CE and FCC.
Suitable for broadcast, industrial, communication, LED signage, and test applications.

Product Description

TDK-Lambda ZWQ130-5224/A switching power supply is a high-performance 130W quad output AC-to-DC embedded unit designed for applications requiring multiple output voltages. It delivers a maximum output voltage of 24V DC and offers stable power across four outputs, making it suitable for complex industrial and commercial setups. The chassis mount design with a compact 1U height allows easy rack mounting in card format, saving space in control panels.

This model operates over a wide universal input voltage range of 85V AC to 265V AC and 120V DC to 370V DC, providing flexibility across different power environments. The power supply runs efficiently with 72% efficiency and supports operating temperatures from -10°C to 70°C, suitable for harsh operating conditions.

Protection features such as overcurrent and overvoltage safeguards along with remote sensing ensure reliable and precise voltage delivery to connected equipment. The outputs have current ratings of 15A at 5V DC, 4A at both 12/15V DC and -12/15V DC, and 2A at 24V DC. The supply is delivered with a protective cover and mounting L bracket; connectors are not included and require JST VH series connectors.

This switching power supply complies with multiple international standards including EN 55022-B, EN 61000 series, CE, FCC Class B, IEC/UL/CSA EN 62368-1, VCCI-B, and others, meeting stringent electromagnetic compatibility and safety requirements. It is ideal for use in broadcast systems, communication equipment, industrial machinery, LED signage, and test and measurement instruments.

Compact chassis mount design allows space-saving installation. Wide universal input voltage accommodates global power sources. Advanced protection features for overcurrent and overvoltage. Multiple output voltages delivered simultaneously for diverse applications.

Certified for international safety and EMC standards compliance. Ideal for industrial, broadcast, communication, LED signage, and test equipment. Includes cover and mounting bracket; connectors sold separately. Explore more comprehensive Switching Power Supplies at EnvMart for your industrial, laboratory, and commercial power needs.
