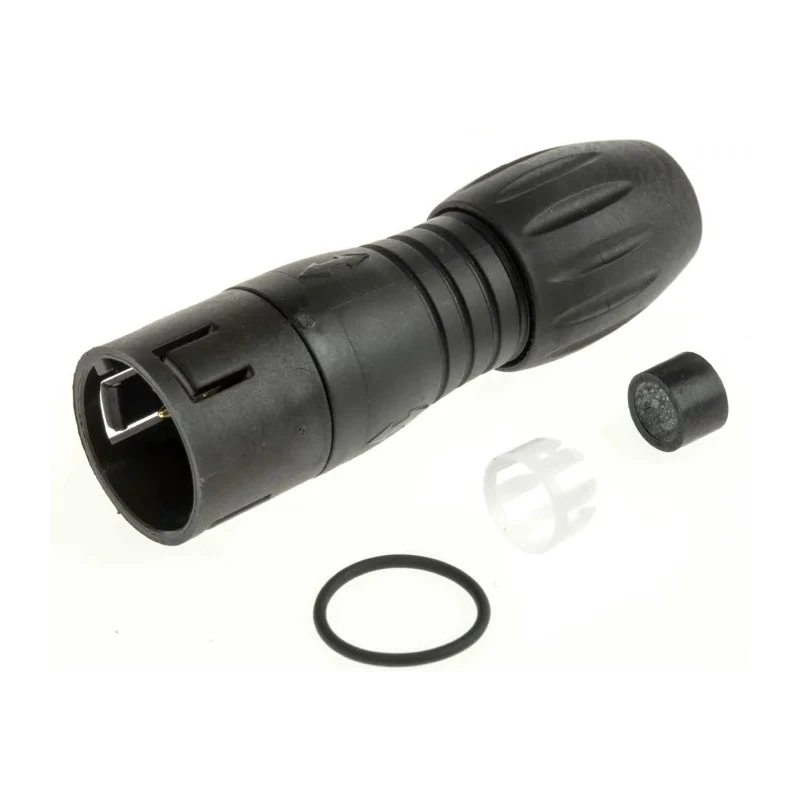

binder Circular Connector Miniature 3 Contacts Socket Male Cable Mount IP67 250V 7A Bayonet 720 Series 99-9105-03-03
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | binder |
| Orientation | Straight |
| Current | 7A |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | 720 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shell Size | 16 mm |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Plug/Socket | Socket |
Key Features
- Supports a current rating of 7 amperes for reliable power transmission.
- Equipped with gold-plated brass contacts for enhanced conductivity and corrosion resistance.
- Features a bayonet mating type and straight orientation for secure and easy connection.
- Constructed with polyamide housing material for durability and chemical resistance.
- Rated IP67, offering protection against dust and immersion in water up to 1m depth.
- Operates reliably between -40°C and 85°C temperature range.
- Termination is designed for soldering, ensuring electrical integrity.
- Shell size measures 16 mm, suitable for miniature cable assemblies.
Product Description
binder 99-9105-03-03 circular connector is a miniature industrial socket connector with 3 male contacts designed for cable mounting applications. This connector belongs to the 720 series, known for its ruggedness and suitability in industrial and medical environments.
It provides a current rating of 7A and a voltage rating up to 250V, making it suitable for a range of low-voltage power and signal connections. The connector's contacts are gold-plated brass, which offers high electrical conductivity and excellent durability against corrosion.
The bayonet mating mechanism with straight orientation allows for quick and secure connection and disconnection cycles. The polyamide housing ensures mechanical strength while protecting the internal components from environmental damage.
The IP67 rating certifies that this connector is dust-tight and water-resistant up to immersion in one meter of water, making it ideal for harsh industrial conditions. The connector supports operation across a broad temperature range from -40°C to 85°C, ensuring performance stability in various climates.
The termination style is solder, suited for precise and durable cable assembly integration. Shell size is 16 mm, specifically engineered for miniature connector applications requiring compact and reliable connections.
Supports a current rating of 7 amperes for reliable power transmission. Equipped with gold-plated brass contacts for enhanced conductivity and corrosion resistance. Features a bayonet mating type and straight orientation for secure and easy connection.
Constructed with polyamide housing material for durability and chemical resistance. Rated IP67, offering protection against dust and immersion in water up to 1m depth. Operates reliably between -40°C and 85°C temperature range.
Termination is designed for soldering, ensuring electrical integrity. Shell size measures 16 mm, suitable for miniature cable assemblies.

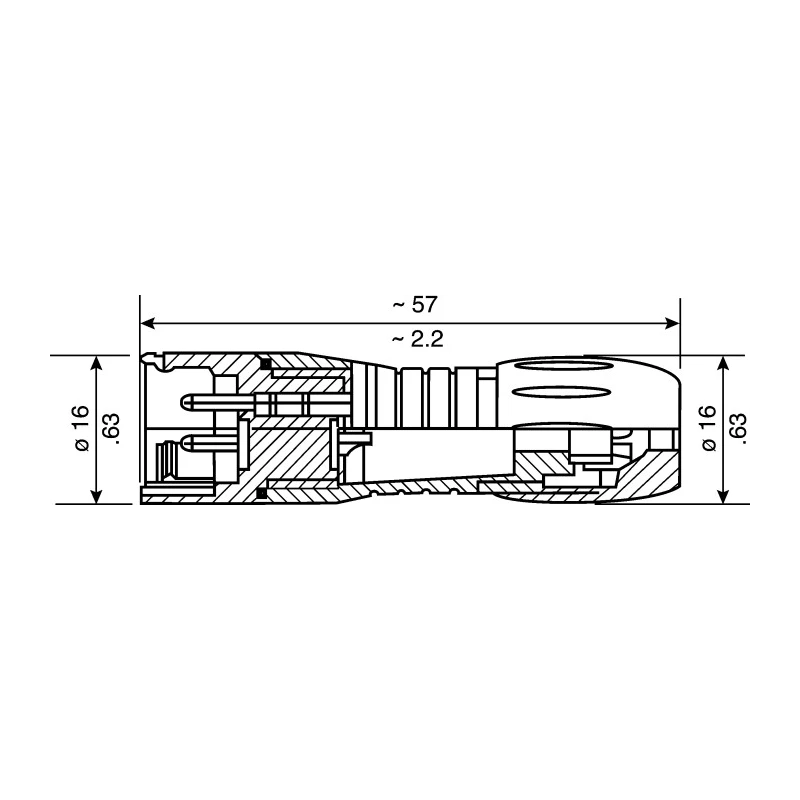

This binder circular connector is widely used across industrial automation, manufacturing equipment, medical devices, and other commercial applications demanding durable and reliable electrical connections. For additional technical drawings, schematics, and design resources, users can access the related documentation.
Explore more Industrial Circular Connectors at EnvMart for tailored solutions to your electrical connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 7 amperes, ensuring reliable power transmission.
The connector has a voltage rating of 250V, suitable for low-voltage power and signal connections.
It features a solder termination type, which ensures electrical integrity in cable assembly.
It is rated IP67, providing protection against dust and immersion in water up to 1 meter in depth.
The housing is made from polyamide, and the contacts are gold-plated brass for enhanced conductivity and corrosion resistance.
It operates reliably between -40°C and 85°C, making it suitable for various climates.
The shell size measures 16 mm, designed for miniature cable assemblies.
This model has 3 male contacts, facilitating multiple connections in a compact design.
It features a bayonet mating type, allowing for quick and secure connections and disconnections.
It is widely used in industrial automation, manufacturing equipment, and medical devices, where durable electrical connections are essential.
The country of origin for this connector is Germany.
It has a straight orientation, which aids in easy connection and disconnection.
