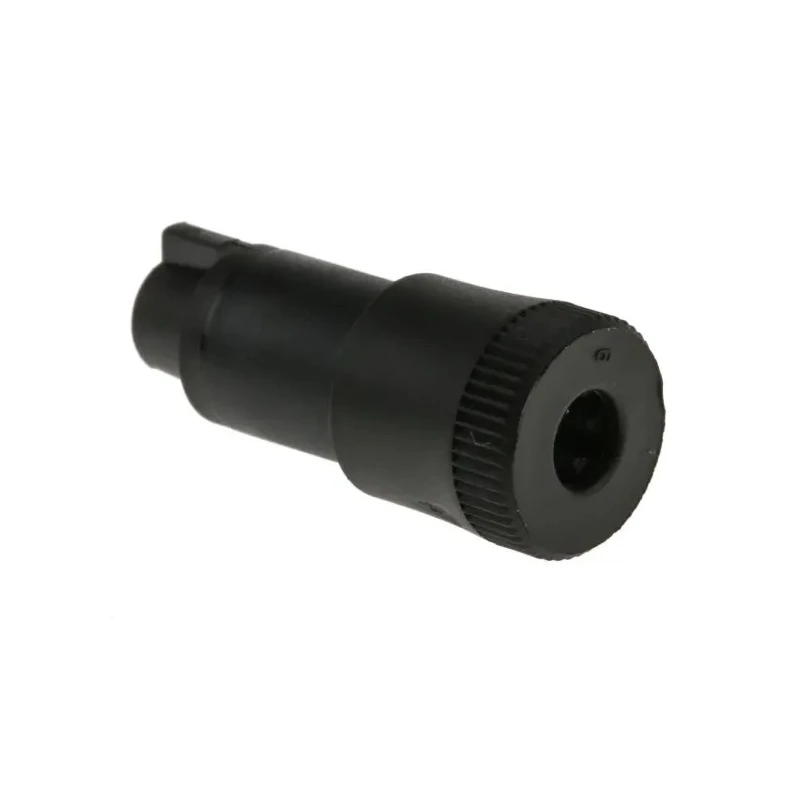

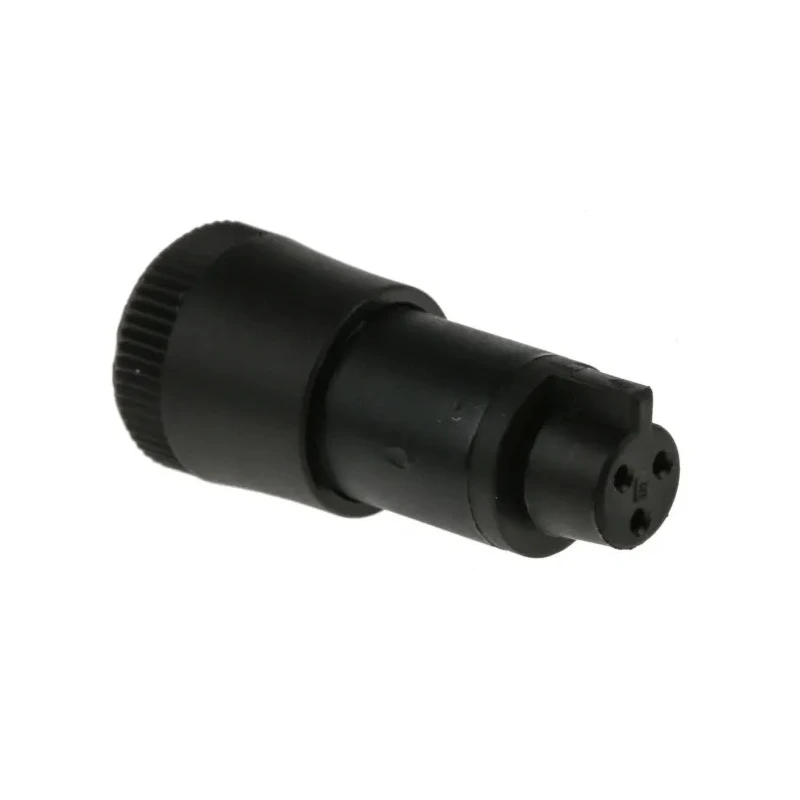

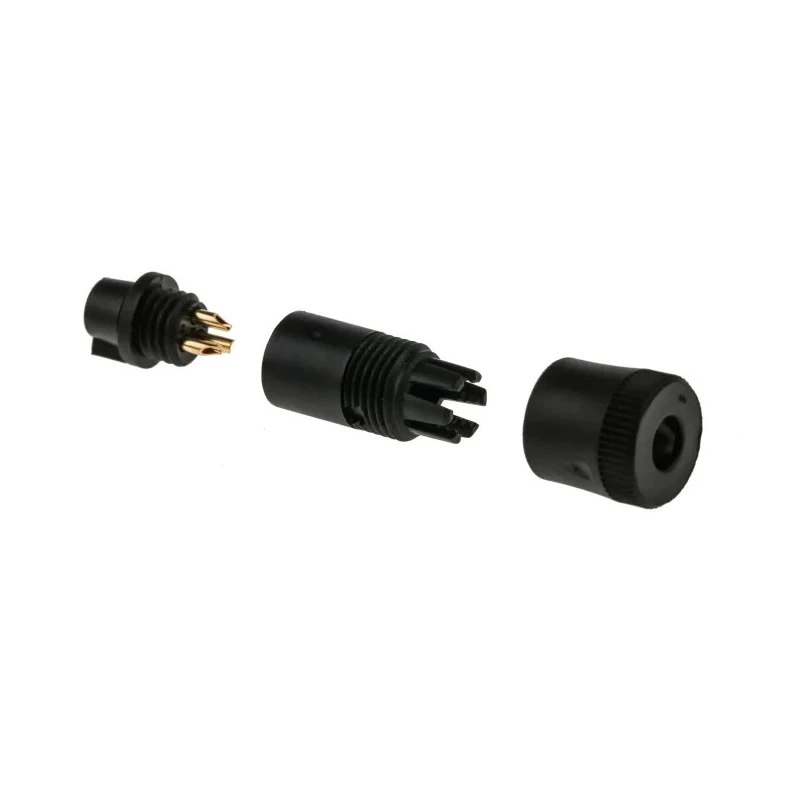

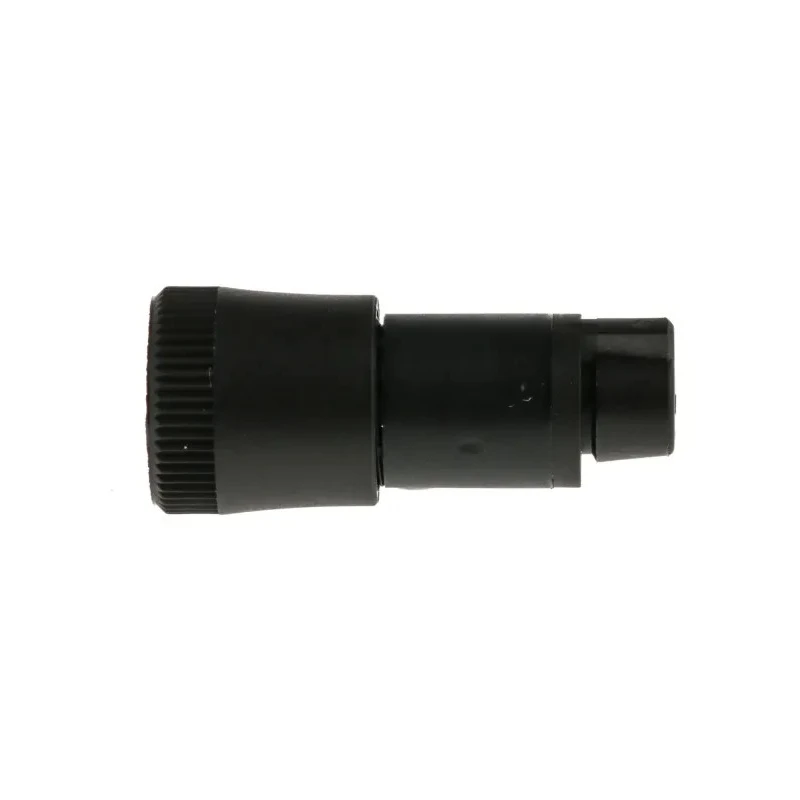

binder Circular Connector Subminiature Cable Socket 3 Contacts Female IP40 719 Series 09-9748-70-03
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | binder |
| Orientation | Straight |
| Current | 3A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | 719 |
| Termination Type | Solder |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 8 mm |
| Mating Type | Plug-In |
| Connector Size | Subminiature |
| Plug/Socket | Socket |
Key Features
- The connector features a subminiature size with straight orientation for compact installations.
- It has a current rating of 3A and voltage rating of 60V for low-power connectivity.
- The socket type connector has female contacts plated with gold for reliable electrical performance.
- Housing is made of durable polyamide material suitable for temperatures from -25°C to 70°C.
- The product includes solder termination type contacts for secure wire connections.
- It offers plug-in mating type with shell size of 8 mm and snap-lock system for quick assembly.
- IP40 rated protection makes it suitable for indoor laboratory, instrumentation and control systems.
- Manufactured in Germany to ensure quality and standards compliance within the 719 series.
Product Description
binder 09-9748-70-03 is a subminiature circular connector designed for cable mounting with 3 female contacts and socket configuration. It belongs to the 719 series and offers a reliable electrical connection with a current rating of 3 amps and a voltage rating of 60 volts, making it suitable for sensitive instrumentation and electronic components.
The connector features a polyamide housing providing lightweight yet durable protection with operating temperature range from -25°C to 70°C. Its solder termination type enables secure contact attachment with a maximum wire size of 0.25 mm². The gold-plated brass contacts ensure excellent conductivity and corrosion resistance.
The 8 mm shell size and snap-in locking system allow for easy mating and quick disconnect, rated at IP40 protection for moderate protection against dust ingress. This connector is ideal for applications in industrial electronics, laboratory instruments, manufacturing equipment, and other commercial or HVAC control environments demanding compact and robust connectivity solutions.
The connector supports plug-in mating type with straight orientation for precise cable routing. Durable polyamide housing caters for harsh but controlled environments. 3 contact points carry current efficiently up to 3A at 60V.
Solder termination simplifies integration into custom wiring assemblies. Gold-plated contacts offer excellent long-term performance and minimal signal loss. Designed and manufactured in Germany to meet stringent quality standards.
This binder 719 Series circular connector meets the needs of professionals requiring reliable small-form-factor connectors for electronic and industrial applications. Explore more circular connectors and electrical components available on EnvMart to suit diverse connectivity requirements.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a current rating of 3A and a voltage rating of 60V, making it suitable for low-power connectivity.
The connector has an IP40 rating, providing moderate protection against dust ingress, suitable for indoor use.
The housing is made of durable polyamide, and the contacts are made of brass with gold plating for reliable electrical performance.
The shell size of this model is 8 mm, designed for compact installations.
This connector features 3 female contacts for electrical connectivity.
It uses a solder termination type for secure wire connections, accommodating a maximum wire size of 0.25 mm².
The operating temperature range is from -25°C to 70°C, allowing it to function in various environments.
This model supports plug-in mating type with a straight orientation for precise cable routing.
It is manufactured in Germany, ensuring compliance with quality standards.
It is ideal for applications in industrial electronics, laboratory instruments, and HVAC control environments.
The gold plating on the contacts ensures excellent conductivity and corrosion resistance, enhancing long-term performance.
The orientation of this connector is straight, facilitating compact installations and precise cable routing.
