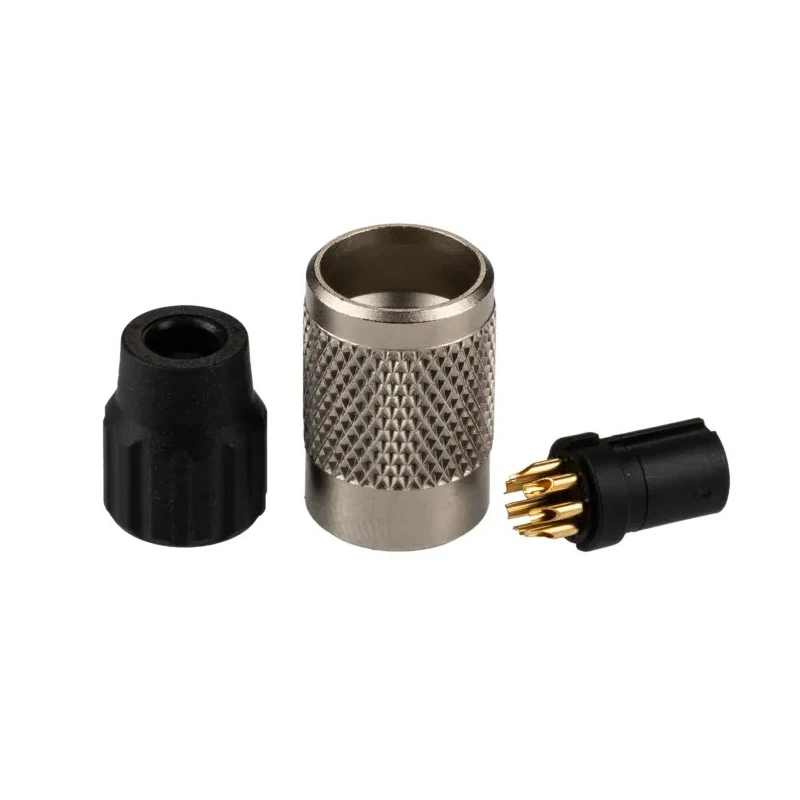

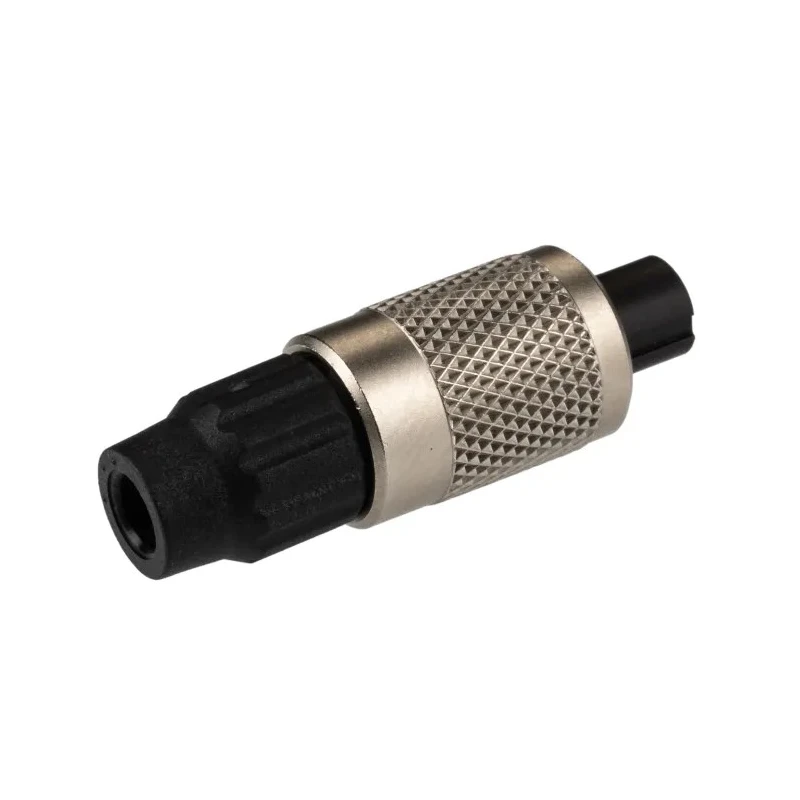

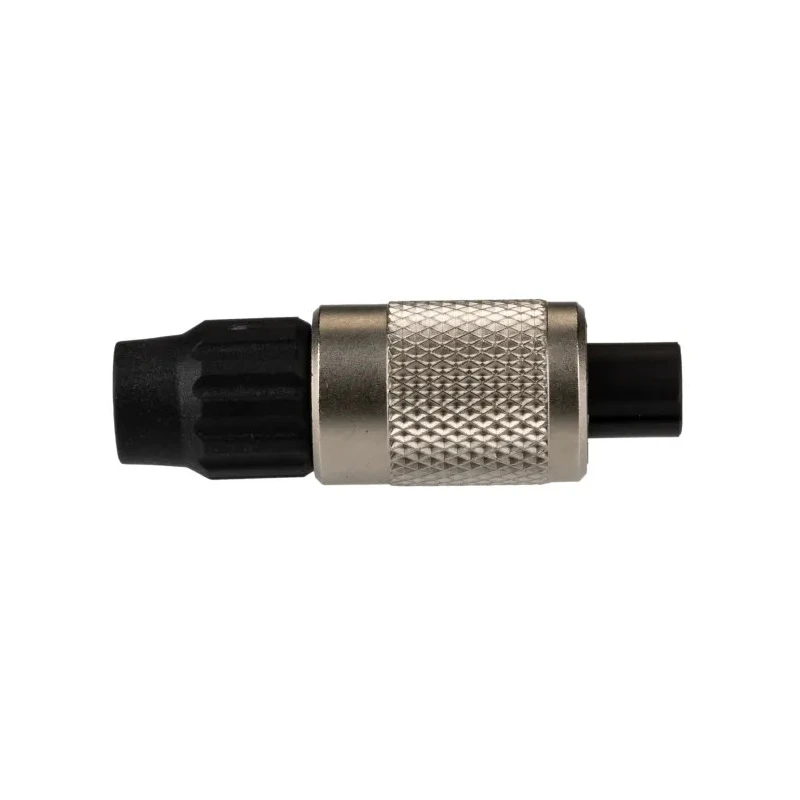

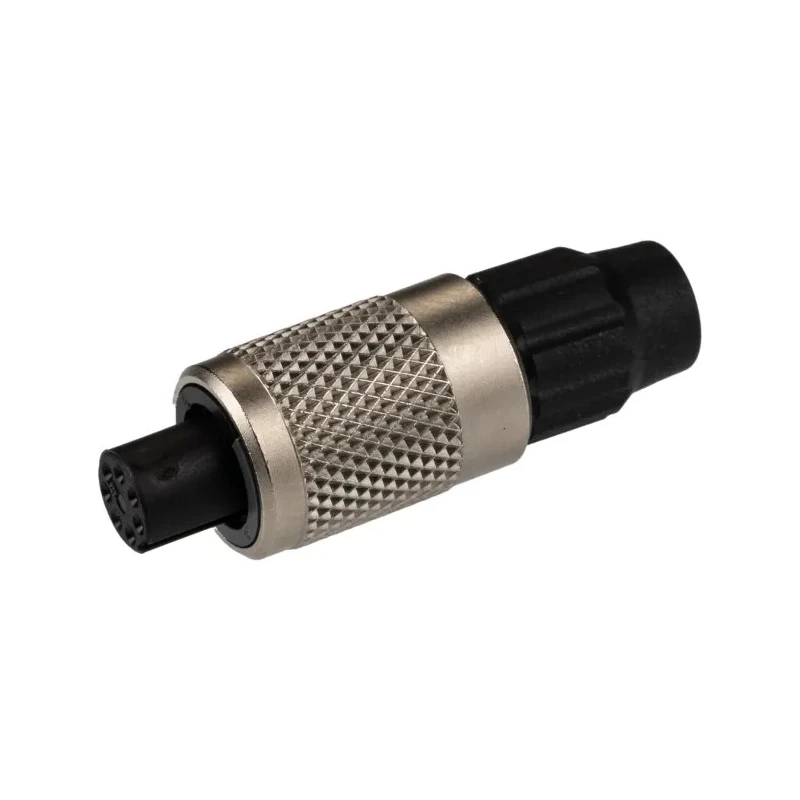

binder Circular Connector, 7 Contacts, Cable Mount, M9 Size, Socket Female, IP40 Protection, 125V, 1A, 711 Series
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V |
| Brand | binder |
| Orientation | Straight |
| Current | 1A |
| Model | IP40 |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Contact Material | Bronze |
| Series | 711 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Shell Size | 11.5 mm |
| Mating Type | Screw-On |
| Connector Size | M9 |
| Plug/Socket | Socket |
Key Features
- Features a subminiature design optimized for industrial applications.
- Constructed with bronze contacts plated in gold for reliable electrical performance.
- Polymer housing ensures durability with integrated strain relief on cable housing.
- Supports screw-on mating for secure connections and easy assembly.
- Operates reliably in temperatures ranging from -40°C to 85°C.
- Provides IP40 ingress protection suitable for environments requiring dust resistance.

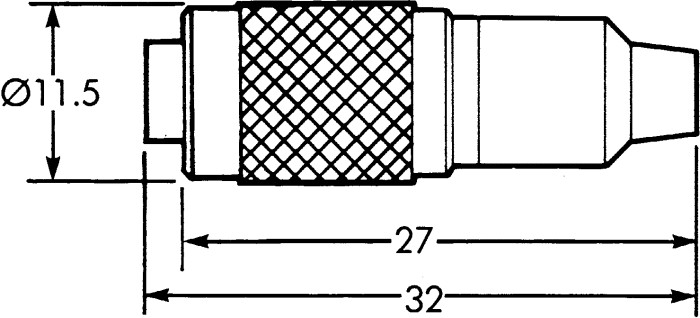

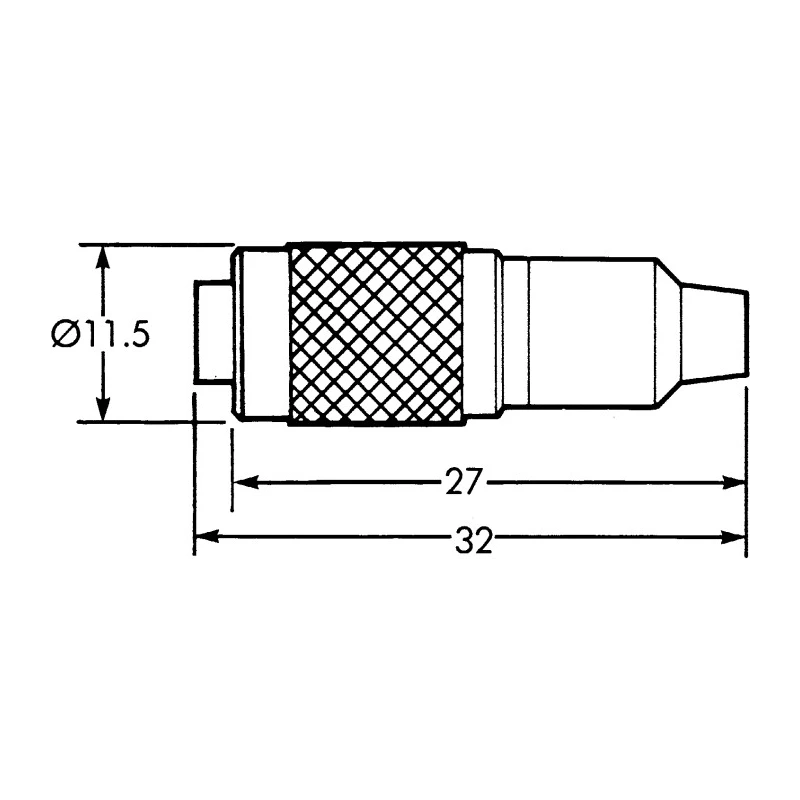

- Shell diameter is 11.5 mm, maintaining compact form factor.
- Connector is designed for straight orientation and solder termination type.
Product Description
binder 99-0476-100-07 Circular Connector is a subminiature, 7-contact female socket designed for cable mounting applications. It conforms to IP40 ingress protection and is part of the 711 Series, rated for electrical operation at 125 volts and 1 ampere.
This M9-sized connector is engineered with precision using bronze contact material with gold plating, ensuring excellent conductivity and corrosion resistance. The polymer housing provides robust mechanical stability while incorporating integrated strain relief to protect the cable termination.
The connector features screw-on mating type with a straight orientation that facilitates secure and reliable connections in demanding industrial environments. Its solder termination type allows for efficient assembly in electronic components.
Operating within a temperature range of -40°C to 85°C, this connector suits varied industrial, manufacturing, and automation applications where compact and reliable cable connectors are required.
Its shell diameter measures 11.5 mm, making it ideal for subminiature connector needs. The gender is female with a socket type designed specifically for cables in power and signal distribution systems.
Subminiature 7-contact female cable mount connector. Gold-plated bronze contacts for enhanced conductivity. Polymer housing with integrated strain relief for durability. Screw-on mating for secure connection. Operates in temperature range -40°C to 85°C.
IP40 ingress protection against dust ingress. Compact M9 size with 11.5 mm shell diameter. Straight orientation with solder termination type.
This connector is widely used in industrial and electronic applications including automation, manufacturing, and power distribution systems. Its reliable design and protection features make it suited for environments requiring frequent connection and disconnection cycles.
Explore additional industrial connectors and related components within the Electronics & Electricals category at EnvMart to complement your system integration needs.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 125 volts.
This connector is rated for a maximum current of 1 ampere.
It operates reliably within a temperature range of -40°C to 85°C.
The housing material is made of polymer, providing mechanical stability.
This model features 7 contacts.
The shell diameter of this connector is 11.5 mm.
It uses a solder termination type for efficient assembly.
The connector has an IP40 ingress protection rating, suitable for dust resistance.
This connector features a screw-on mating type for secure connections.
The contacts in this connector are female, designed for socket applications.
This connector is part of the 711 Series.
This connector is manufactured in Germany.
