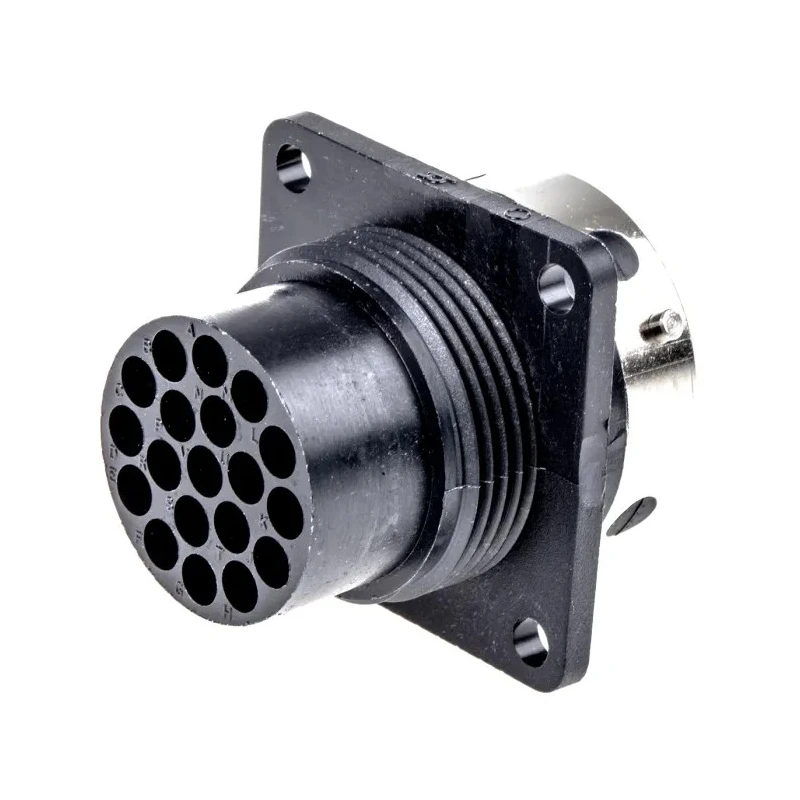

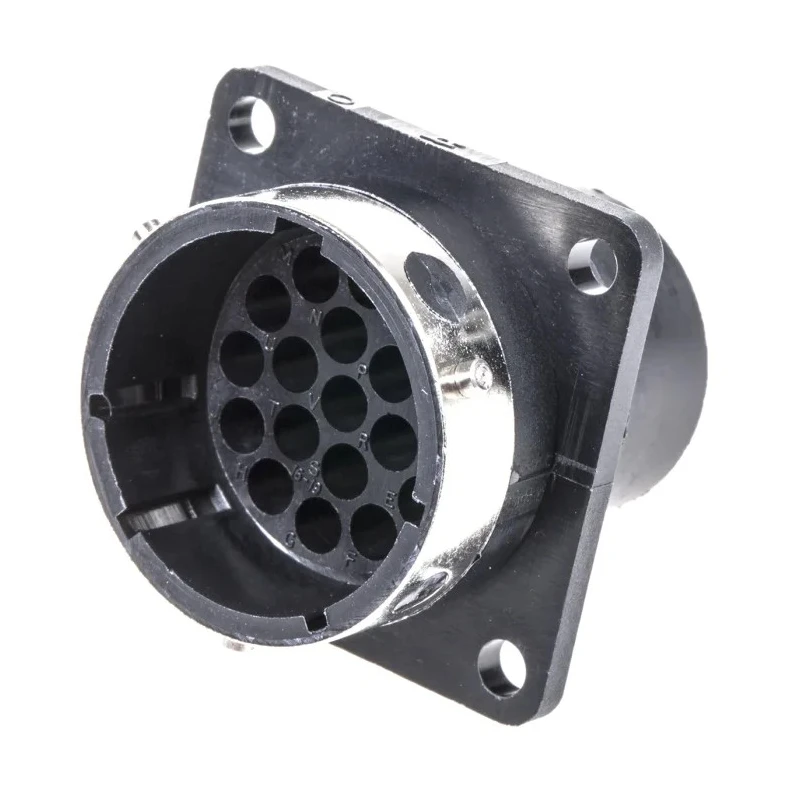

ITT Cannon Circular Connector 19 Contacts Panel Mount Socket Male IP65 Trident Ringlock Series TR1619RMS1NB / 192926-0470

ITT Cannon TR1619RMS1NB / 192926-0470 circular connector is a high-quality industrial connector designed for demanding environments. This panel mount connector features 19 contacts, a socket plug type with male contact gender, and belongs to the robust Trident Ringlock Series. It is rated at 16A current and 250V voltage, with an IP65 ingress protection rating when mated, making it ideal for harsh industrial use.

The connector includes a black nylon UL94 V-0 flame-retardant polymer housing that ensures durability and resistance to mechanical stresses. Its metal bayonet locking system allows quick, secure mating and unmating with a single rotation of the coupling nut. The Ringlock series supports both two-piece and three-piece crimp contacts that are fully interchangeable for fast field repairs, reducing downtime.

This connector operates reliably across a wide temperature range from -25°C to 105°C and withstands thermal and physical shocks. The contacts are made from copper alloy with nickel plating to ensure excellent electrical performance and corrosion resistance. The shell size 16 design and straight orientation facilitate easy panel mounting in industrial equipment.

Applications for this connector include industrial electronics, robotic systems, instrumentation, machine building, process control, industrial automation, and manufacturing equipment. The connector’s IP65 rating ensures protection against dust ingress and water exposure when mated with the appropriate counterpart. The Trident Ringlock connectors provide a dependable connection solution in tough environments requiring robust performance.

The package contains the panel mount socket connector with the specified 19-contact configuration suited for male contacts. This connector is manufactured in Hungary under strict quality standards, ensuring it meets industrial requirements for performance and reliability.

Features a metal bayonet locking system for secure connection. Black nylon UL94 V-0 housing for flame resistance and rugged use. Supports 16A current and 250V rated voltage applications. Offers IP65 ingress protection when mated, blocking dust and water.

Wide operating temperature range from -25°C to 105°C. Nickel plated copper alloy contacts for reliable conductivity. Shell size 16 with straight orientation for panel mounting. Fully interchangeable contacts simplify maintenance and repairs.

Ideal for industrial automation, robotics, and process control. Manufactured in Hungary ensuring high-quality standards. Browse our Electronics Components category for more Industrial Circular Connectors and related products at EnvMart.
