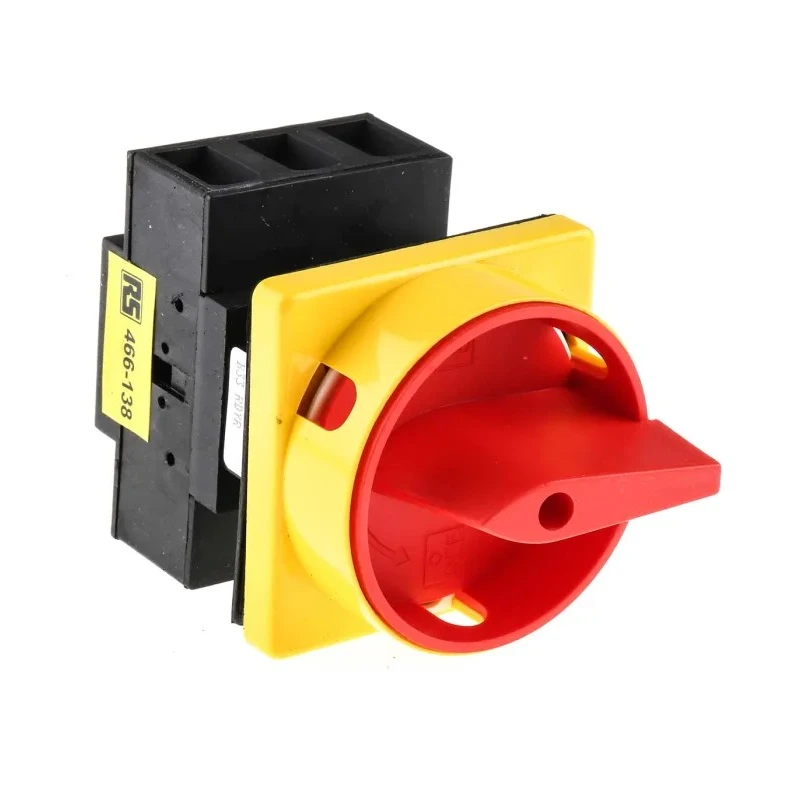

RS PRO 3-Pole Panel Mount Isolator Switch, IP65, 63A, 45 kW IP65

RS PRO IP65 3-Pole Panel Mount Isolator Switch IP65 is a high-quality non-fused isolator switch designed for use in low voltage switchgear such as power distribution, load isolation, and motor start-stop circuits. It provides secure circuit isolation and is suitable for industrial, commercial, electrical, and automation applications where safety and reliability are paramount.

This isolator switch supports three poles and is panel mountable, featuring a compact design for easy integration into electrical panels. It offers a switching current rating of 63A and power handling of 45 kW at 750V AC, making it suitable for robust three-phase electrical systems. The switch includes a padlock facility for added security during maintenance or shutdown operations.

With an IP65 rating, this isolator switch is protected against total dust ingress and water jets, ensuring reliable performance even in challenging environmental conditions. It operates safely across a temperature range from -25°C to 40°C, and incorporates forced-open contacts with terminal screws in the open position, enhancing operator safety.

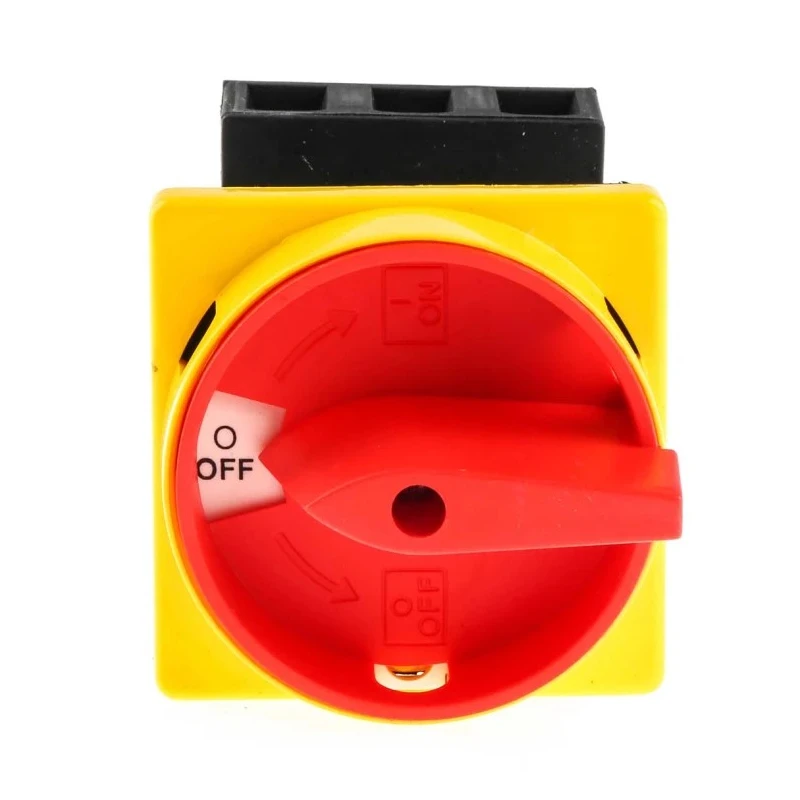

The rotary handle with a 90° switching angle and red color provides clear visual indication of switch position. It is designed for panels up to 3mm thickness with a minimum panel depth of 102mm and maximum 117mm. This product complies with safety and environmental standards including UL, RoHS, IEC, and EN.

Ideal for use in industrial control panels, electrical distribution, manufacturing plants, HVAC systems, and other commercial electrical installations requiring robust circuit isolation on three-phase lines. It ensures safe operation of electrical equipment by physically isolating circuits.

Designed for panel mounting with padlock compatibility for added safety. Rated IP65 for total dust ingress protection and moisture resistance. Handles switching current of 63 amperes and switching power of 45 kW. Features a red rotary handle with 90° switching angle for secure isolation.

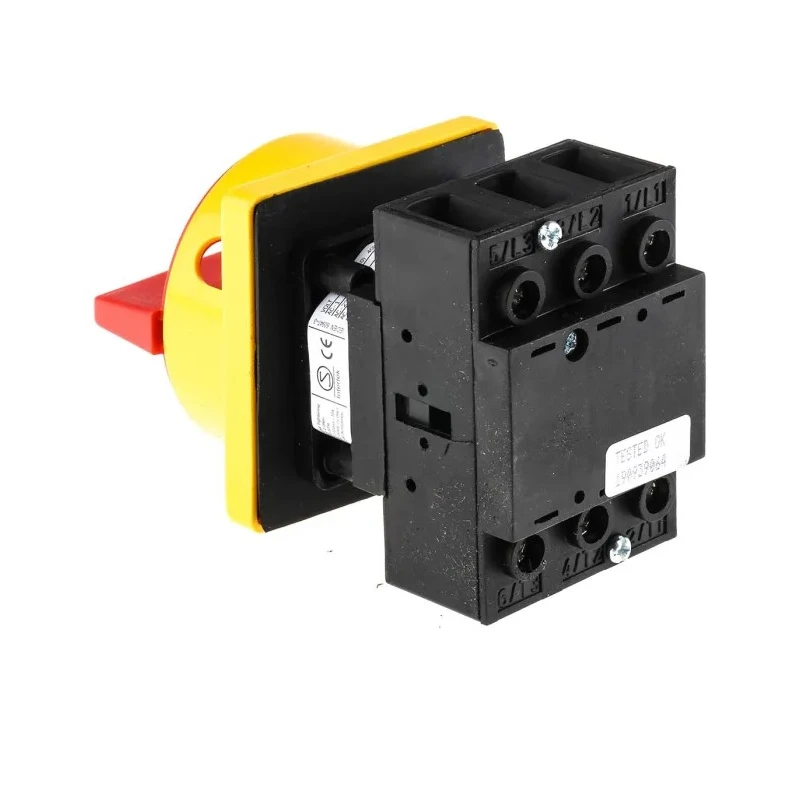

Suitable for three-phase electrical systems and power distribution equipment. Compact design with dimensions 175mm length, 125mm width, and 90mm depth. Terminal type screw with forced-open contacts ensuring safe isolation during maintenance.

Operating temperature range from -25°C to 40°C for harsh environments. Complies with UL, RoHS, IEC and EN standards, made in India. Explore more Isolator Switches and electrical components in the Electronics & Electricals category at EnvMart for your industrial and commercial applications.
