TE Connectivity PCB Power Relay 24V DC Coil 6A Switching Current 4PDT PT571024 9-1419111-3

TE Connectivity PT571024 9-1419111-3 is a high-quality PCB Power Relay designed for industrial and electronic applications requiring reliable switching performance. It operates with a coil voltage of 24V DC and supports a switching current of 6A, suitable for various power relay requirements including automation and control circuits.

This relay features a 4PDT (Four Pole Double Throw) contact configuration, mounted on PCB and equipped with solder terminals for robust and secure connections. The relay's switching power capacity is rated at 1.5kVA and can handle AC voltages up to 240V, making it ideal for moderate power loads.

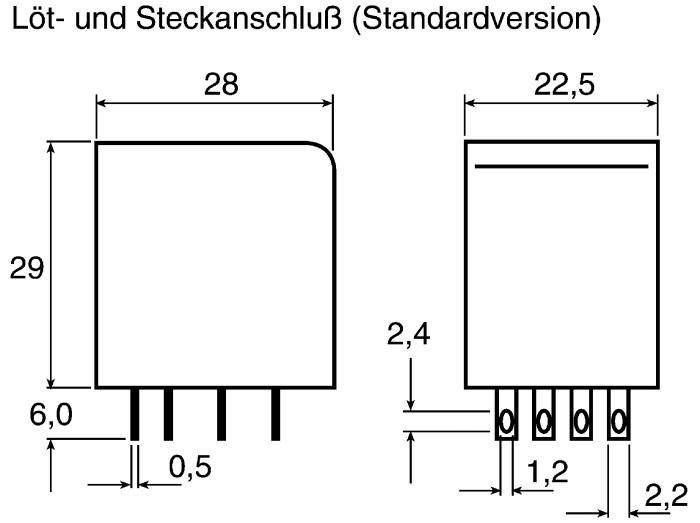

The device is engineered to operate efficiently across a broad temperature range from -40°C to 70°C, ensuring dependable performance in differing environmental conditions. Its compact form factor with dimensions W22.5mm x L28mm x H30mm facilitates space-saving designs in circuit assemblies.

Constructed with Silver Nickel Alloy contacts, the relay assures high conductivity and long-term durability. The PT series includes a mechanical indicator and manual lockable test facility, allowing manual testing and verification. The coil resistance of 777Ω supports stable coil control.

With electrical isolation between coil and contacts rated at 2.5kV AC, this relay offers enhanced safety for sensitive control circuits. It complies with major industry standards and approvals such as VDE, UL, RoHS, and IEC, promising quality and regulatory conformity.

This power relay is widely used in industrial automation, electrical switching applications, HVAC systems, manufacturing machinery control, and other sectors requiring reliable relay switching components.

Choose TE Connectivity PT571024 9-1419111-3 for your PCB mounted power relay needs to ensure durable and precise operation in demanding applications. Designed for PCB mounting with solder terminals for secure connections.

Supports a switching AC voltage of 240V and switching power of 1.5kVA. Operates reliably in temperatures ranging from -40°C to 70°C. Silver Nickel Alloy contact material ensures durability and performance. Features a mechanical indicator and manual lockable test facility for easy operation.

Coil resistance measured at 777Ω for precise coil performance. Compact dimensions measuring approximately 22.5mm width, 28mm length, and 30mm height. Isolation between coil and contact rated at 2.5kV (AC) providing safe electrical separation.

Meets industry standards including VDE, UL, RoHS, and IEC approvals. Explore a wide range of TE Connectivity Power Relays and other electrical components at EnvMart for comprehensive industrial and professional solutions.
