RS PRO RJ22 Connector Male Cable Straight 1 Port 4 Way RJ22

Free Delivery in India | Lowest Global Shipping Charges

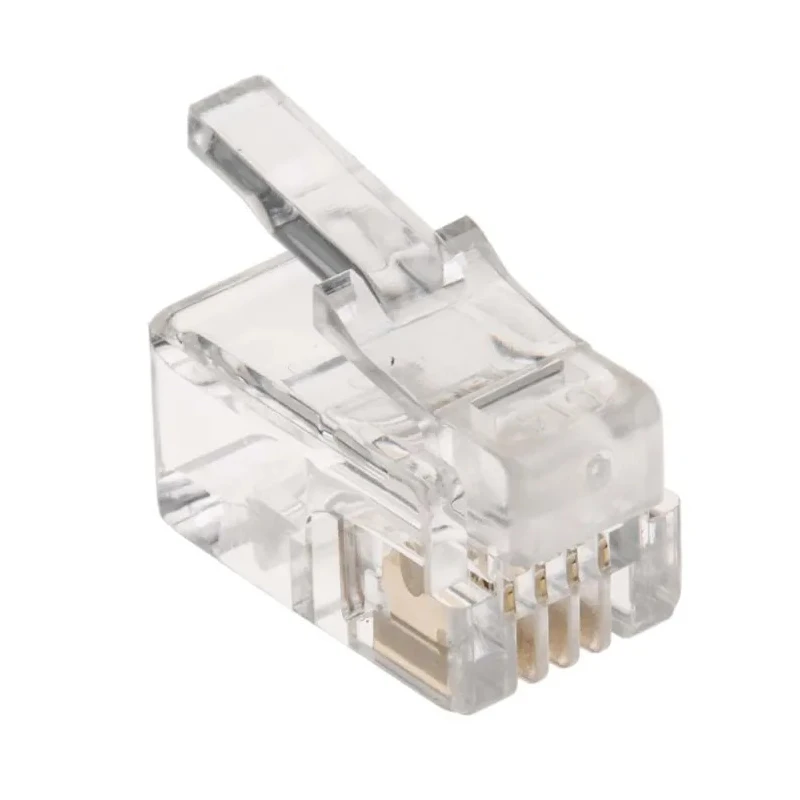

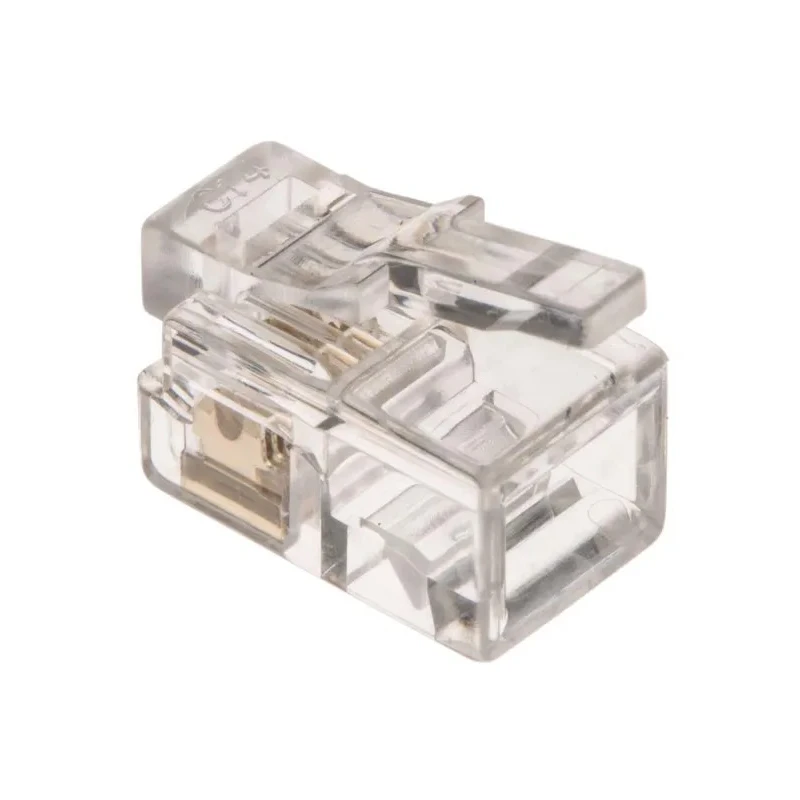

RS PRO RJ22 Connector Male Cable Straight 1 Port 4 Way RJ22

Name: RS PRO RJ22 Connector Male Cable Straight 1 Port 4 Way RJ22
Brand: RS PRO
SKU: 119318
Price: 0.28 USD
Availability: InStock



Category Ethernet Connectors Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Orientation	Straight
Length	6.6mm
Model	RJ22
Depth	12.3mm
Connector Type	Modular Jack
Number Of Ways	4
Width	7.61mm
Mount Type	Cable
Contact Material	Phosphor Bronze
Number Of Ports	1
Contact Plating	Gold
Connector Gender	Male
Ethernet Connector Type	RJ22
COMMSCOPE Male RJ22 Modular Plug Connector, Cable Mount, Cat3Brand	COMMSCOPE
RS PRO Ethernet Cable Male, Cable Unshielded Straight 4 Port 4 WayBrand	RS PRO

Key Features

Features a single port with four-way wiring to support additional lines.
Constructed with phosphor bronze contacts plated in gold for corrosion resistance.
Compact dimensions of 6.6 mm length by 12.3 mm depth and 7.61 mm width.
Capable of transmitting data rates up to 24 Mbit/s, suitable for fax machines and telephones.
Rated for an output current of 1.5 A and voltage between 30-42 VAC.
High-quality polycarbonate housing provides durability and mechanical resilience.
Complies with RoHS standards restricting hazardous materials.
Manufactured in Taiwan, Province of China.

Product Description

RS PRO RJ22 Connector Male Cable Straight 1 Port 4 Way RJ22 modular jack connector with 30-42 VAC voltage rating and 1.5 A output current, designed for efficient cable mounting in networking and telecom applications.

This male RJ22 connector features a straight orientation and a compact form factor, measuring 6.6 mm in length, 12.3 mm in depth, and 7.61 mm in width. It supports a single port with four wiring channels, making it ideal for applications requiring additional telephone or modem lines, such as ADSL modem connections and fax machine interfaces.

The contacts are made from phosphor bronze and plated with gold to ensure corrosion resistance and stable conductivity. Housed in a durable polycarbonate body, this connector delivers excellent mechanical reliability and resilience under typical conditions in commercial and industrial environments.

Compliant with RoHS directives and electrostatic discharge standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, it offers protection against hazardous substances and static damage. This connector facilitates data transmission speeds up to 24 Mbit/s, allowing dependable performance in office or home networking setups.

Single port with four-way wiring for extra line capacity. Durable phosphor bronze contacts with gold plating. Compact dimensions for easy cable mounting. Rated for 1.5 A current and 30-42 VAC voltage. Robust polycarbonate housing enhances durability.

RoHS compliant and meets electrostatic discharge standards. Ideal for ADSL modems, fax machines, and telephones.

This RS PRO RJ22 Connector supports a wide range of networking and telecom cable applications in industrial, commercial, and laboratory environments. Its build quality and standardized compliance make it a reliable component for system integrators and communication equipment manufacturers.
