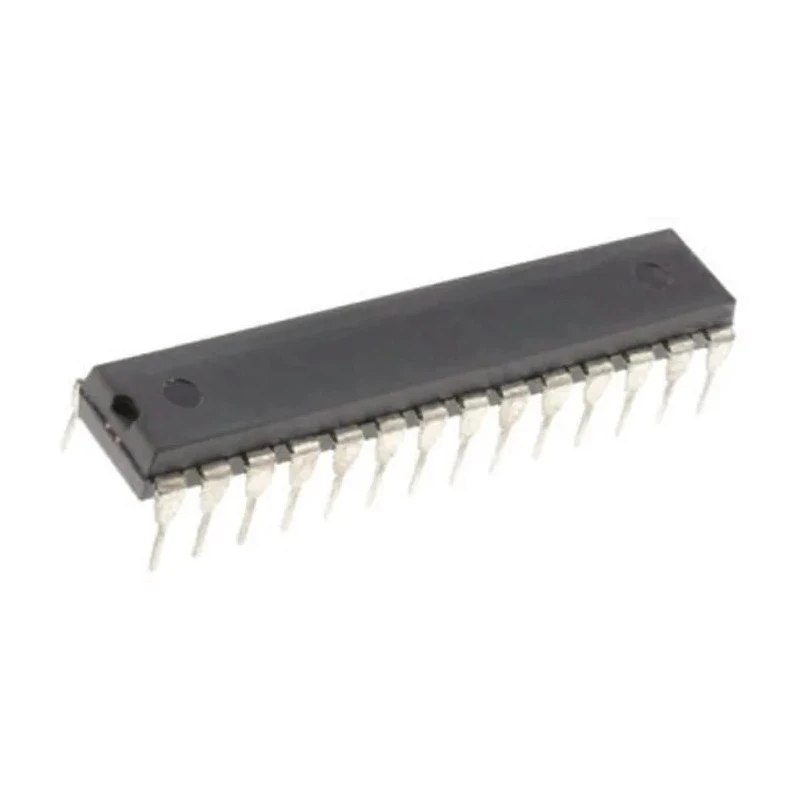

Microchip 8-bit PIC16C Microcontroller 4 MHz EPROM 7kB Program Memory 28-Pin SPDIP PIC16C63A-04/SP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.43mm |
| Length | 35.18mm |
| Model | PIC16C63A-04/SP |
| Width | 7.49mm |
| Mount Type | Through Hole |
| Series | PIC16C |
| Maximum Operating Temperature | 70°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 192bit |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 4V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 22 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 0 |
| Program Memory Type | EPROM |
| Microchip PIC16C63A/JW MicrocontrollerBrand | Microchip |
Key Features
- Operates at a maximum clock frequency of 4 MHz.
- Features 7kB EPROM program memory for legacy applications.
- Incorporates 22 programmable I/O pins in a through-hole SPDIP package.
- Operating voltage ranges from 4 V to 5.5 V with 1W power dissipation.
- Designed for a temperature range of 0°C to 70°C suitable for standard electronic environments.
- Based on RISC architecture with 35 14-bit instructions and 8-level hardware stack.
- Includes 192 bits of RAM for data storage and processing.
- Compliant with RoHS standards and automotive ISO/TS 16949.
Product Description
Microchip PIC16C63A-04/SP is a new 8-bit microcontroller featuring the PIC16C architecture. It offers a 4 MHz maximum clock frequency and 7kB EPROM program memory, packaged in a 28-pin through-hole SPDIP. This microcontroller supports 22 programmable I/O ports and operates with a supply voltage ranging between 4 V and 5.5 V, dissipating up to 1W power. The device runs within an operating temperature range of 0°C to 70°C and complies with RoHS and automotive ISO/TS 16949 standards.
The PIC16C63A/65B/73B/74B family employs a mid-range RISC architecture with an 8-level hardware stack and supports 35 14-bit instructions, delivering up to 5 MIPS. It offers 192 bits of RAM and integrates various peripherals, including 3 timers, synchronous serial ports (SPI and I2C), and a USART for serial communication. The microcontroller’s EPROM program memory ensures compatibility with legacy systems, although it has been succeeded by Flash-based PIC16F variants for new designs.
This device is suitable for embedded applications requiring stable and robust 8-bit microcontrollers with precise timing and flexible I/O. The package dimensions are approximately 35.18 mm length, 7.49 mm width, and 3.43 mm height.
Microchip PIC16C63A-04/SP finds use in industrial electronics, automotive systems, power and control modules, and educational purposes involving legacy PIC microcontroller programming and development.
Operates at a maximum clock frequency of 4 MHz. Features 7kB EPROM program memory for legacy applications. Includes 192 bits of RAM for data processing. Has 22 programmable I/O pins in a 28-pin SPDIP package. Operating voltage from 4 V to 5.5 V with 1W power dissipation.
Supports serial communications: SPI, I2C, and USART interfaces. Includes 3 timers for timing and event counting. Complies with RoHS and automotive ISO/TS 16949 standards. Designed for temperature operation between 0°C and 70°C.
RISC architecture with 35 14-bit instructions and an 8-level stack. Find additional Microchip microcontrollers and components in EnvMart's dedicated Semiconductor and Microcontroller categories to support your embedded development projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Microchip PIC16C63A-04/SP operates at a maximum clock frequency of 4 MHz.
It features 7kB of EPROM program memory, suitable for legacy applications.
The operating voltage for this microcontroller ranges from 4 V to 5.5 V.
This model incorporates 22 programmable I/O pins.
It is designed to operate within a temperature range of 0°C to 70°C.
The device is based on a RISC architecture, supporting 35 14-bit instructions and an 8-level hardware stack.
The package dimensions are approximately 35.18 mm in length, 7.49 mm in width, and 3.43 mm in height.
It complies with RoHS standards and the automotive ISO/TS 16949 standard.
This model supports SPI, I2C, and USART interfaces for serial communication.
It includes 3 timers for timing and event counting.
The microcontroller has 192 bits of RAM for data storage and processing.
The maximum power dissipation for this microcontroller is 1W.
