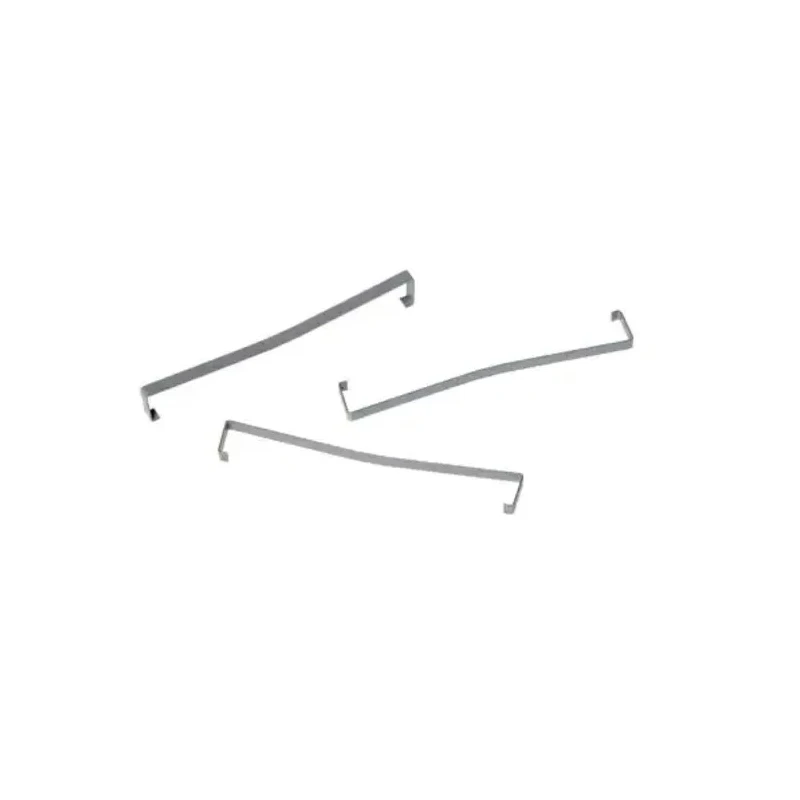

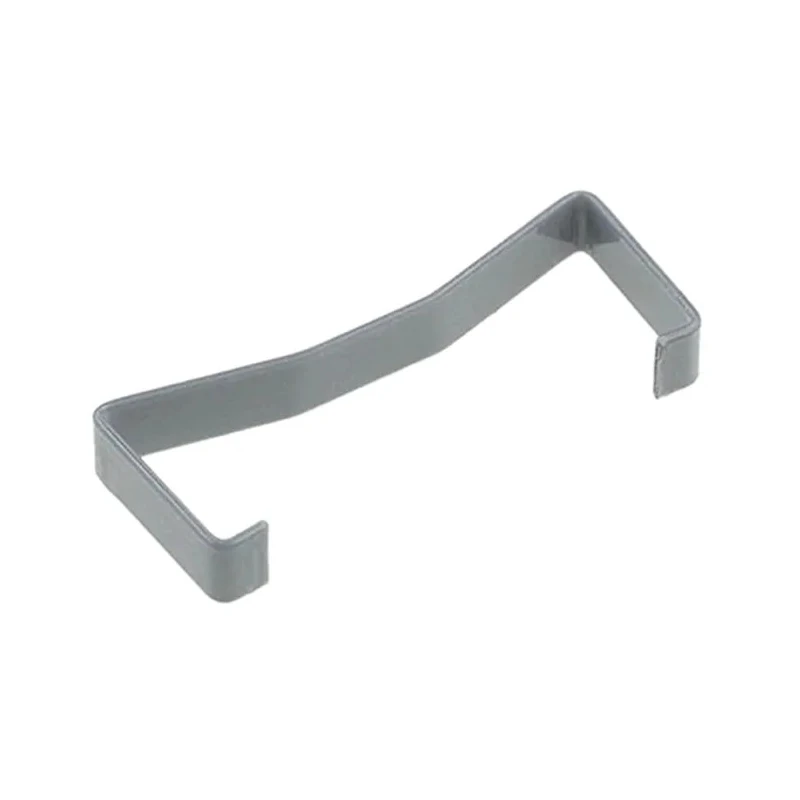

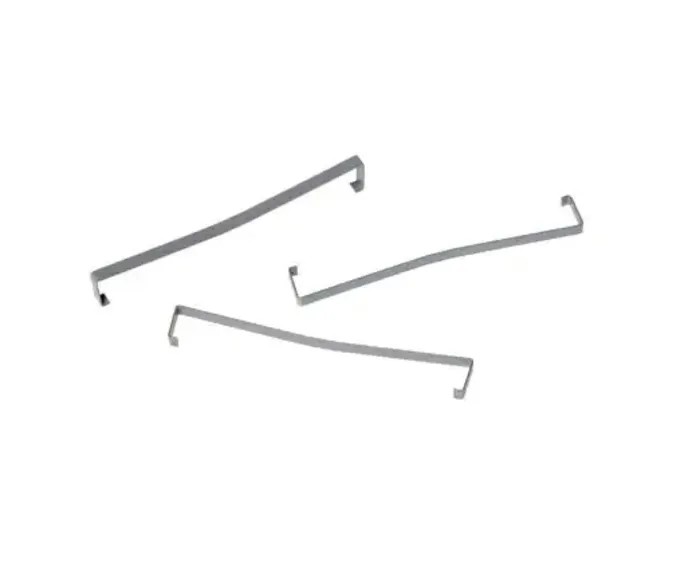

3M 2500 Series Male Strain Relief Clip Stainless Steel Body with PUR Coating for 2500 Series Connectors 3505-8026

3M 3505-8026 Male Strain Relief Clip is engineered to provide secure strain relief for 2500 Series PCB connectors, supporting efficient and reliable electrical connections. This stainless steel clip with a polyurethane coating minimizes disruption caused by vibration by firmly locking connector contacts in place. Designed for use with 2500 Series low profile headers, it can hold up to 26 contacts, offering comprehensive protection for multiple connections simultaneously.

The clip's 2.8mm thickness allows for easy installation even in compact PCB layouts, while its robust stainless steel structure ensures durable impact resistance. The insulating PUR coating enhances electrical safety by eliminating risks of current loss, making it suitable for critical electronics applications. This strain relief clip supports current ratings up to 1.75 amperes and operates reliably within a broad temperature range of -55°C to 105°C, ideal for various industrial, control, and automation environments.

The contact elements are made of copper alloy with tin, nickel, and gold plating, ensuring excellent conductivity and corrosion resistance. This component is manufactured in Germany, reflecting stringent quality manufacture. It comes packaged as a pack of 10 clips, facilitating convenient procurement for volume usage.

Applications include securing connections in industrial automation, control devices, and data management systems, where maintaining reliable signal continuity is crucial. Note that these clips are not compatible with connectors that have integrated strain relief mechanisms, ensuring that users select the appropriate component for their design.

Hard-wearing stainless steel body ensures durable impact protection. 2.8mm thickness allows for easy assembly in compact PCB arrangements. Polyurethane insulating coating prevents electrical current leakage. Compatible with 2500 Series headers supporting up to 26 contacts.

Rated for continuous current of 1.75A for robust signal transmission. Operates in extreme temperatures from -55°C to 105°C. Copper alloy contact material with tin, nickel, and gold plating maximizes conductivity. Manufactured in Germany guaranteeing high quality standards.

Pack of 10 clips offers convenience for multiple installations.

This 3M strain relief clip is an essential component for electronic assemblies requiring secure locking of connector contacts against movement and vibration, ensuring system integrity in industrial, manufacturing, and data management applications. Explore more high-quality connectors and accessories in the Electronics Components category on EnvMart.
